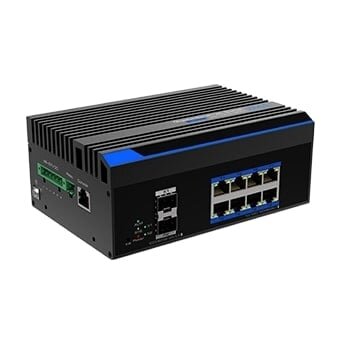

8 port 8 PoE port Switch UTEPO UTP7308GE-BTPoE

Model

UTP7308GE-BTPoE

Physical Port

Downlink Ports

8*10/100/1000Base-T (PoE)

Uplink Ports

2*1000Base-X SFP Slots

Alarm Output

One channel relay alarm output, 1A@DC 12V, 2 cores, 5.08mm terminal

LED Indicator

8*Link/Act (Green), 8*PoE (Orange), 1*PWR (Red)

Switching Feature

Standard and Protocols

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1D, IEEE 802.1af/at/bt

Switching Capacity

20Gbps / non-blocking

Packet Forwarding Rate

14.9Mpps

Packet Buffer

4Mbit

MAC Address Table

16K

Jumbo Frame

10K bytes

PoE

PoE Standard

802.3af/at/bt(PSE)

PoE Line Pair

1/2/4/5(+)，3/6/7/8(-)

PoE Output Power

PoE output power for singe port≤90W, Total PoE power budget≤480W

Power Supply

Input Voltage

DC 48V-57V

Power Consumption

≤20W (Not inlcude PoE)

Environment

Surge Immunity

6KV Execute: IEC61000-4-5

ESD Immunity

6KV: Contact discharge

15KV: Air discharge

Execute: IEC61000-4-2

IP Grade

IP40

Operating Temperature

-10-55℃

Storage Temperature

-40-85℃

Operating Humidity

5%-95% (Non-condensing)

Physical Parameter

Dimension（L×W×H）

159mm×110mm×46.5mm

Weight

1558g±20g

Material

Aluminium alloy

Installation

DIN rail / Wall mounted

Number of Fans

N/A

Certification

CE, FCC

Software Specification

PoE Management

Perpetual PoE: The PoE is kept enabled and supplying power to PD even if you press the “reboot” for the switch, which reduces the problem of PD power failure caused by restart.

Support total power consumption control

Support PoE ON/OFF

Support priority of port output power

Port

Support port isolation and rate settings

Support port storm suppression

Support IEEE802.3x flow control

Support port adaptation and traffic statistics

LACP

Static LACP, Dynamic LACP

VLAN

Support 4K VLAN

Support 802.1Q Protocol-based VLAN

Support Port-based VLAN

QoS

Support QoS congestion management

Support 8 hardware priority queues

Support WRR

Support 820.1P and DSCP priority

ERPS

STP/RSTP

Fast-ring

DHCP

Support DHCP server

Support DHCP snooping

Support DHCP relay

IGMP

Support IGMP SnoopingV1/V2

Security

Support RADIUS authentication

Support 802.1X authentication

System Management

Support WEB management, configuration through Telnet, SSH

Support FTP/TFTP/HTTP upgrading

Support MAC address tables and traffic statistics

Support IP address, DNS server change

Support username& password change

Support history record, journal management

Support system settings backup

Support factory default settings and restart
