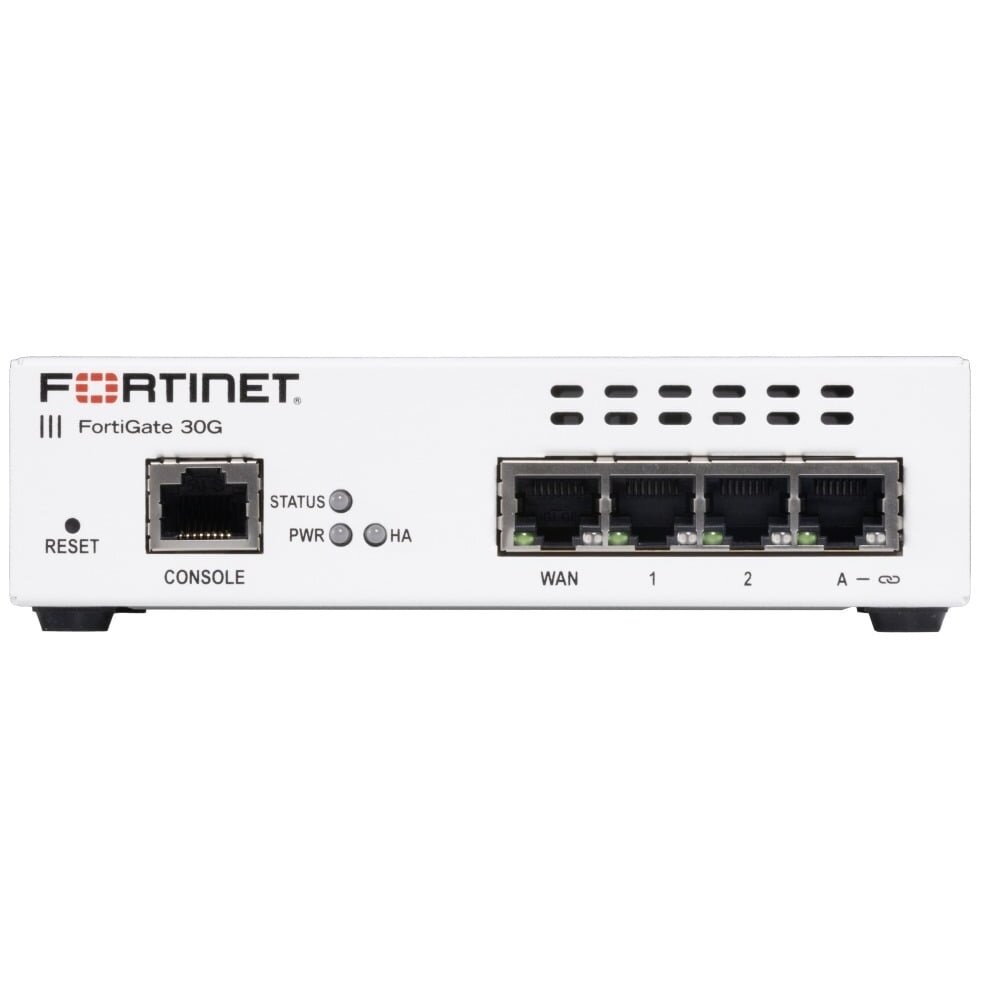

  •   7-port firewall Fortinet FortiGate FS-30G (3.9Gbps, VPN, NGFW)

    7-port firewall Fortinet FortiGate FS-30G (3.9Gbps, VPN, NGFW)

    Inquire about this item
    Price 493.96 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Fortinet
    • General
    • Model VersionFortiGate 30G
    • Hardware Accelerated GE WAN Port1
    • Hardware Accelerated GE RJ45 Ports2
    • Hardware Accelerated GE RJ45 FortiLink Port (Default)1
    • USB Ports—
    • Console Port (RJ45)1
    • Trusted Platform Module (TPM)–
    • Bluetooth Low Energy (BLE)—
    • Wireless Interface—
    • IPS Throughput800 Mbps
    • NGFW Throughput570 Mbps
    • Threat Protection Throughput500 Mbps
    • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)4 / 4 / 3.9 Gbps
    • IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)4 / 4 / 3.9 Gbps
    • Firewall Latency (64 byte UDP packets)2.87 μs
    • Firewall Throughput (Packets Per Second)5.85 Mpps
    • Concurrent Sessions (TCP)600,000
    • New Sessions/Second (TCP)30,000
    • Firewall Policies2000
    • IPsec VPN Throughput (512 byte)3.5 Gbps
    • Gateway-to-Gateway IPsec VPN Tunnels200
    • Client-to-Gateway IPsec VPN Tunnels250
    • SSL-VPN Throughput—
    • Concurrent SSL-VPN Users (Tunnel Mode)—
    • SSL Inspection Throughput (IPS, avg. HTTPS)400 Mbps
    • SSL Inspection CPS (IPS, avg. HTTPS)260
    • SSL Inspection Concurrent Sessions (IPS, avg. HTTPS)55,000
    • Application Control Throughput (HTTP 64K)830 Mbps
    • CAPWAP Throughput (HTTP 64K)TBA Gbps
    • Virtual Domains (Default / Maximum)Not Supported
    • Maximum Number of FortiSwitches Supported8
    • Maximum Number of FortiAPs (Total / Tunnel Mode)16 / 8
    • Maximum Number of FortiTokens500
    • High Availability ConfigurationsActive-Passive, Active-Active
    • Dimensions (mm)40.5 × 142 × 160
    • Dimensions (inches)1.6 × 5.6 × 6.3
    • Weight1.3 lbs (0.6 kg)
    • Rack Mount TypeNA
    • Wall MountableOptional
    • Form FactorDesktop
    • Power Rating12VDC, 2A
    • Power SourceExternal DC adapter (100–240V AC, 50/60 Hz)
    • Maximum Current100V/0.11A, 240V/0.055A
    • Power Consumption (Average / Maximum)6.8 W / 8.2 W
    • Heat Dissipation28 BTU/hr
    • Operating Temperature0° to 40°C (32° to 104°F)
    • Storage Temperature-35° to 70°C (-31° to 158°F)
    • Operating Humidity20% to 90% non-condensing
    • Operating Altitude10,000 ft (3048 m)
    • Noise LevelN/A
    • ComplianceFCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
    • CertificationsUSGv6 / IPv6
