  •   6 Ports Switch CUDY FS106P (Unmanaged)

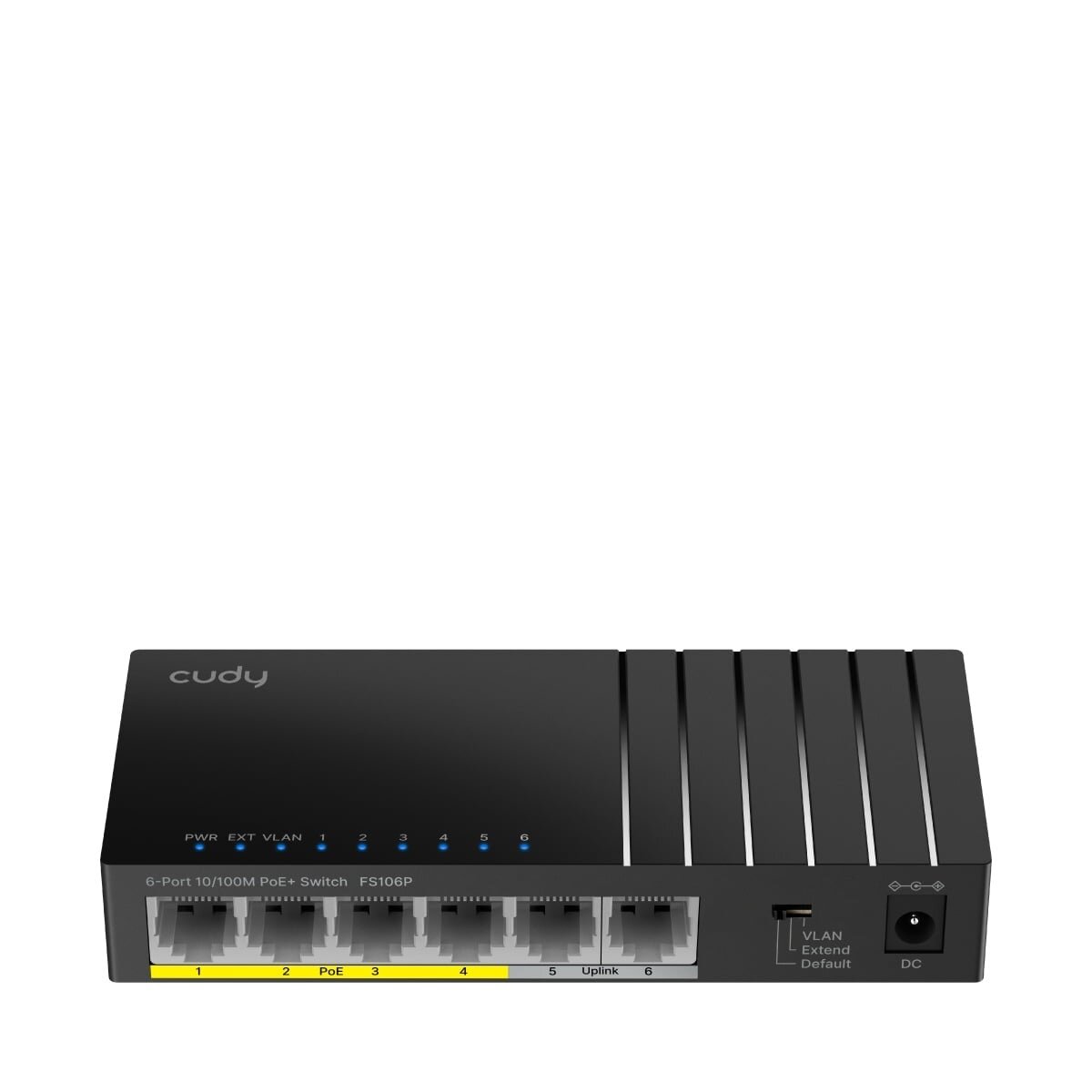

    6 Ports Switch CUDY FS106P (Unmanaged)

    Inquire about this item
    Price 19.70 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • Model versionFS106P 1.0
    • Interfaces10/100 Mbps RJ45 Ports 6, 10/100 Mbps RJ45 PoE Ports #1~#4
    • Max Power on a Single PoE Port30W
    • PoE Port NotesThe PoE ports comply with IEEE 802.3at/af standards.
    • PoE PriorityIntelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
    • Extend Mode Ports#1~#4
    • VLAN Mode Ports#1~#4
    • LEDPower, Link/ACT of Each Ethernet Port, Extend Status, VLAN Status
    • Power InterfacesDC Jack
    • Physical ButtonsVLAN/Default/Extend DIP Switch
    • Physical Buttons NoteThe PoE Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client.
    • PerformanceMax Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
    • Copper Speed and Distance Note250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
    • MAC Address Table2048
    • Max Switching Capacity1.2 Gbps
    • Max Forwarding Rate0.8928 Mpps
    • Jumbo Frame2 KB
    • Packet Buffer570 Kbit
    • PowerPower Methods DC, Power Input 54V⎓0.66A
    • Power Adapter in the BoxInput: 100-240V~, 50/60Hz, Output: 54V⎓0.93A
    • Power Supply36W
    • Max Power Excluding PoE2W
    • Switching802.3 Protocols 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
    • ReliabilityEMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
    • EnvironmentOperating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
    • MechanicalDimension 138×61.5×24 mm, 5.43×2.42×0.94 inches
    • Product Weight88.0 g (3.1 oz.)
    • Casing MaterialPlastic
    • InstallationDesktop, Wall-mount
    • Package ContentFS106P, Power Adapter, Power Cord, Installation Guide
