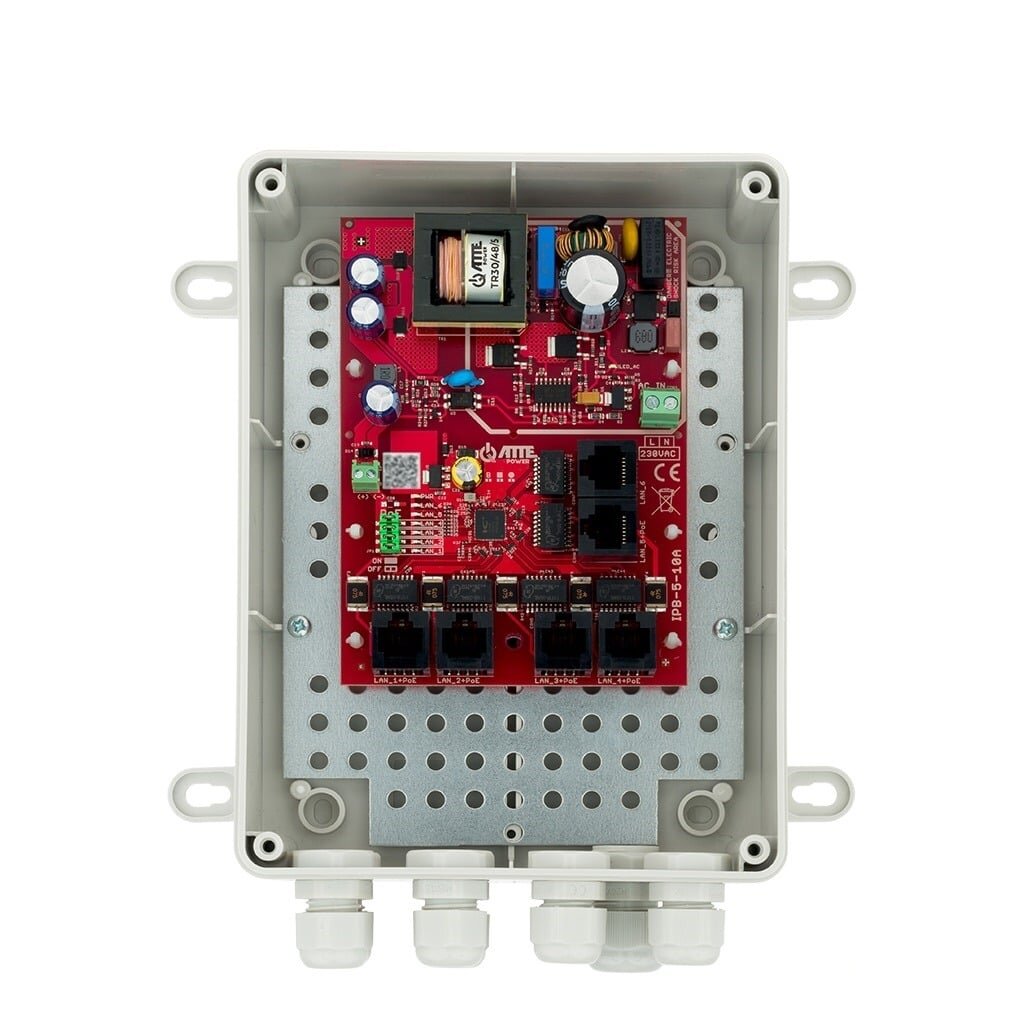

  •   6 port switch ATTE IPB-5-10A-M2 (5x PoE, 100Mbps, 90W, IP65)

    6 port switch ATTE IPB-5-10A-M2 (5x PoE, 100Mbps, 90W, IP65)

    Inquire about this item
    Price 89.49 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    • General
    • Total number of ports5 PoE Ports, 1 UpLink Port
    • PoE OUT PortsLAN 1 ... LAN 5 PoE Passive
    • LAN Ports 10/100MbpsLAN 1 ... LAN 6
    • LAN + PoE OUT Ports 10/100MbpsLAN 1 ... LAN 5
    • Input Voltage190 ... 260 VAC, 50 Hz
    • PoE Output Voltage55V +/- 2%
    • Maximum Power90W
    • Maximum output power per portLAN 1 ... LAN 5 - PoE Passive 40 W
    • Power control at outputPoE jumpers LAN 1 ... LAN 4
    • Surge protectionLAN 1 ... LAN 6
    • Overload protectionLAN 1 ... LAN 5 Short-circuit protection 0.75 A
    • Efficiency93% @90 W
    • Power supply input protection3.15 A slow-blow fuse
    • Power supply output protectionElectronic overload protection at 3 A
    • Power supply thermal protectionTSD 130°C - requires power supply restart
    • Network voltage indicationLED_AC (white) - presence of mains voltage
    • Power indicationLED PWR (white) - presence of power
    • PoE indicationLED LAN 1 ... LAN 5 (red) - presence of PoE power
    • Transmission indicationLED LAN 1 ... LAN 6 (green) - link and data transmission
    • Operating temperature range-25°C...+50°C
    • Dimensions (W x H x D)140 x 190 x 70 mm
    • Weight0.67 kg
    • Degree of protectionIP56
    • HousingABOX-M2 / plastic / gray / cable glands 6 x M16, 1 x M20
    • MountingWall-mounted, mounting brackets
    • EAN Code5902143691693
    • PKWiU Code26.30.23.0
    • HS Code8517 62
    • CN2020 Code8517 62 00
