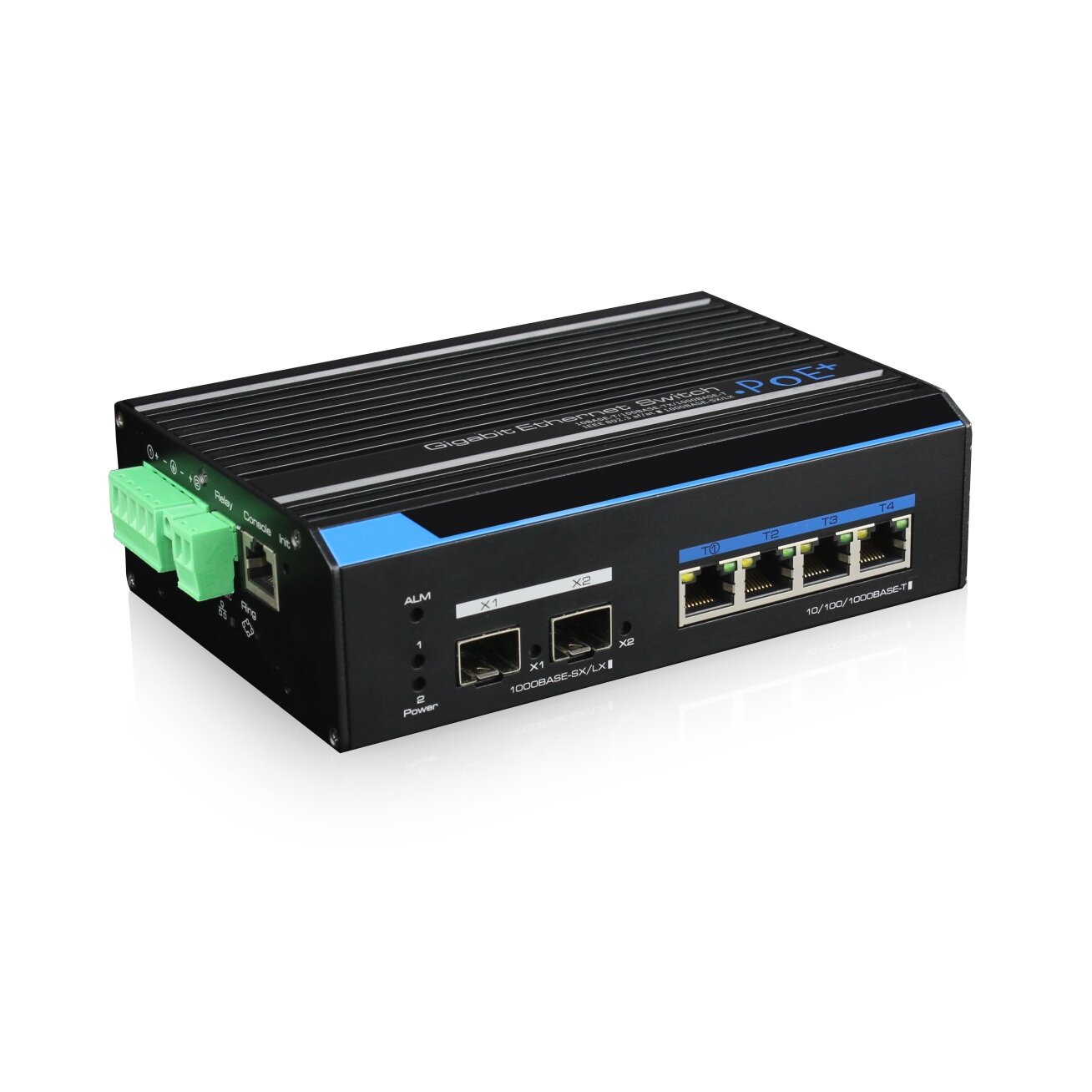

6 port 4 PoE port Switch UTEPO UTP7304GE-POE 150 W

Model

UTP7304GE-POE

Power input

5pin green terminal, 2 groups DC input (reduntant power), 1 grounding terminal. Input power range:DC48V~57V

Power Consumption

Self comsumtion< 20W

Copper Ports

4* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP Ports

2*1000 Base-X SFP(Mini-GBIC)

Console Port

1*RJ45-R232 serial port(115200,8,N,1)

Init Button

Short press:restart.

>5s restore factory settings

One-key Fast-ring

Default mode: No ring(can setup on web management).

Ring mode: Fast ring with SFP X1 and X2

Relay Alarm

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Standard and Protocols

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Switching Capacity

24Gbps

Packet Forwarding Rate

8.9Mpps

Forwarding Modes

Store and Forward

Packet Buffer

4Mbit

MAC Address Table

8K MAC address table with auto learning function

Jumbo Frame

10K bytes

PoE Standard

T1 HPoE 60W max(also support 802.3af/at) ,T2～T4 802.3af/at 30W max

PoE Line Pair

T1:1/2(+),3/6(-).4/5(+),7/8(-)

T2～T4:1/2(+),3/6(-) end-span

EMI

FCC Part 15,CISPR(EN55022) class A

EMC

Surge level-4 IEC61000-4-5

ESD level-4 (8KV/10KV) IEC61000-4-2

RS level-4 IEC61000-4-3

EFT level-4 IEC61000-4-4

CS level-3 IEC61000-4-6

M/S level-5 IEC61000-4-8

Operating Temperature

-40-75℃

Storage Temperature

-40-85℃

Humidity

5%-95%(Non-condensing)

Dimension（L×W×H）

159mm×110mm×46.5mm

Weight

1.5kg

Installation

On desk.Din-rail.Wall hung

MTBF

330000 Hour

Ingress Protection Rating

IP40

Certification

CE, FCC, ROHS

Software Parameter

Port Management

Support Port Enable/Disable.

Support Port Rate Settings.

Support Port Full-duplex Mode.

Support IEEE802.3x Flow Control.

Support Port Name Change.

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN.

Support Port-Based VLAN.

QoS

Support QoS.

Support 8-Level Priority management for switching.

Support WRR.

Support 820.1P and DSCP Priority.

Multicast Management

Support SNMP V1/V2/V3 Protocol.

Support IGMP Snooping.

POE Management

Support Total Power Consumption Control.

Support PoE ON/OFF.

Support Single Port 60W max. Power Change and Port Output Priority.

Alarm Signal Output by Relay

Support relay alarm for power off, ports network link-off , ports PoE off

Security

Support IP, MAC, Port, VLAN Combination and Binding.

Support MAC address auto-learning, aging& filter.

Support Port Isolation, Port Speed-Limited.

Support RSTP.

Support Fast-Ring.

Support 5 groups of 8-Port trunk.

Support RADIUS Authentication& 802.1X Authentication.

System Management & Maintenance

Support WEB Management, CLR Settings and telnet Settings.

Support CLR Settings.

Support FTP/TFTP/HTTP Web Upgrading.

Support Flow Calculate.

Support MAC address Form Search.

Support IP Address, DNS Server Change

Support Username & Password Change.

Support History Record, Journal management.

Support System settings Backup.
