  •   6 port 4 PoE port switch UTEPO UTP3306TS-PSB

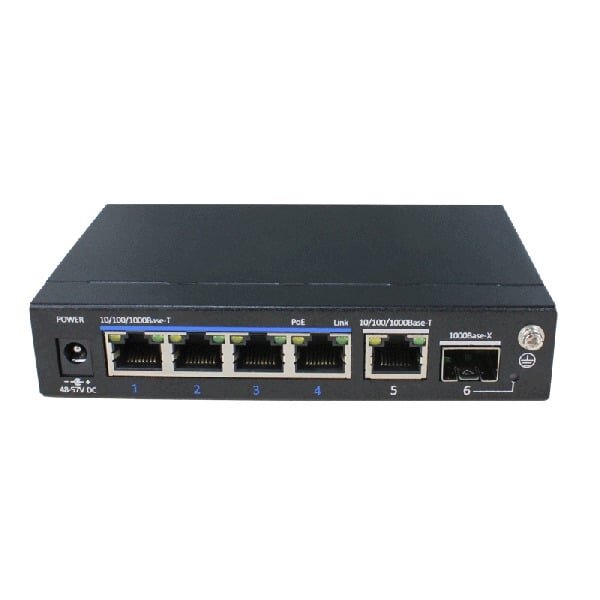

    6 port 4 PoE port switch UTEPO UTP3306TS-PSB

    Inquire about this item
    Price 73.41 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • General
    • ItemsUTP3306TS-PSB
    • Downlink Ports4*10/100/1000Base-T PoE RJ-45 (Auto-MDI/MDI-X)
    • Uplink Ports1*10/100/1000Base-T RJ-45 (Auto-MDI/MDI-X)
    • Led Indicators1*PWR Indicator, 1*CCTV Mode Indicator, 4*Downlink Port Link Indicators, 4*Downlink Port PoE Indicators, 2*Uplink Port Link Indicator
    • CableCat5 or better
    • Dimensions (W*D*H)135mm*86mm*27mm
    • Net Weight0.3kg
    • Input VoltageDC 48~57V
    • Power Consumption≤65W (Full load including PoE)
    • InstallationDesktop/wall-mounted
    • MaterialMetal shell
    • Forwarding ModesStore and Forward
    • Switching Capacity12Gbps / non-blocking
    • Packet Forwarding Rate8.9Mpps
    • MAC Table8k, supported auto learning
    • Packet Buffer4Mbit
    • PoE deviceEndpoint PSE (Power Sourcing Equipment)
    • PoE StandardIEEE 802.3af/at
    • PoE Pin Assignment1/2(+), 3/6(-)
    • PoE Power Output54V DC
    • PoE Budget30W max for each port, 60W max for whole switch
    • Standards ComplianceIEEE 802.3 Ethernet
    • EMCFCC 47 CFR Part 15 Class A
    • LVDEN 62368-1:2014
    • OperatingTemperature: -5℃~45℃
    • StorageTemperature: -40℃~75℃
    • CertificationsCE, FCC
