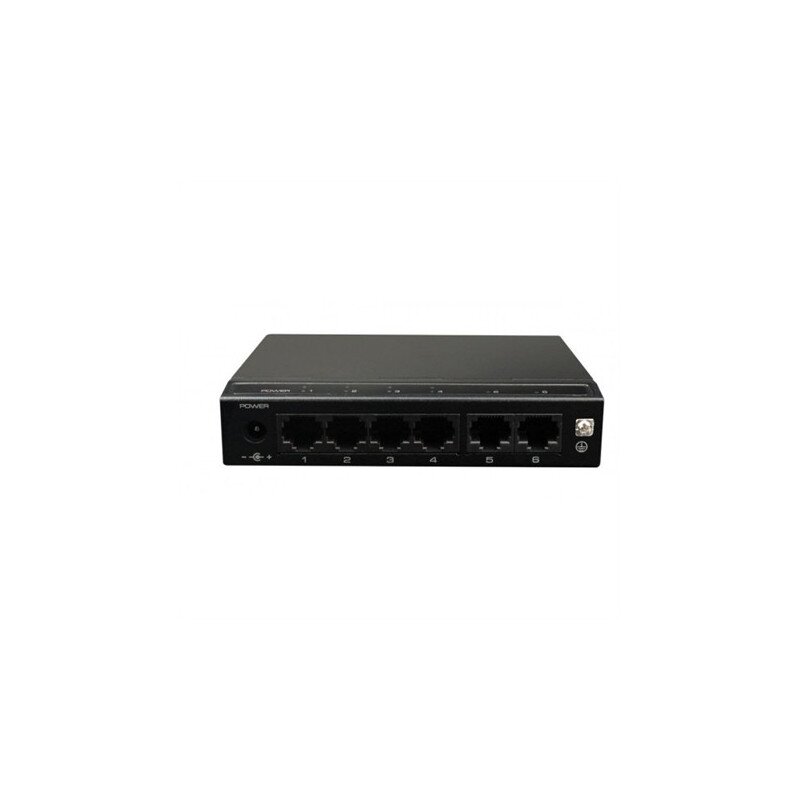

6 port 4 PoE port switch UTEPO SF6P-FHM

Model

SF6P-FHM

Ethernet Ports

4*10/100Base-TX (PoE)

2*10/100Base-TX Ethernet Ports

Standards

IEEE 802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3af, IEEE802.3at

Switching Capacity

1.2Gbps

Packet Forwarding Rate

0.89Mpps

Forwarding Modes

Store and Forward

MAC Table

1k

Three Working Modes

DEFAULT. All ports are free to communicate.

VLAN. 1~4 ports are isolated from each other,

but can communicate with uplink ports.

CCTV. The transmission distance can be up to 250m,

but the rate is limited to 10Mbps.

PoE Pin Assignment

1/2 (+), 3/6 (-)

PoE Power Output

Single port≤30W (DC 54V)

Total PoE budget ≤60W

Surge Immunity

4kV, Standards IEC61000-4-5

ESD Protection

6kV contact discharge/8kV air discharge. Standards IEC61000-4-2

Input Voltage

DC 54V 1.11A

Power Consumption

＜4W

Operating Temperature

0℃~40℃

Storage Temperature

-40℃~70℃

Operating Humidity

5%~95% (no condensation)

Dimensions (W*D*H)

122mm * 92mm * 25mm

Gross Weight

564.0g

Net Weight

216.6g

Certifications

CE, FCC, RoHS
