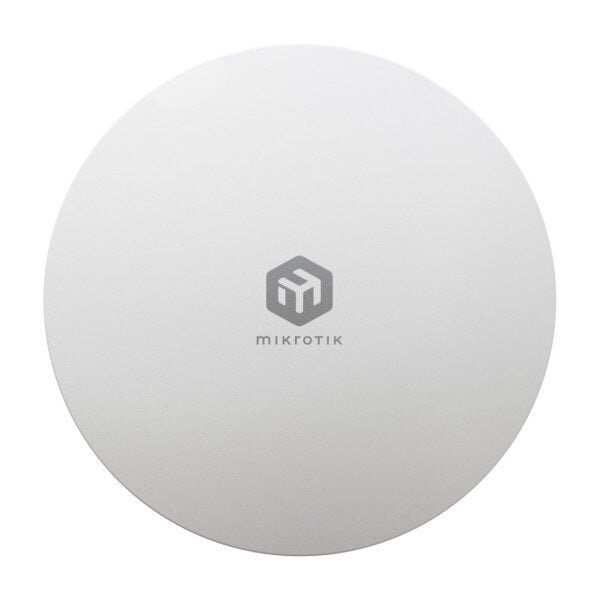

  •   5G modem MikroTik ATL 5G R16 (LTE Cat 6, 5G, up to 42.2 Mbps)

    5G modem MikroTik ATL 5G R16 (LTE Cat 6, 5G, up to 42.2 Mbps)

    Inquire about this item
    Price 102.88 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Product codeATLGM&RG520F-EU
    • ArchitectureARM 64bit
    • CPU88F3720
    • CPU core count2
    • CPU nominal frequency800 MHz
    • CPU threads count2
    • RouterOS licenseLevel 3
    • Operating SystemRouterOS v7
    • RAM512 MB
    • Storage size32 MB
    • Storage typeFLASH
    • MTBFApproximately 200,000 hours at 25°C
    • Tested ambient temperature-40°C to 70°C
    • Number of DC inputs1 (PoE-IN)
    • PoE in802.3af/at
    • PoE input voltage12–56 V
    • Max power consumption10 W
    • Max power consumption without attachments10 W
    • Cooling typePassive
    • 3G CategoryR8 (42.2 Mbps downlink, 5.76 Mbps uplink)
    • 3G bands1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
    • LTE Category20 (2.0 Gbps downlink, 200 Mbps uplink)
    • MIMO DL4×4
    • LTE FDD bands1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
    • LTE TDD bands38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz)
    • 5G NSA FDD bands1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
    • 5G NSA TDD bands38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
    • 5G SA FDD bands1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
    • 5G SA TDD bands38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
    • TAC86945405
    • 10/100/1000 Ethernet ports1
    • Number of 1G Ethernet ports with Reverse PoE (PoE-in)1
    • Number of SIM slots1 Modem (Micro SIM)
    • Number of M.2 slots1
    • Mode buttonYes
    • eSIMYes
    • CertificationCE, EAC, RoHS
    • IP ratingIP66
    • Included parts24V 0.8A power adapter, Gigabit PoE injector, 2 × Hose clamps
    • Software updatesFree software updates for the life of the product or a minimum of 5 years from date of purchase
