  •   52-port switch HPE Aruba CX 6200F JL727B

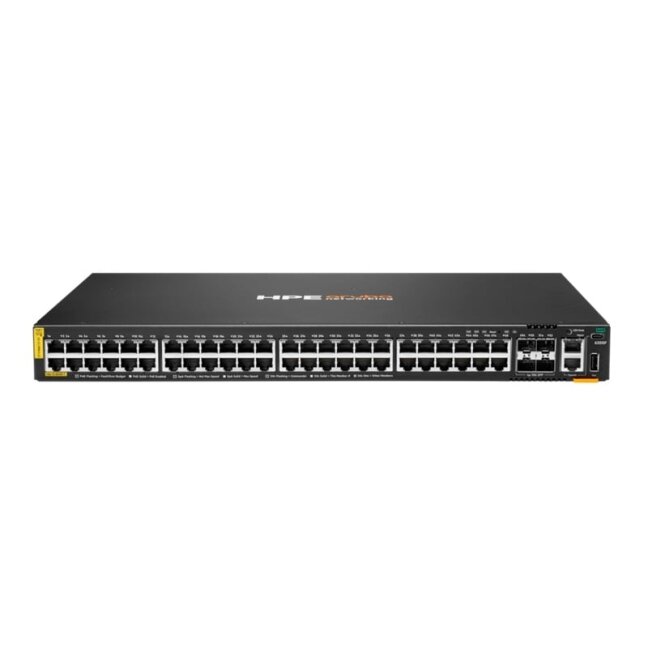

    52-port switch HPE Aruba CX 6200F JL727B

    Inquire about this item
    Price 6781.81 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • ModelHPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch (JL727B)
    • Ports48x 10/100/1000BASE-T Class 4 PoE ports (up to 30W/port), 4x 1/10G SFP+ ports
    • PoE SupportIEEE 802.3af, 802.3at; Total PoE budget: 370W
    • Management Ports1x USB-C Console Port, 1x RJ-45 Console Port, 1x USB Type-A Host Port, 1x OOBM Port
    • Memory8 GB DDR4 RAM
    • Flash Storage16 GB eMMC
    • ProcessorQuad-Core ARM Cortex-A72 @ 1.8 GHz
    • Latency2.28 μSec (1 Gbps), 1.46 μSec (10 Gbps)
    • ThroughputUp to 130.9 Mpps
    • Switching Capacity176 Gbps
    • Stacking CapabilityUp to 8-member stacking using Virtual Switching Framework (VSF)
    • Power Consumption76W (at 230 VAC)
    • Input Voltage100V–120V / 200V–240V
    • Form Factor1U, fixed power supply and fans
    • Dimensions (WxDxH)1.73 x 17.4 x 12.9 in
    • Weight11.24 lbs (max, depending on model)
    • Management ToolsCX Mobile App, Web GUI, CLI, Aruba Central, Multi-Edit Software, SNMP, REST APIs
    • FeaturesLayer 3 switching, ACLs, QoS, static & OSPF routing, Dynamic Segmentation, VXLAN tunnels
    • Use CaseEnterprise branch/campus access, IoT-ready networks with automation and advanced analytics
