  •   5 ports TELTONIKA TSF010 Industrial Unmanaged Switch

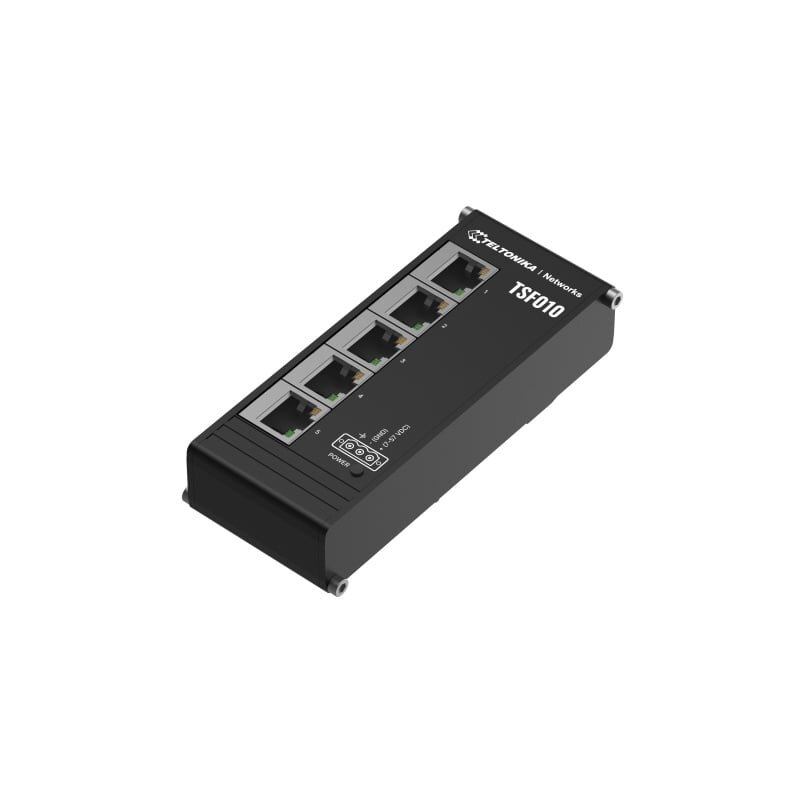

    5 ports TELTONIKA TSF010 Industrial Unmanaged Switch

    Inquire about this item
    Price 40.56 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Teltonika

    • General
    • Ethernet5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover, IEEE 802.3 series standards (802.3i, 802.3u, 802.3ab, 802.3x, 802.3az)
    • Bandwidth (Non-blocking)10 Gbps
    • Packer buffer128 KB
    • MAC address table size2K entries
    • Jumbo frame support9216 bytes
    • Power connector3-pin industrial DC power socket
    • Input voltage range7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current
    • Power consumptionIdle: 1 W / Max: 1.5 W
    • Physical interfacesEthernet: 5 x RJ45 ports, 10/100 Mbps, Status LEDs: 1 x Power LED, 10 x ETH status LEDs, Power: 1 x 3-pin industrial DC power socket, Grounding: Grounding terminal on power connector
    • Casing materialAnodized aluminum housing and panels
    • Dimensions113 x 28 x 50 mm
    • Weight142 g
    • Mounting optionsIntegrated DIN rail bracket
    • Operating temperature-40 °C to 75 °C
    • Operating humidity5% to 95% non-condensing
    • Ingress Protection RatingIP30
