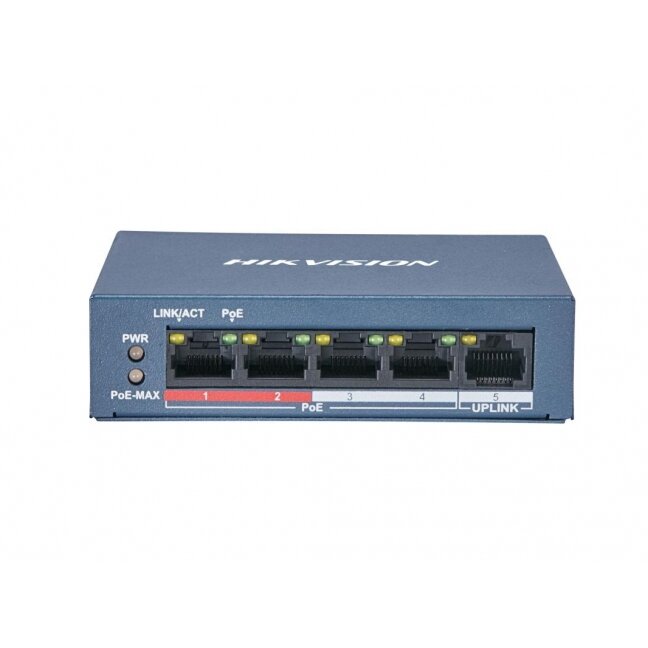

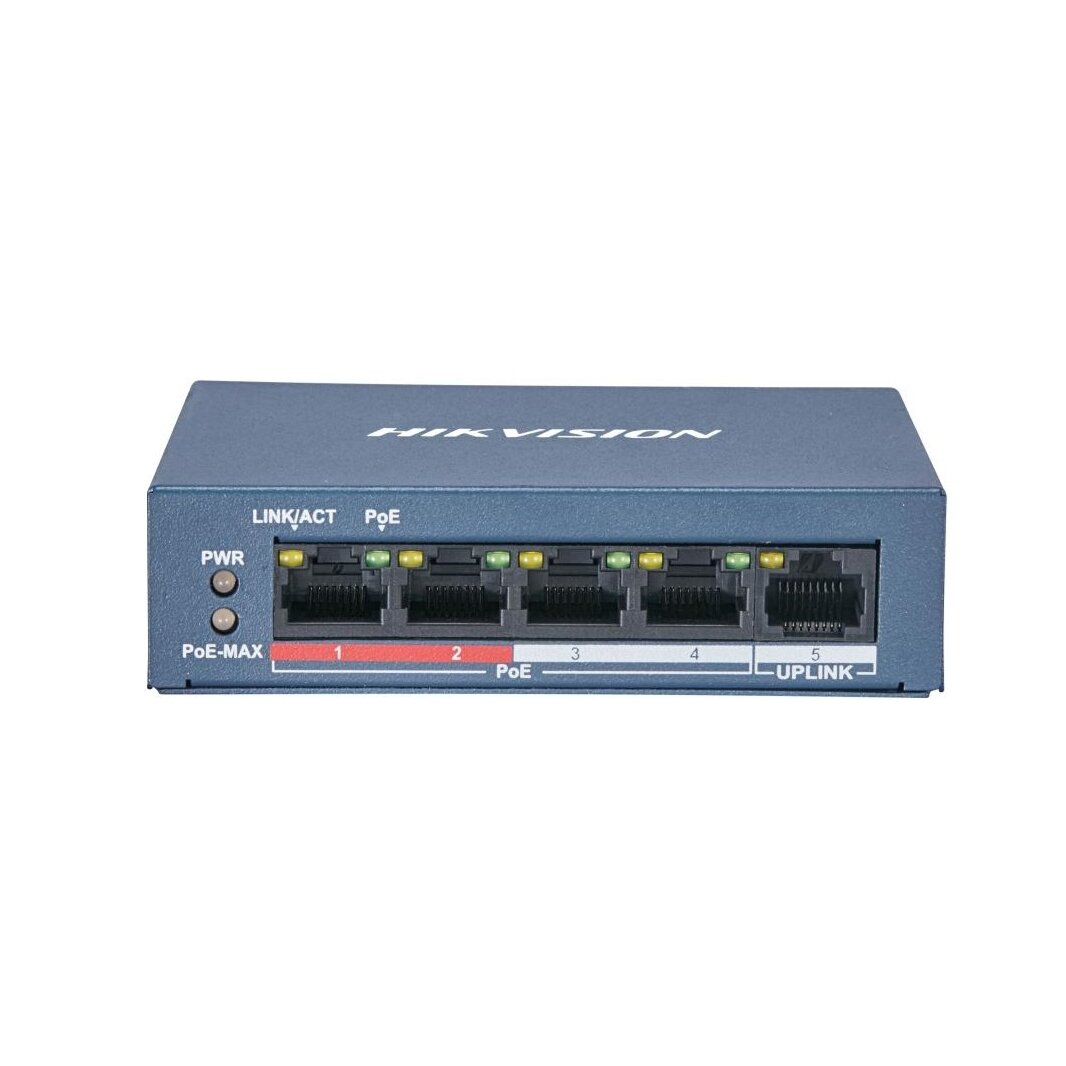

  •   5 ports, 4 PoE switch Hikvision DS-3E0105P-E/M(B)

    5 ports, 4 PoE switch Hikvision DS-3E0105P-E/M(B)

    Inquire about this item
    Price 46.69 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • General
    • ShellMetal material
    • Net Weight0.2 kg (0.4 lb)
    • Gross Weight0.48 kg (1.06 lb)
    • Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
    • Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Relative Humidity5% to 95% (no condensation)
    • Power Supply48 VDC, 0.8 A
    • Max. Power Consumption38 W
    • Power Consumption in Idle3 W
    • Installation ModeDesk-Mounted,Wall-Mounted
    • Surge Protection6 KV
    • Network Parameters
    • Ports4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port
    • MAC Address Table2 K
    • Switching Capacity1 Gbps
    • Packet Forwarding Rate0.74 Mpps
    • Internal Cache0.768 Kbits
    • PoE Power Supply
    • PoE StandardIEEE 802.3af;IEEE 802.3at
    • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE PortPoE: Ports 1 to 4
    • Max. Port Power30 W
    • PoE Power Budget35 W
    • Dialing Function
    • Long Range

      Ports 1 to 4 : up to 300 m.

      Long range performance may vary depend on camera model or cable condition.

    • Port Isolation/
    • PoE Watchdog/
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
    • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • Chemistry

      CE-RoHS (201165EU);

      WEEE (201219EU);

      Reach (Regulation (EC) No.19072006)
