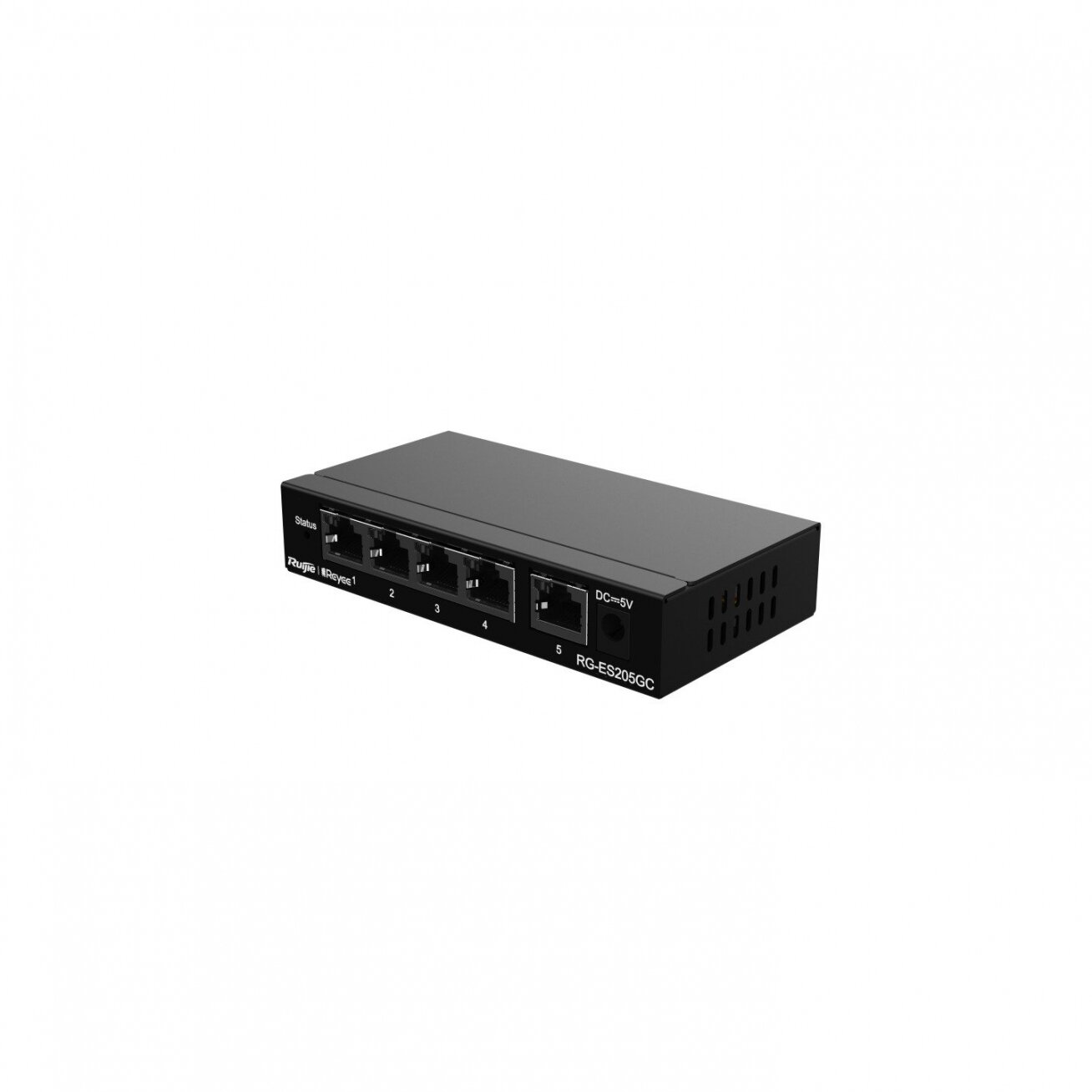

5 port switch Ruijie Reyee RG-ES205GC
ManufacturerRuijie-
- General
- Total Number of RJ45 Ports5
- Number of 1GE RJ45 Ports5
- Forwarding Rate7.4 Mpps
- Switching Capacity10 Gbps
- Maximum Number of VLANs16
- Maximum Number of MAC Address Entries2K
- Power InputRated Voltage Range: 100V to 240V AC, Maximum Voltage Range: 90V to 264V AC, Frequency: 50/60 Hz, Rated Current: 0.3A
- Adapter OutputRated Voltage: 5V DC, Rated Current: 1A
- Maximum Power Consumption≤5W
- Power SupplyPower Adapter
- FanFanless
- Heat Dissipation17.1 BTU/hr (220V/50Hz)
- Acoustic NoiseFanless
- ButtonReset Button: Yes
- MountingWall-mount and Desk-type
- CasingMetal
- Hot-Swappable CablesSupported by all ports
- Mean Time Between Failure (MTBF)>200K hours
- Operating Temperature0 to 40°C
- Storage Temperature-40 to 70°C
- Operating Humidity10% to 90% RH (non-condensing)
- Storage Humidity5% to 95% RH (non-condensing)
- Operating Altitude-500 to 5000M
- ESD ProtectionAir Discharge: 4kV, Contact Discharge: 4kV
- Surge ProtectionCommon Mode: 4kV
- Jumbo Frame Length (MTU)9216 Bytes
- Port Flow ControlYes
- Port IsolationYes
- EEEYes
- Cable TestYes
- IEEE 802.1Q VLANYes
- Port-based VLANYes
- Port MirroringYes
- Static MAC AddressYes
- Broadcast Storm ControlYes
- Multicast Storm ControlYes
- Unknown Unicast Storm ControlYes
- DNS ClientYes
- DHCP SnoopingYes
- DHCP ClientYes
- QoSInterface-based Rate Limiting (Ingress/Egress): Yes
- Online UpgradeYes
- Self-Organizing Network (SON)Yes
- System LogYes
- Camera DetectionYes
- Loop AlarmYes
- Web ManagementeWeb: Yes
- Cloud ManagementRuijie Cloud: Yes
- App ManagementRuijie Reyee App: Yes
- CertificationsCE, FCC
