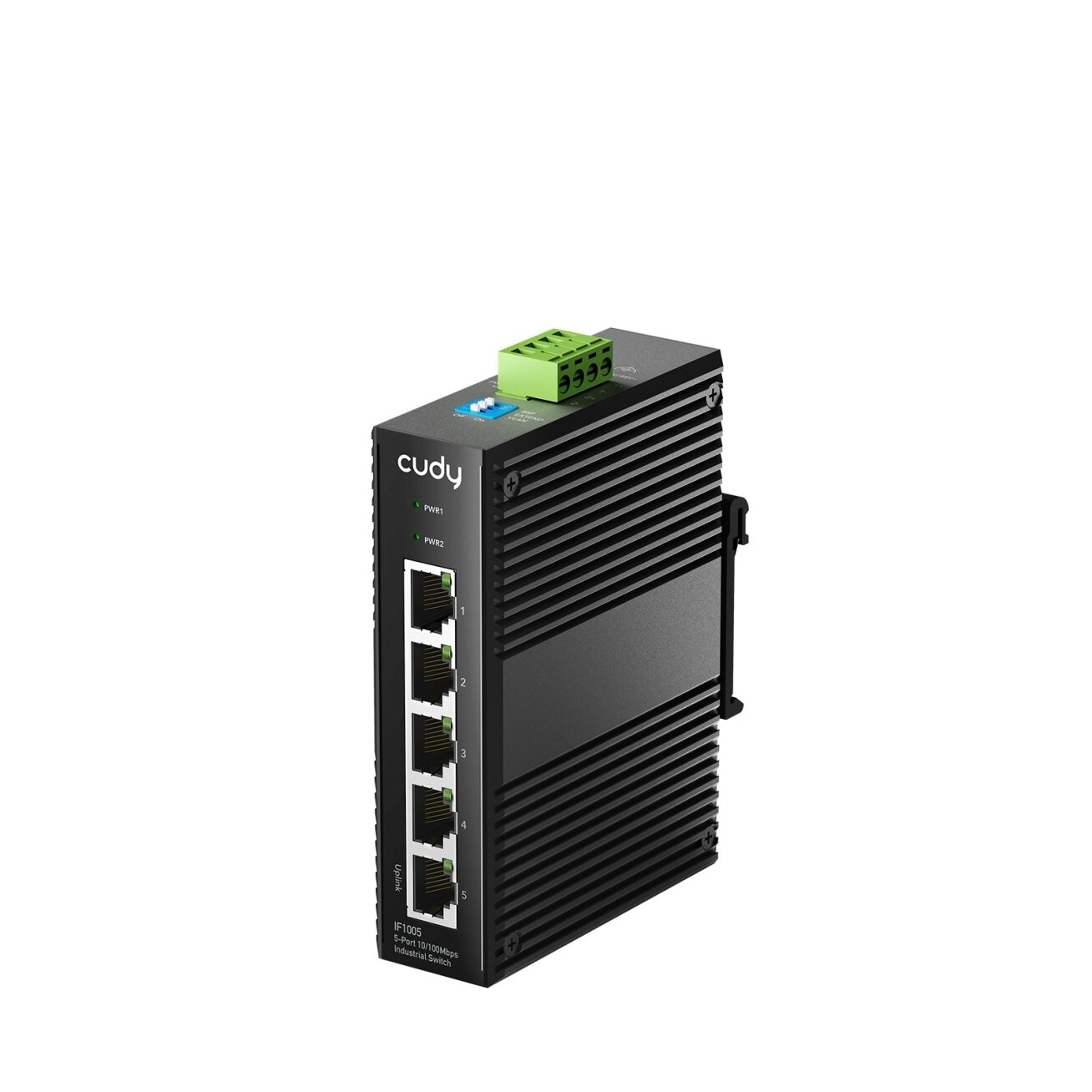

    5-port switch CUDY IF1005

    Inquire about this item
    Price 29.31 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    • General
    • ModelIF1005
    • Ethernet Ports5× 10/100 Mbps shielded RJ45 ports
    • Extend ModePorts 1–4 support up to 250 m @ 10 Mbps with Cat 5e or better
    • VLAN ModePorts 1–4 isolated when enabled
    • LED IndicatorsPower 1, Power 2, Link/ACT per Ethernet port
    • Power InputDual DC 9.6–60V via Phoenix Terminal 4-PIN
    • Power ProtectionPolarity reverse protection, Short circuit protection
    • Power RedundancySupported (dual DC)
    • Max Power Consumption0.9W
    • Idle Power Consumption0.25W
    • MAC Address Table2048 entries
    • Switching Capacity1 Gbps
    • Forwarding Rate0.744 Mpps
    • Packet Buffer768 Kbit
    • Jumbo Frame2 KB
    • ProtocolsIEEE 802.3i (10BASE-T), 802.3u (100BASE-TX)
    • Copper Cable Distances100m @ 10 Mbps (Cat 3+), 100m @ 100 Mbps (Cat 5+), 250m @ 10 Mbps (Cat 5e+ in Extend mode)
    • Hardware FeaturesDIP switch for VLAN, Extend, Broadcast Storm Prevention
    • HousingAluminum alloy with IP40 protection
    • MountingDIN-Rail (bracket integrated)
    • GroundingGrounding point available
    • Operating Temperature-40°C ~ 85°C
    • Storage Temperature-40°C ~ 85°C
    • Operating Humidity5% ~ 95% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • Dimensions118×86×33.5 mm (4.65×3.39×1.32 inches)
    • Weight310.3 g (10.95 oz)
    • CertificationsIEC/EN 62368, EN55032/35 Class A, FCC Part 15B Class A
    • ESD ProtectionContact: 8kV, Air: 15kV
    • Surge ProtectionPower: DM 2kV, CM 4kV; RJ45: CM 6kV
    • EMC StandardsIEC/EN 61000-4-2/3/4/5/6/8/9/10
    • Shock/VibrationIEC 60068-2-27/2-6
    • Free FallIEC 60068-2-32
