  •   5-port switch CUDY HS105

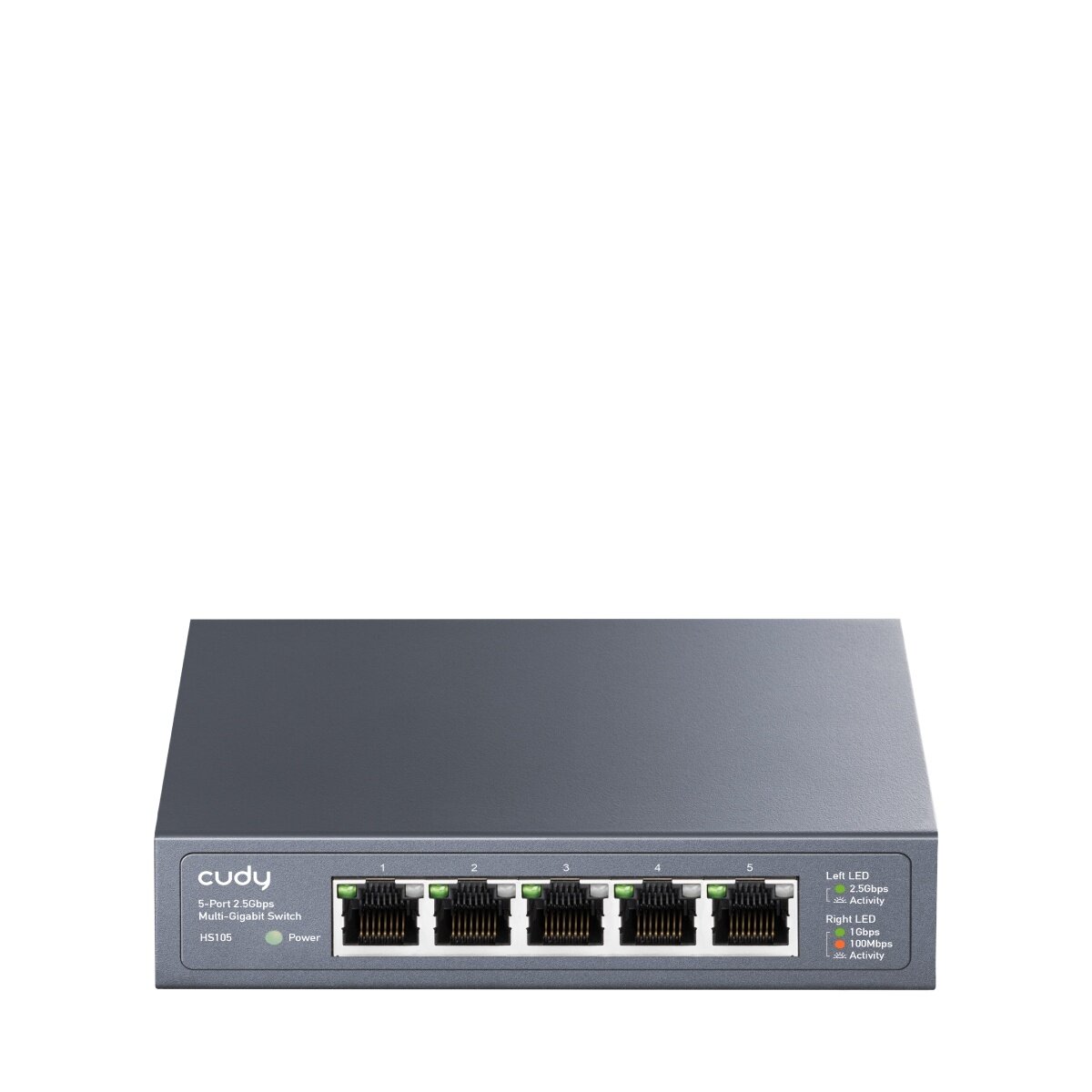

    5-port switch CUDY HS105

    Inquire about this item
    Price 46.30 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • ModelHS105
    • ChipsetAiroha EN8860D + EN8811H
    • Ethernet Ports5× 100/1000/2500 Mbps (Auto-Negotiation, Auto-MDI/MDIX)
    • LED IndicatorsPower, Link/ACT per port
    • Grounding1× Auxiliary grounding point
    • Network Media2.5GBASE-T: Cat 5e (max 50 m), Cat 6/6A (max 100 m); 1000BASE-T: Cat 5/5e/6 (max 100 m); 100BASE-TX: Cat 5/5e (max 100 m)
    • Transfer MethodStore-and-Forward
    • MAC Address Table8K
    • Switching Capacity25 Gbps
    • Packet Forwarding Rate18.6 Mpps
    • Packet Buffer4 Mbit
    • Jumbo Frame15 KB
    • Power InputDC 12V / 1A
    • Dimensions119×85×28 mm (4.69×3.35×1.1 inches)
    • Operating Temperature0°C ~ 40°C
    • Storage Temperature-40°C ~ 70°C
    • Operating Humidity0% ~ 100% non-condensing
    • Storage Humidity10% ~ 95% non-condensing
    • FeaturesNon-blocking architecture, 802.3x Flow Control, IGMP Support, Loop Detection, Desktop/Wall Mountable
