  •   5-port switch CUDY GS1005PTS1

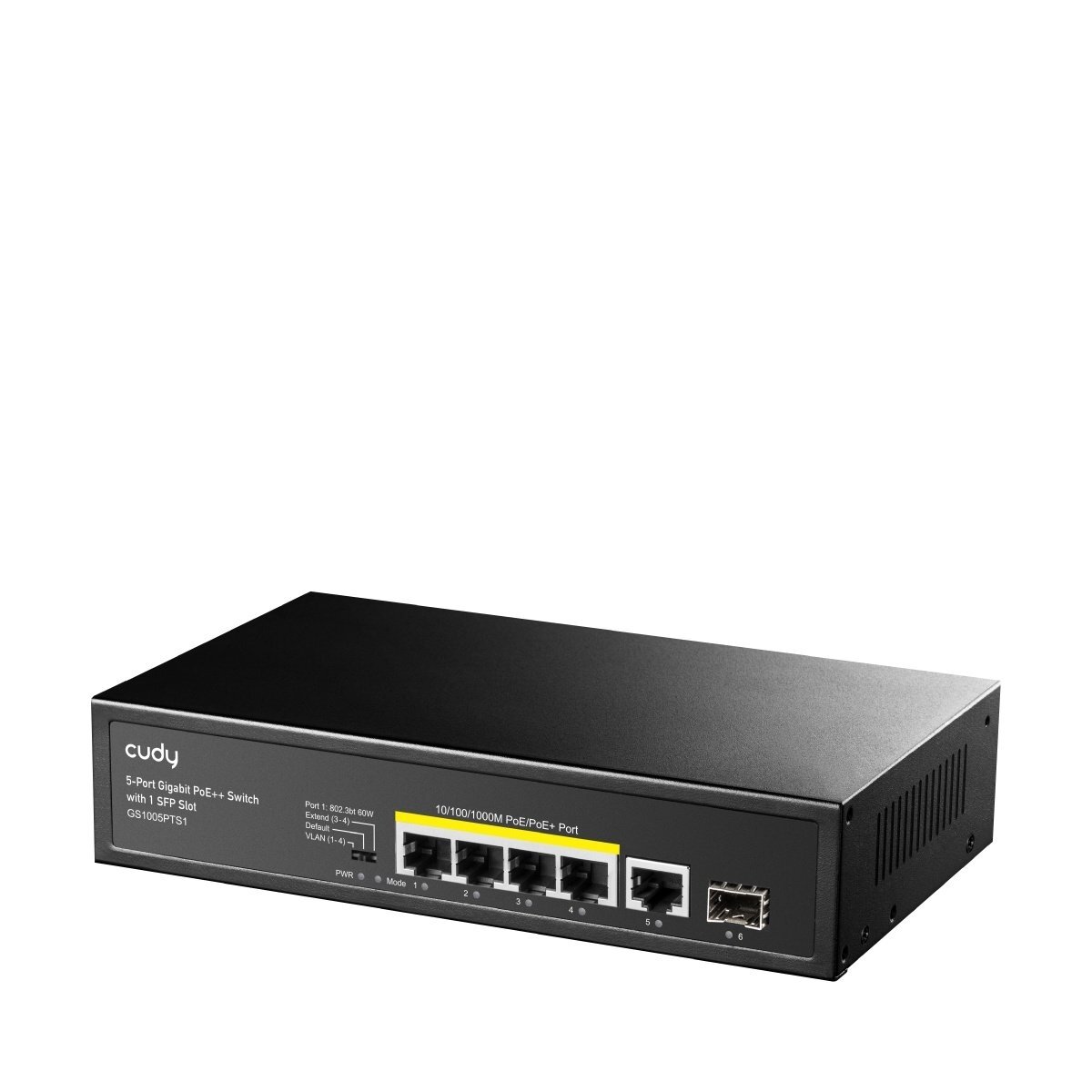

    5-port switch CUDY GS1005PTS1

    Inquire about this item
    Price 43.25 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionGS1005PTS1 1.0
    • 1.25G SFP Slots1
    • Gigabit RJ45 Ports5
    • Gigabit RJ45 PoE Ports#1~#4
    • Max Power on a Single PoE PortPort 1: 60W, Port 2~4: 30W
    • PoE Port NotesPort #1 supports 802.3at 60W output; Ports #2~4 support 30W 802.3at/af standards
    • Extend Mode Ports#3~#4
    • VLAN Mode Ports#1~#4
    • LED IndicatorsPower, DIP Mode (SW), Link/ACT of Each Ethernet Port
    • Power InputAC Inlet
    • Physical ButtonsVLAN/Default/Extend DIP Switch
    • Copper Speed and DistanceCat. 3+: 100m @ 10 Mbps, Cat. 5+: 100m @ 100 Mbps, Cat. 5e+: 100m @ Gigabit, 250m @ 10 Mbps (Extend Mode only)
    • Copper Speed Note250-meter transmission only available on Extend Mode ports
    • Optical Spec and DistanceDepends on the Installed Optical Module
    • MAC Address Table2048
    • Max Switching Capacity12 Gbps
    • Max Forwarding Rate8.928 Mpps
    • Jumbo Frame9 KB
    • Packet Buffer1 Mbit
    • Power MethodsAC
    • AC Input Range100-240V~, 50/60Hz
    • Power Supply120W
    • Max Power Excluding PoE5W
    • 802.3 Protocols802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
    • Grounding MethodsThree-Prong Plug
    • Operating Temperature0~40 ℃ (32~104 ℉)
    • Storage Temperature-40~70℃ (-40~158 ℉)
    • Operating Humidity10~90% non-condensing
    • Storage Humidity10~95% non-condensing
    • Dimensions200×145×44 mm (7.87×5.71×1.73 inches)
    • Product Weight645 g (22.75 oz.)
    • Casing MaterialMetal
    • Installation OptionsDesktop, Rackmount via Brackets (Brackets not included)
    • Package ContentGS1005PTS1, Power Cord, Installation Guide
