  •   5-port switch CUDY FS105D

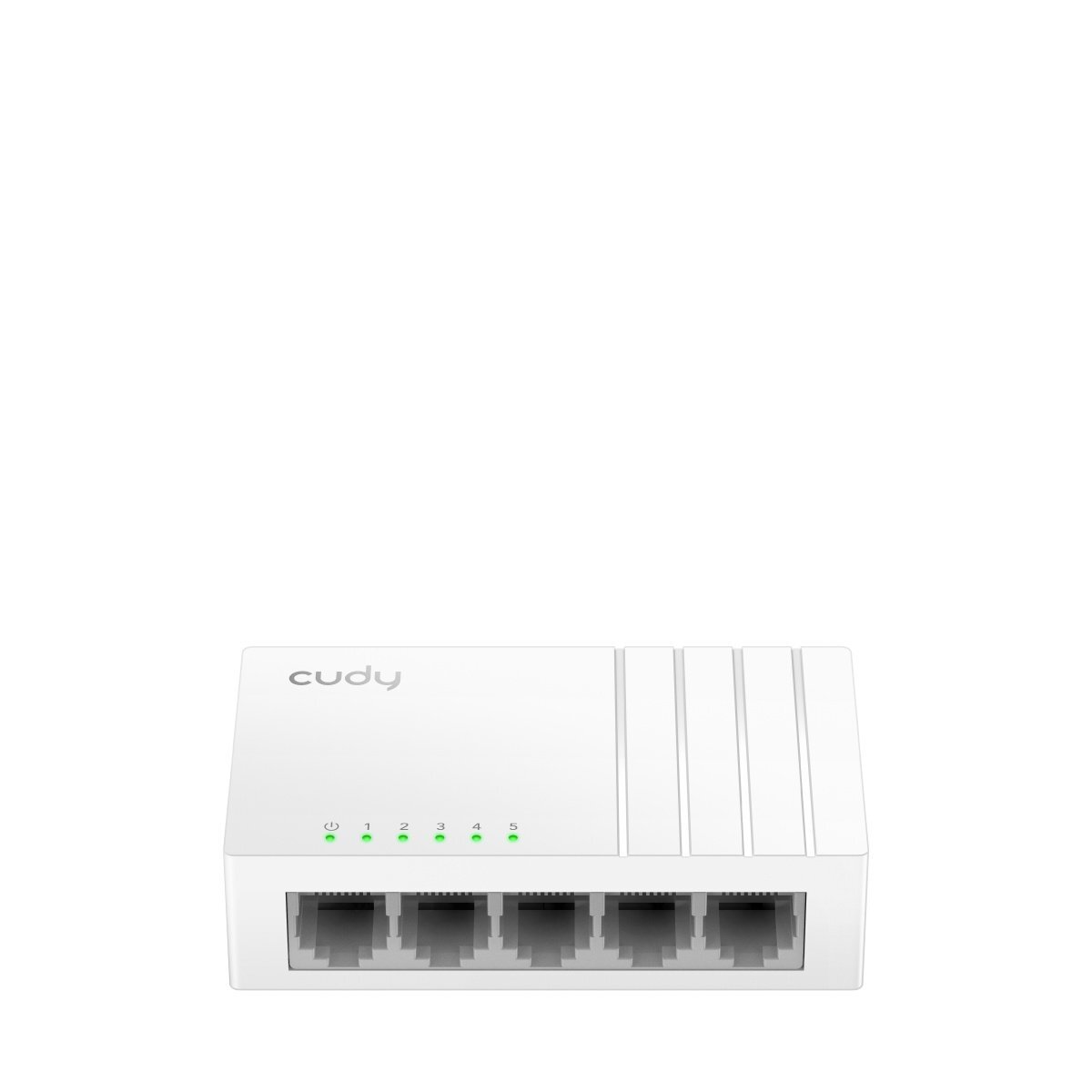

    5-port switch CUDY FS105D

    Inquire about this item
    Price 7.18 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionFS105D 3.0
    • 10/100 Mbps RJ45 Ports5
    • LED IndicatorsPower, Link/ACT of each Ethernet port
    • Power InputDC Jack
    • Copper Speed and Distance100 m @ 10 Mbps (Cat 3+), 100 m @ 100 Mbps (Cat 5+)
    • MAC Address Table512 entries
    • Max Switching Capacity1 Gbps
    • Max Forwarding Rate0.744 Mpps
    • Packet Buffer448 Kbit
    • Basic Power SavingTrue
    • Power MethodDC
    • DC Specification5V ⎓ 0.55A
    • Power AdapterInput: 100–240V~, 50/60 Hz; Output: 5V ⎓ 0.55A
    • Max Power Consumption0.9W
    • Idle Power Consumption0.25W
    • Supported ProtocolsIEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX)
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • Dimensions88×52.5×24 mm (3.46×2.07×0.94 inches)
    • Product Weight50 g (1.76 oz.)
    • Casing MaterialPlastic
    • Installation TypeDesktop, Wall-mount
