  •   5-port switch CUDY FS105

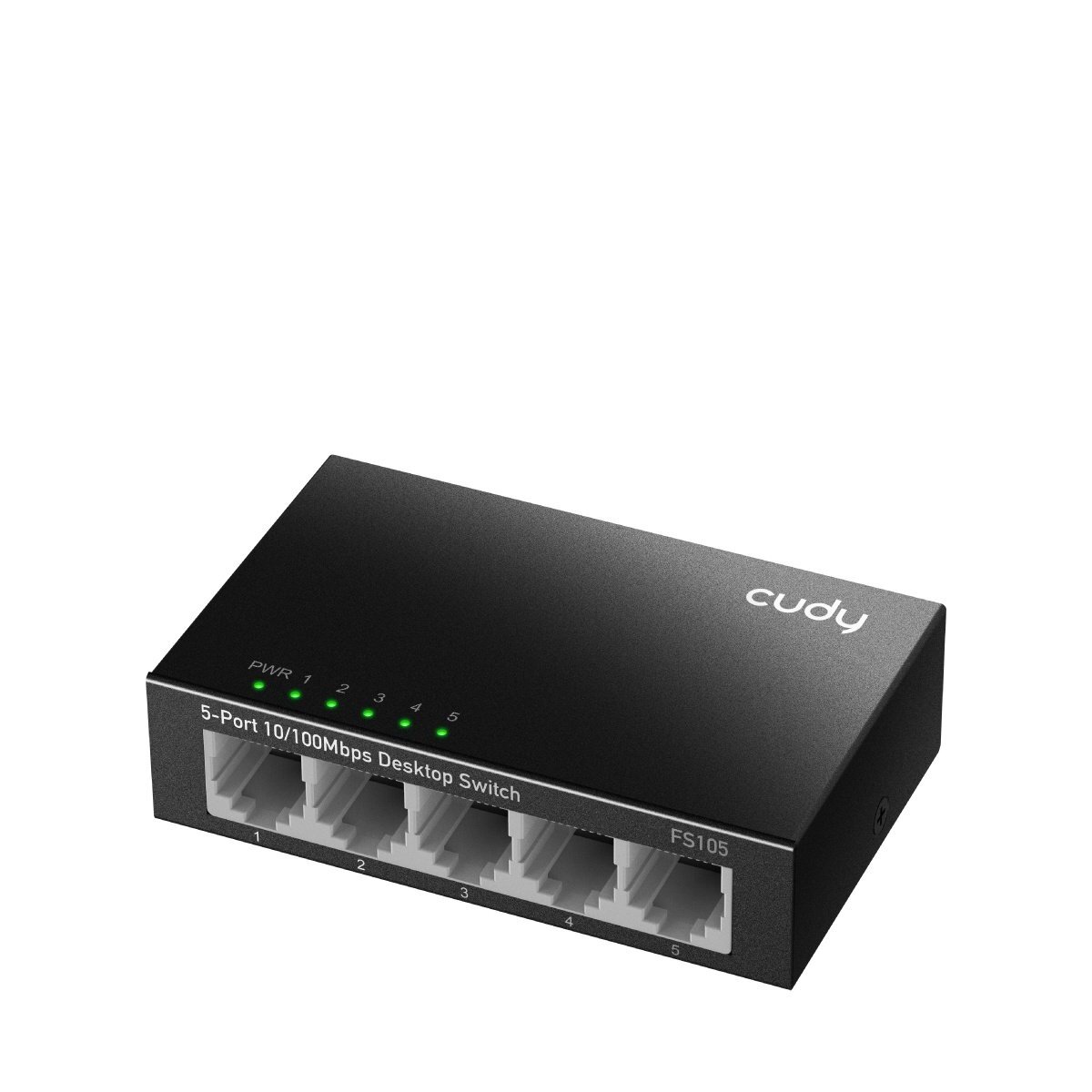

    5-port switch CUDY FS105

    Inquire about this item
    Price 8.47 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionFS105 3.0
    • 10/100 Mbps RJ45 Ports5
    • LED IndicatorsPower, Link/ACT of Each Ethernet Port
    • Power InputDC Jack
    • Copper Speed and DistanceCat. 3+: 100m @ 10 Mbps, Cat. 5+: 100m @ 100 Mbps
    • MAC Address Table512
    • Max Switching Capacity1 Gbps
    • Max Forwarding Rate0.744 Mpps
    • Packet Buffer448 Kbit
    • Basic Power SavingTrue
    • Power MethodsDC
    • DC Input5V⎓0.55A
    • Power AdapterInput: 100-240V~, 50/60Hz; Output: 5V⎓0.55A
    • Max Power Consumption0.9W
    • Idle Power Consumption0.25W
    • 802.3 Protocols802.3i 10BASE-T, 802.3u 100BASE-TX
    • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • Dimensions86.5×53×23 mm (3.41×2.09×0.91 inches)
    • Product Weight106 g (3.74 oz.)
    • Casing MaterialMetal
    • Installation OptionsDesktop, Wall-mount
    • Package ContentFS105, Power Adapter, Installation Guide
