  •   5-port router Cudy WR11000

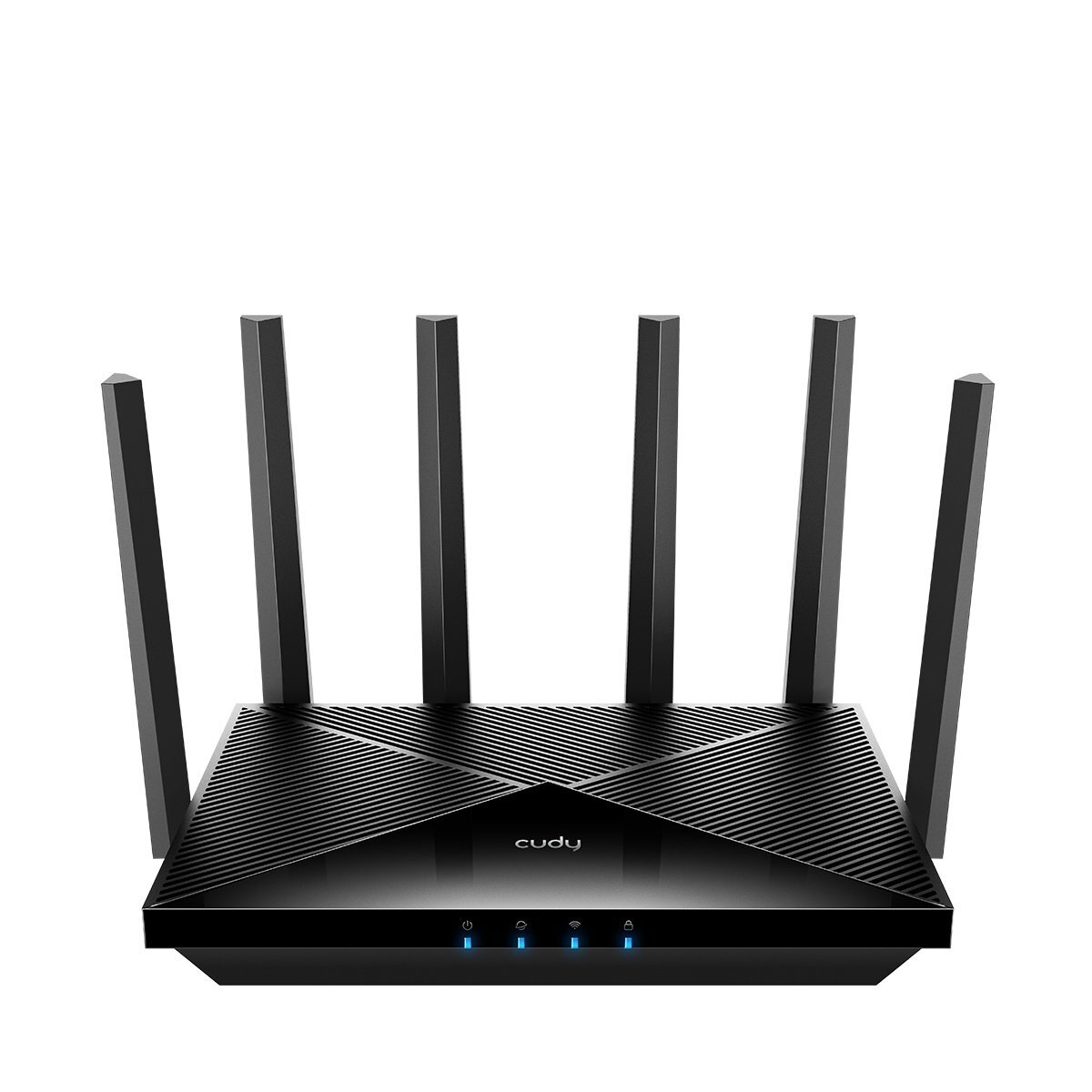

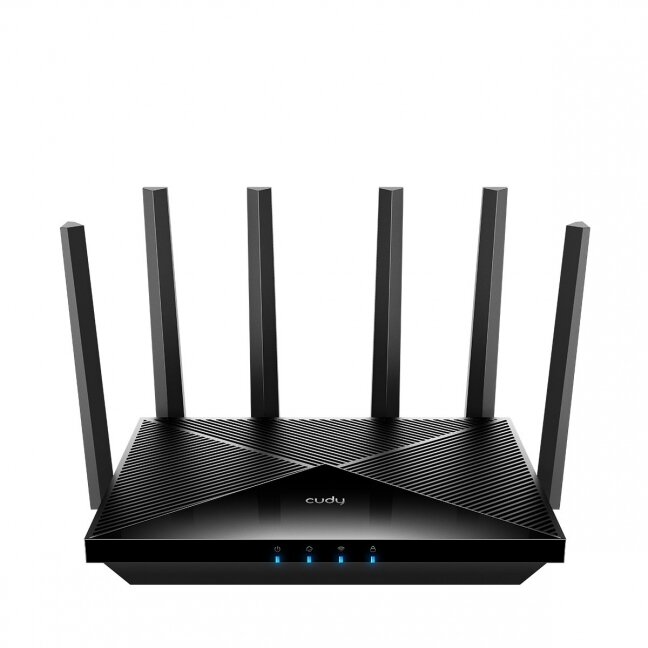

    5-port router Cudy WR11000

    Inquire about this item
    Price 184.81 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionWR11000 1.0
    • CPU ChipsetQualcomm IPQ5322
    • CPU Details1.5 GHz Quad-Core CPU, ARM Cortex-A53
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM512 MB (4 Gbit) DDR4
    • 6 GHz Wi-Fi Speed5765 Mbps
    • 5 GHz Wi-Fi Speed4324 Mbps
    • 2.4 GHz Wi-Fi Speed688 Mbps
    • 6 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas6× Fixed
    • 6 GHz Antenna Gain Max4.5 dBi
    • 5 GHz Antenna Gain Max4.5 dBi
    • 2.4 GHz Antenna Gain Max5 dBi
    • FEM or PA/LNA6 GHz: 2× High-Power, 5 GHz: 2× High-Power, 2.4 GHz: 2× Standard
    • BeamformingTrue
    • Range PerformanceMax: 240 m (787 ft) (Indoor WiFi range varies depending on layout and wall materials)
    • Wall PerformanceTwo wooden walls <10 cm (4''), One concrete wall <20 cm (7'') or two concrete walls <10 cm (4'')
    • 2.5G RJ45 Ports4
    • Ethernet Notes1× WAN port, 3× LAN ports
    • LED IndicatorsSystem, Internet, Wi-Fi, WPS
    • Physical ButtonsPower On/Off Button, WPS Button, Reset Button
    • Power InputDC Jack
    • Power MethodsDC
    • DC Power12V 2A
    • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 2A DC
    • Max Power Consumption22W
    • Idle Power Consumption12W
    • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation OptionsDesktop, Wall-mount
    • Dimensions253×152.5×48.2 mm (9.96×6×1.9 inches)
    • Product Weight643.4 g (22.7 oz.)
    • Package ContentsWR11000, Power Adapter, Ethernet Cable, Installation Guide
