  •   5 Port 4 Poe ports Switch TELTONIKA TSW100

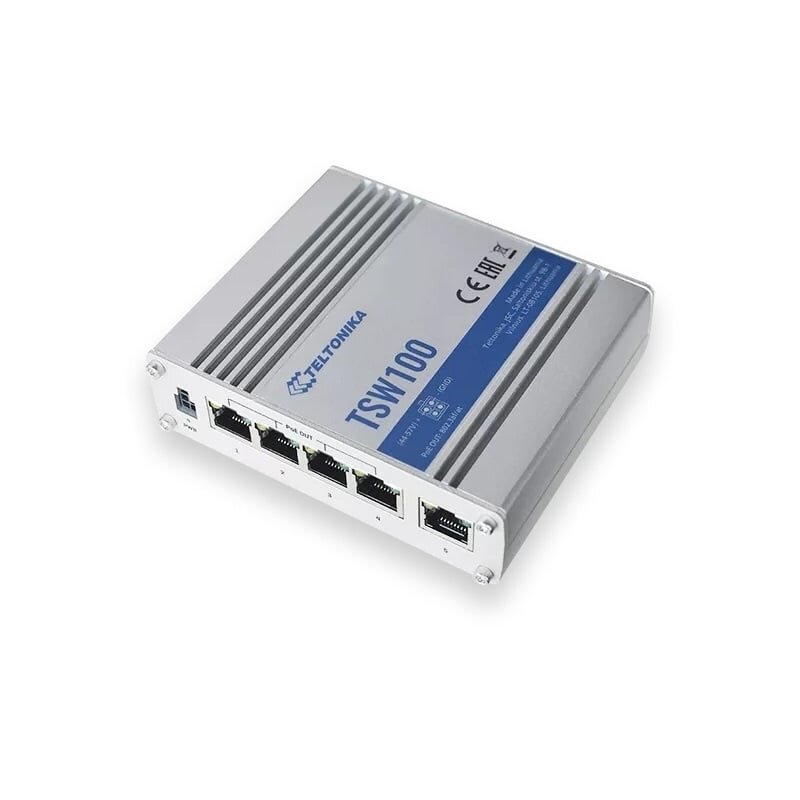

    5 Port 4 Poe ports Switch TELTONIKA TSW100

    Inquire about this item
    Price 84.76 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Teltonika

  • Ethernet
    Lan 5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    PoE
    PoE ports Port 1- 4
    PoE standards 802.3af and 802.3at
    PoE Max Power per Port (at PSE) 30 W
    Total PoE Power Budget (at PSE) 120 W
    Performance specifications
    Bandwidth (Non-blocking) 10 Gbps
    Packet buffer 128 KB
    Jumbo frame support 9216 bytes
    MAC address table size 2K entries
    Power
    Connector 4 pin industrial DC power socket
    Input voltage range 7-57 VDC
    Input voltage range for PoE 44-57 VDC
    Power consumption (idle/max no PoE/max) 2 W/9 W/129 W
    Physical interfaces(ports, leds)
    Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
    Status LED’s 1 x Power LED, 10 x LAN status LED’s
    Power 1 x 4 pin DC connector
    Ground 1 x Grounding screw
    Physical specification
    Casing material Full aluminum housing
    Dimensions (W x H x D) 115 x 32 x 95 mm
    Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
    Operating environment
    Operating temperature -40 °C to +75 °C
    Operating humidity 10 % to 90 % non condensing
