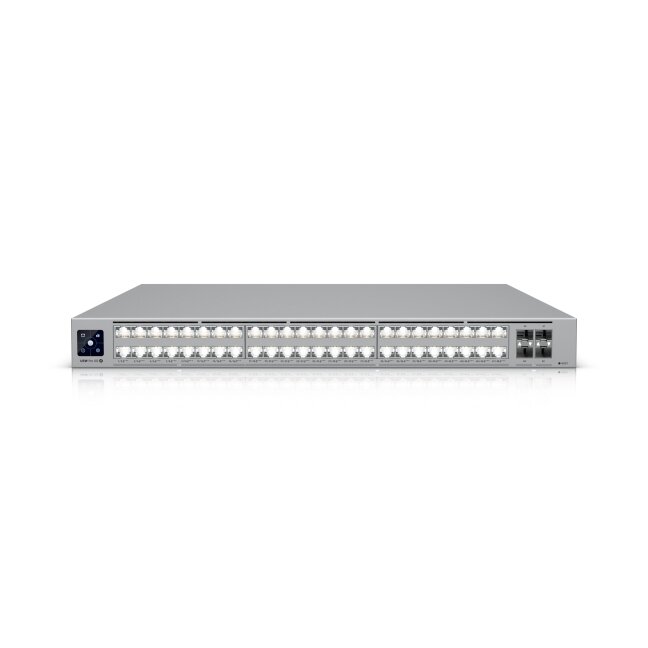

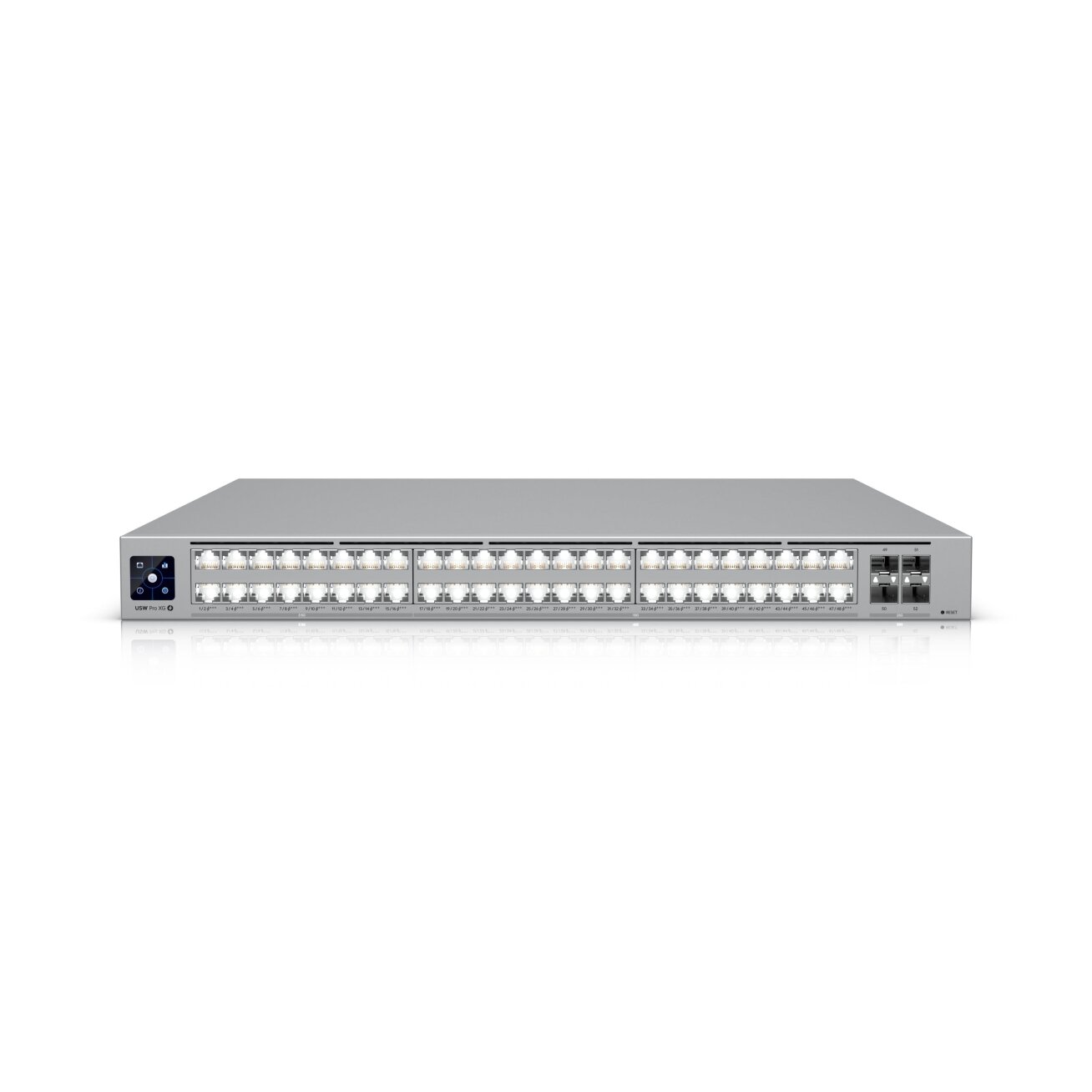

    48-port switch Ubiquiti Unifi USW-Pro-XG-48-PoE (Managed)

    Inquire about this item
    Price 3113.12 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Overview
    • Dimensions442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
    • 2.5 GbE RJ4516 (All PoE+++) (2.5G/1G/100M/10M)
    • 10 GbE RJ4532 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
    • 25G SFP284 (25G/10G/1G)
    • Max. PoE OutputUp to PoE+++
    • Total PoE Availability200-240V AC: 1080W 100-120V AC: 972W
    • RedundancyDC Power Backup
    • Layer 3✓
    • Form FactorRack mount (1U)
    • Etherlighting™✓
    • Performance
    • Switching Capacity920 Gbps
    • Total Non-Blocking Throughput460 Gbps
    • Forwarding Rate684 Mpps
    • Supported VLANs1,000
    • MAC Address Table Size32,000
    • ARP Entries128,000
    • IPv4 Routes256,000
    • IPv4 Static Routes512
    • Packet Buffer Size8 MB
    • IPv4256
    • MAC256
    • Layer 3 Features
    • DHCP Server (Local Networks)✓
    • DHCP Relay✓
    • Inter-VLAN Routing (Local Networks)✓
    • Static Routing (Local Networks)✓
    • Layer 2 Features
    • LACP Port Aggregation✓
    • STP & RSTP✓
    • QoS (DSCP)✓
    • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)✓
    • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)✓
    • IGMP Snooping✓
    • 802.1X Control✓
    • MAC-Based ACLs & Device Isolation✓
    • DHCP Snooping & Guarding✓
    • Egress Rate Limit✓
    • Flow Control✓
    • Storm Control✓
    • Multicast & Broadcast Rate Limiting✓
    • MAC Address Blocking✓
    • IP-Based ACLs & Network Isolation✓
    • MAC-Based Port Restriction✓
    • Port Isolation✓
    • Port Mirroring✓
    • Jumbo Frames✓
    • LLDP-MED✓
    • Voice VLAN✓
    • Loop Protection✓
    • Virtual Network Override✓
    • Hardware
    • PoE+++48
    • PoE15.4W
    • PoE+30W
    • PoE++60W
    • PoE+++90W
    • Max. Power Consumption200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
    • Power Method(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
    • Power Input MethodAC input
    • Power SupplyAC/DC, internal, 1,350W
    • Supported Voltage Range100–240V AC
    • ManagementEthernet AR
    • WeightWithout mounting brackets: 8.7 kg (19.2 lb) With mounting brackets: 8.8 kg (19.4 lb)
    • Enclosure MaterialSGCC steel
    • Mount MaterialSGCC steel
    • Supported Rack Depth482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
    • LCM Display1.3" touchscreen
    • ESD ProtectionAir: ± 30kV, contact: ± 20kV
    • Ambient Operating Temperature-5 to 40° C (23 to 104° F)
    • Ambient Operating Humidity10 to 90% noncondensing
    • Ethernet✓
    • SFP28✓
    • RPS✓
    • NDAA Compliant✓
    • CertificationsCE, FCC, IC, Anatel: 04322-25-08356
    • Software
    • UniFi NetworkVersion 9.1.120 and later
