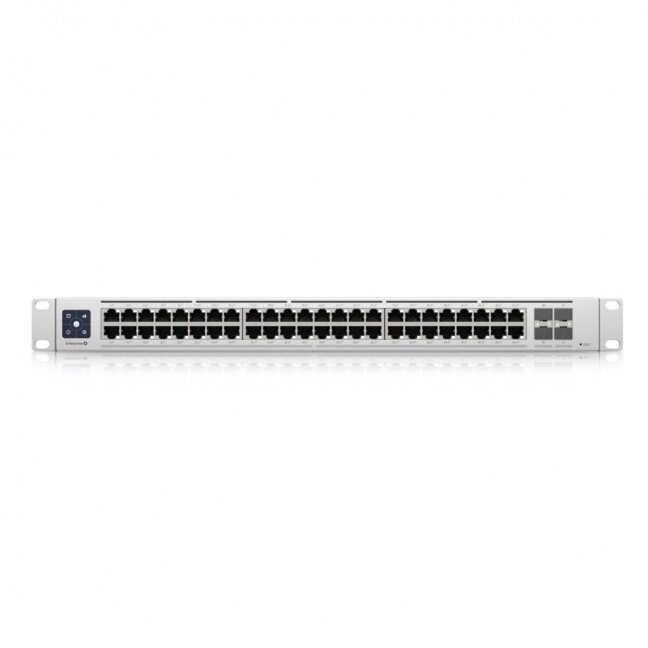

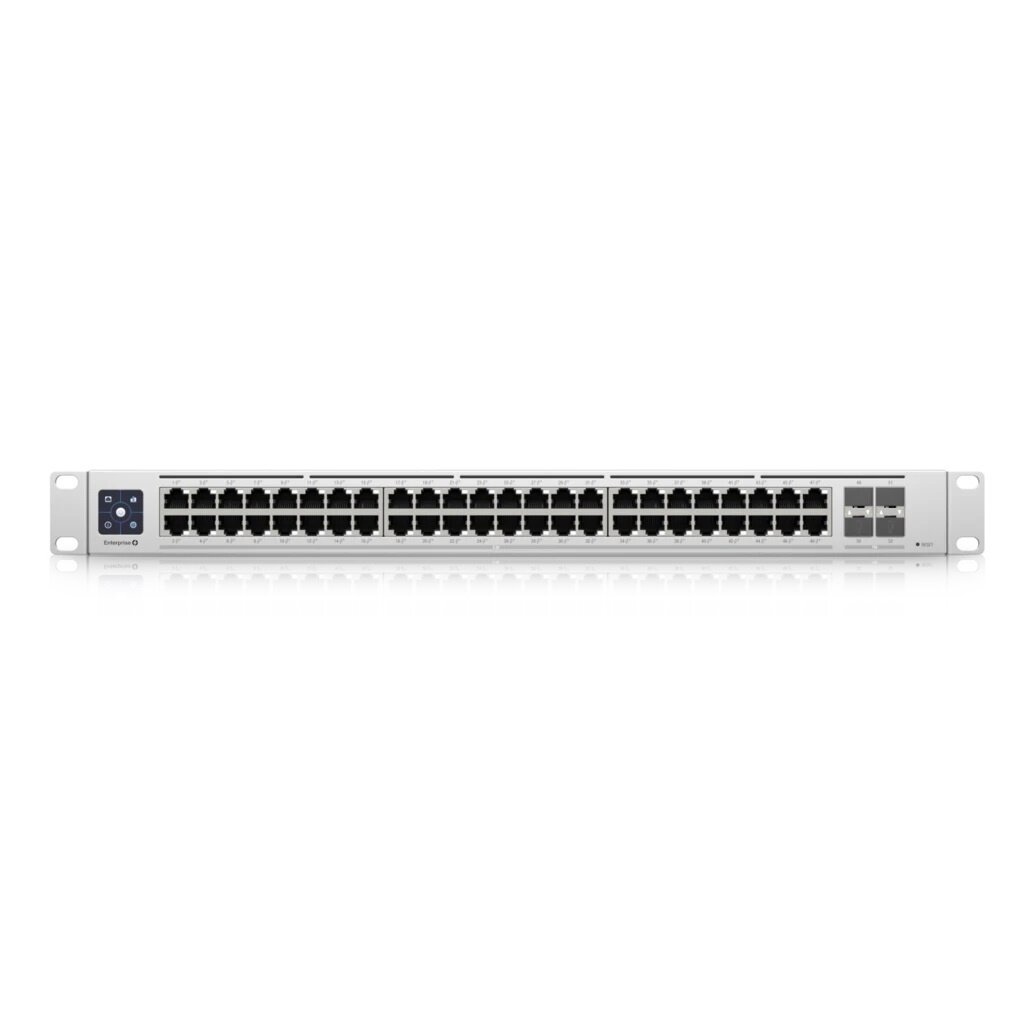

  •   48-port switch Ubiquiti Unifi USW-Enterprise-48-PoE (Managed)

    48-port switch Ubiquiti Unifi USW-Enterprise-48-PoE (Managed)

    Inquire about this item
    Price 1847.38 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs

    • General
    • Dimensions442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
    • WeightWithout mounting brackets: 6.2 kg (13.7 lb), With mounting brackets: 6.3 kg (13.9 lb)
    • Enclosure materialSGCC steel
    • Management interfaceEthernet In-Band
    • Networking interface(48) 2.5 GbE RJ45 ports, (4) 1/10G SFP+ ports
    • PoE interface(48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
    • Total non-blocking throughput160 Gbps
    • Switching capacity320 Gbps
    • Forwarding rate238.095 Mpps
    • Power method(1) Universal input, 100—240V AC, 10A Max., 50/60 Hz, (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
    • Power supplyAC/DC, internal, 100—240V, 10A Max.
    • Supported voltage range100—240V AC
    • Max. power consumption150W (Excluding PoE output)
    • Total available PoE720W
    • Max. PoE wattage per port by PSEPoE+: 34.2W
    • Voltage range PoE modePoE: 44—57V, PoE+: 50—57V
    • ServicesSMB Layer 3 PoE GbE Switch
    • ESD/EMP protectionAir: ± 16kV, contact: ± 12kV
    • LCM display(1) 1.3" color touchscreen
    • ButtonFactory reset
    • Ambient operating temperature-5 to 40° C (23 to 104° F)
    • Ambient operating humidity10 to 90% noncondensing
    • CertificationsCE, FCC, IC
    • Switching FeaturesLayer 2 features IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
    • Layer 3 featuresDHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs
    • LEDsSystem Status, Ethernet Link/activity, SFP+ Link/activity
