  •   48-port switch Ubiquiti Unifi ECS-Aggregation

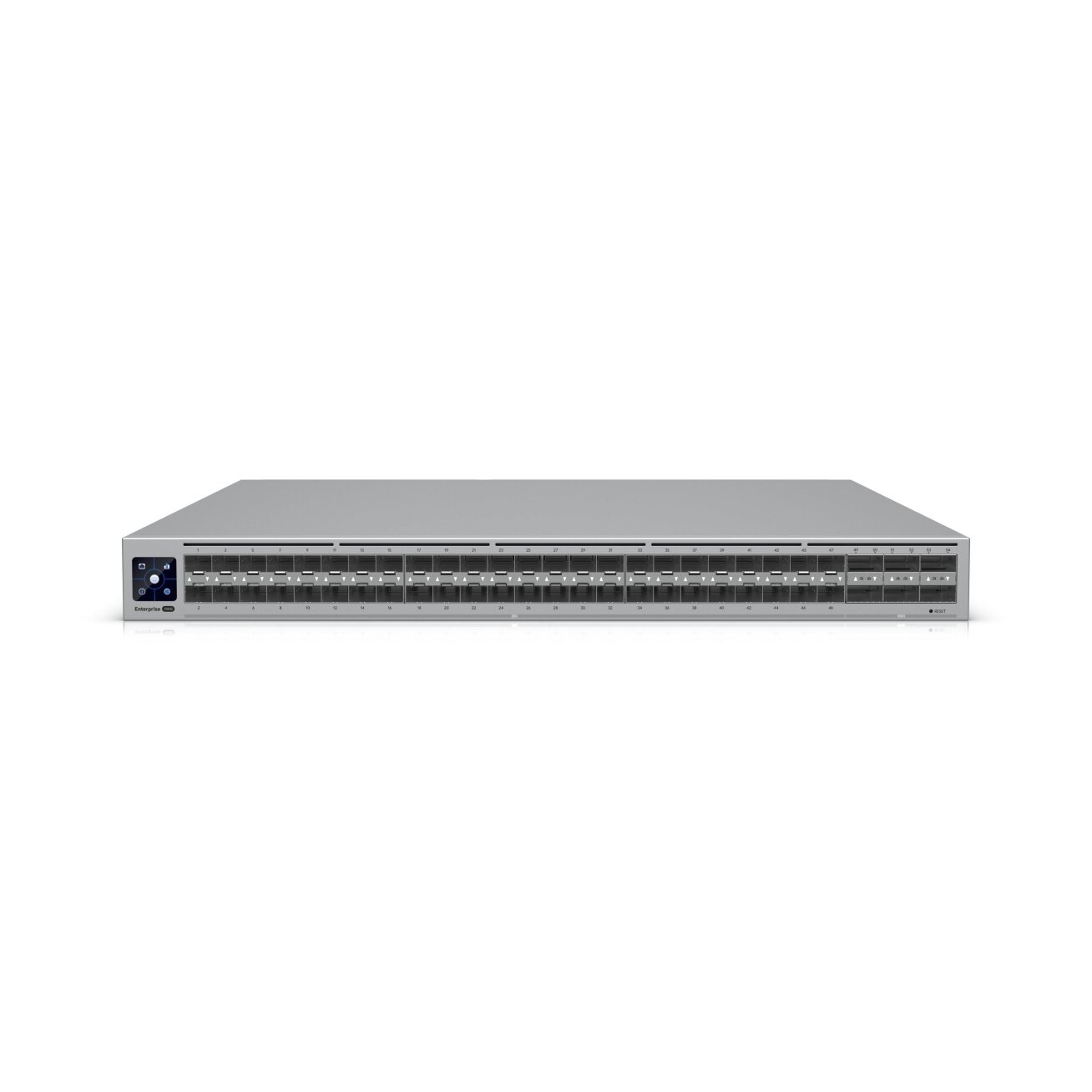

    48-port switch Ubiquiti Unifi ECS-Aggregation

    Inquire about this item
    Price 5513.82 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Overview
    • Dimensions442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
    • 25G SFP2848 (25G/10G)
    • 100G QSFP286 (100G/40G)
    • RedundancyMulti-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
    • Layer 3✓
    • Form FactorRack mount (1U, Full-Depth)
    • Etherlighting™✓
    • Performance
    • Switching Capacity3.6 Tbps
    • Total Non-Blocking Throughput1.8 Tbps
    • Forwarding Rate2.4 Bpps
    • Supported VLANs1,000
    • MAC Address Table Size128,000
    • ARP Entries96,000
    • IPv4 Routes288,000
    • IPv4 Static Routes256
    • Packet Buffer Size24 MB
    • IPv4512
    • MAC512
    • Layer 3 Features
    • DHCP Server (Local Networks)✓
    • DHCP Relay✓
    • Inter-VLAN Routing (Local Networks)✓
    • Static Routing (Local Networks)✓
    • Layer 2 Features
    • LACP Port Aggregation✓
    • MC-LAG✓
    • STP & RSTP✓
    • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)✓
    • IGMP Snooping✓
    • MAC-Based ACLs & Device Isolation✓
    • DHCP Snooping & Guarding✓
    • Egress Rate Limit✓
    • Flow Control✓
    • MAC Address Blocking✓
    • IP-Based ACLs & Network Isolation✓
    • MAC-Based Port Restriction✓
    • Port Isolation✓
    • Port Mirroring✓
    • Jumbo Frames✓
    • LLDP-MED✓
    • Voice VLAN✓
    • Loop Protection✓
    • Hardware
    • Max. Power Consumption340W
    • Power Method(2) Universal input, 100–240V AC, 50/60 Hz
    • Power Input Method(2) AC input, Hot-swappable power modules
    • Power Supply(2) Hot-swappable AC/DC 550W power modules
    • Supported Voltage Range100–240V AC
    • ManagementEthernet AR
    • Heat Dissipation1160 BTU/hr
    • WeightWithout mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb)
    • Enclosure MaterialSGCC steel
    • Mount MaterialSGCC steel
    • Supported Rack Depth482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
    • LCM Display1.3" touchscreen
    • ESD ProtectionAir: ± 12kV, contact: ± 8kV
    • Ambient Operating Temperature-5 to 40° C (23 to 104° F)
    • Ambient Operating Humidity10 to 95% noncondensing
    • SFP28✓
    • QSFP28✓
    • NDAA Compliant✓
    • CertificationsCE, FCC, IC, Anatel: 01327-25-08356
    • Software
    • UniFi NetworkVersion 8.5.6 and later
