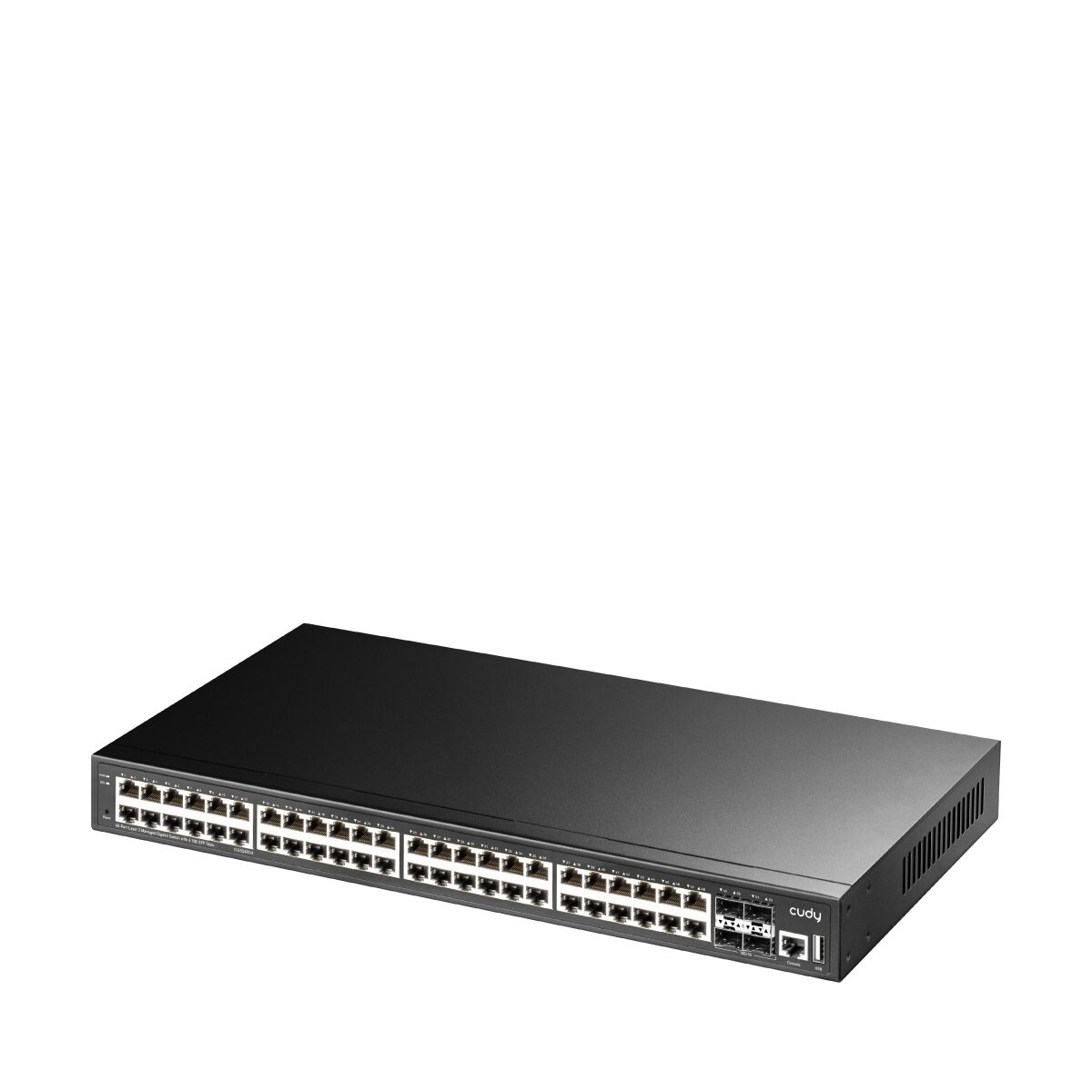

    48-port managed switch CUDY GS5048S4

    Inquire about this item
    Price 520.81 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • ModelGS5048S4
    • Ethernet Ports48× 10/100/1000 Mbps RJ45 ports, 4× 10G SFP+ ports, 1× RJ45 Console port, 1× USB port
    • Switching Capacity176 Gbps
    • Forwarding Rate131 Mpps
    • MAC Address Table32K
    • Packet Buffer16 Mbit
    • Jumbo Frame12 KB
    • Memory512 MB DDR SDRAM
    • Flash Memory32 MB
    • VLAN Support4096 VLANs (802.1Q, Port-based, MAC VLAN, IP VLAN, Voice VLAN, Private VLAN, Hybrid VLAN, GVRP)
    • Layer 3 FeaturesIPv4 & IPv6 address config, Static Routing, RIP v1/v2, OSPF, DHCP Server, Relay, Snooping, ARP/ND configuration
    • Multicast SupportIGMP v1/v2/v3 Snooping, MLD v1/v2, Layer 2/3 IPv4/IPv6 multicast, fast leave, querier, suppression
    • Spanning TreeSTP (802.1D), RSTP (802.1W), MSTP (802.1S), BPDU protection, ERPS
    • QoS Features802.1p, DSCP, Port priority, 8 queues, SP, WRR scheduling, traffic shaping, QoS remarking
    • Security Features802.1X, AAA, RADIUS, TACACS+, DoS protection, IP-MAC-Port-VLAN binding, ARP detection, DHCP attack protection, HTTPS, SSH
    • Access ControlL2–L4 packet filtering, Port mirroring, storm suppression, isolation, login restriction by IP/MAC/Port
    • Link AggregationStatic & LACP (max 32 groups, 8 ports each), load balancing by IP, MAC, or mixed mode
    • Management InterfacesWeb (HTTP/HTTPS), CLI (Telnet, SSH v1/v2, Console), SNMP v1/v2/v3, RMON v2, LLDP, SNTP, logs, monitoring
    • DiagnosticsPing, Traceroute, cable detection, CPU/memory monitoring, system logs, alarm classification
    • Power SupplyInput: AC 100–240V, 50–60Hz
    • Operating Temperature-10°C ~ 50°C
    • Storage Temperature-40°C ~ 70°C
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • Dimensions440×280×44 mm
    • Surge ProtectionCommon: 4KV, Differential: 2KV
    • ESD ProtectionAir: 8KV, Contact: 6KV
