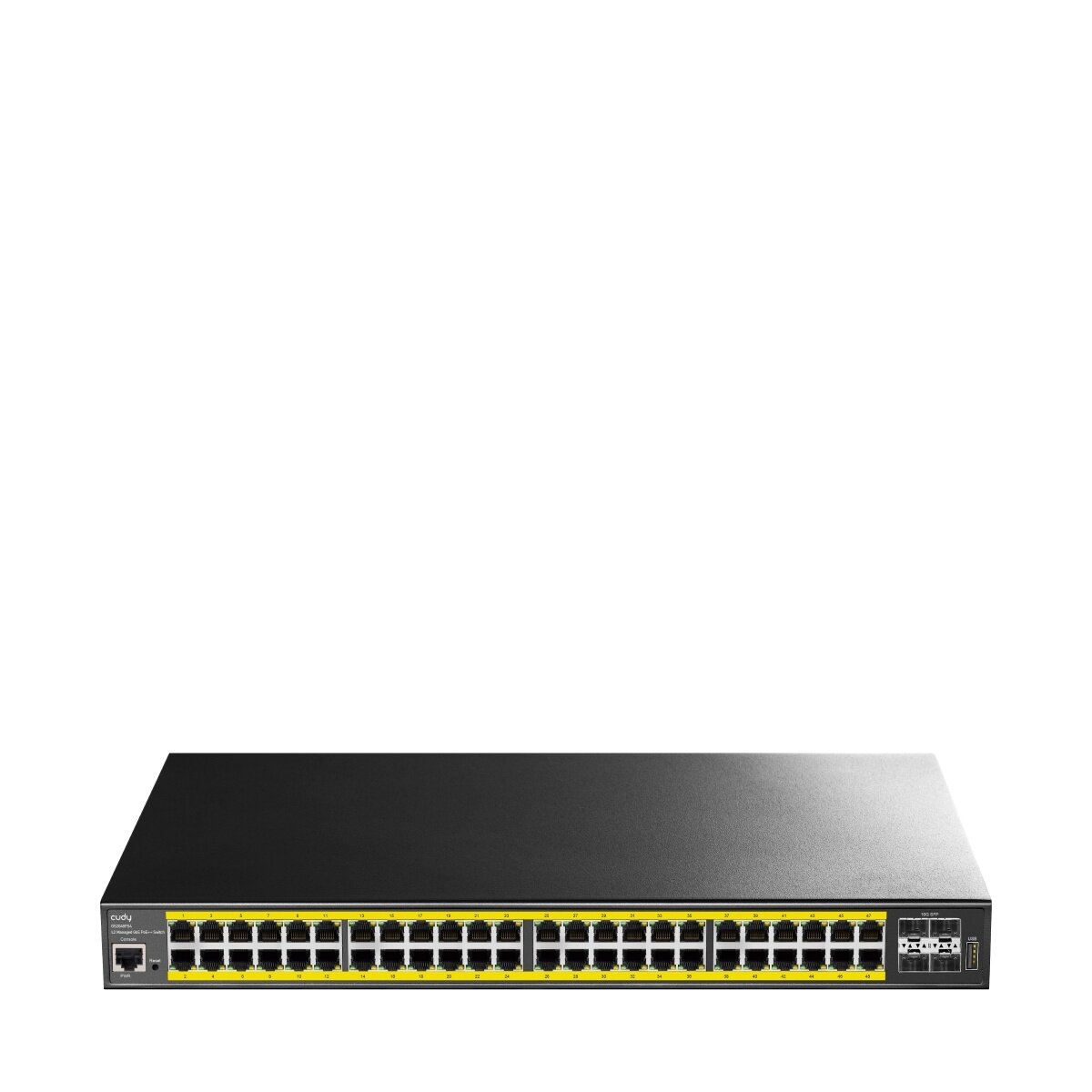

48-port managed switch CUDY GS2048PS4-720W
-
- General
- ModelGS2048PS4-720W
- Ethernet Ports48× 10/100/1000Base-T PoE++ ports, 4× 10Gigabit SFP+ ports, 1× Console port, 1× USB port, 1× Reset port
- PoE StandardsIEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (60–90W)
- PoE Port AllocationPorts 1–4 support af/at/bt, Ports 5–48 support af/at
- PoE Output VoltageDC 48–55V
- PoE Power Budget720W (Total), 750W Max Power Supply
- Power Pin Assignmentaf/at: Pins 1/2 (+), 3/6 (–); bt: adds Pins 4/5 (+), 7/8 (–)
- Switching Capacity176 Gbps
- Forwarding Rate130.944 Mpps
- MAC Address Table32K
- Jumbo FrameUp to 12 KB
- Packet Buffer16 Mbit
- Memory2 GB DDR3 (800 MHz)
- Flash64 Mbit
- VLAN Support4096 VLANs, including port-based, MAC-based, IP-based, protocol-based, Voice VLAN, QinQ, VLAN mapping
- Layer 2 FeaturesPort isolation, mirroring, storm suppression, LACP (128 groups, 8 ports each), flow control, MAC filtering, learning limits
- Layer 3 FeaturesStatic routing, RIP v1/v2, OSPF v2, ARP, VRRP, VLAN interfaces (up to 32)
- Multicast SupportIGMP Snooping v1/v2/v3, MVR, GMRP, static multicast MAC
- QoS802.1p, DSCP, ACL-based classification, 8 queues, WRR, RR, SP, WDRR scheduling, traffic shaping, mirroring, statistics
- Security Features802.1X, AAA, RADIUS, MAC filtering, ARP binding, port security, DoS protection, CPU protection
- Management InterfacesCLI, Console, Telnet, Web UI, SNMP v1/v2c, RMON, USB config, TFTP, debug, ping, traceroute
- DHCP FeaturesClient, Snooping, Relay, Server, Option 82
- Protocols SupportedIEEE 802.3/3u/3ab/3x/3z/3af/3at/3bt/3ad/az, 802.1Q/p/X, LLDP, UDLD, STP/RSTP/MSTP, EAPS, ERPS
- Operating Temperature0°C ~ 40°C
- Storage Temperature-40°C ~ 70°C
- Operating Humidity5% ~ 95%, non-condensing
- CoolingBuilt-in fan
- Input Voltage100–240V AC, 50/60 Hz
- Dimensions445×285×45 mm
- MTBF100,000 hours
