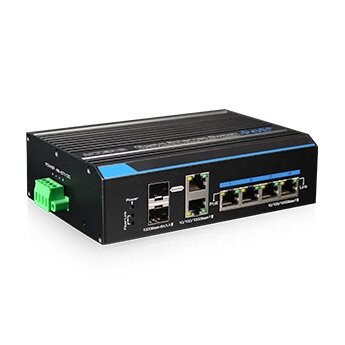

4 ports, 4 PoE ports switch UTEPO UTP7204GE-HPOE(MS60)

Downlink Ports

4* 10/100/1000Base-T PSE

Uplink Ports

2*1000Base-X SFP Port and 2*10/100/1000Base-T(1*1000Base-X or 10/100/1000Base-T is combo port)

Network Standard

IEEE802.3, IEEE802.3u, IIEEE802.3ab, IEEE802.3z, EEE802.3 X

Switch Capacity

14Gbps

Throughput

10.4Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

1Mbit

MAC Table

8K

PoE Standard

802.3af/at ,Microsemi 60W HPoE

PsE Type

End-span

Power Pin Assignment

1/2(+)，3/6(-)

PoE Power Output

44~57V DC , 1st port 60 W HPoE ,2~4 ports 30W standard PoE

PoE solution

Microsemi

Lightning protection

6KV Execute: IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Power Supply

DC 48~57V

Power Dissipation

＜6W

Work temperature

-40℃~75℃

Storage temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension（L×W×H）

163mm×110mm×46mm

Weight

530g

Regulator

CE, FCC, ROHS
