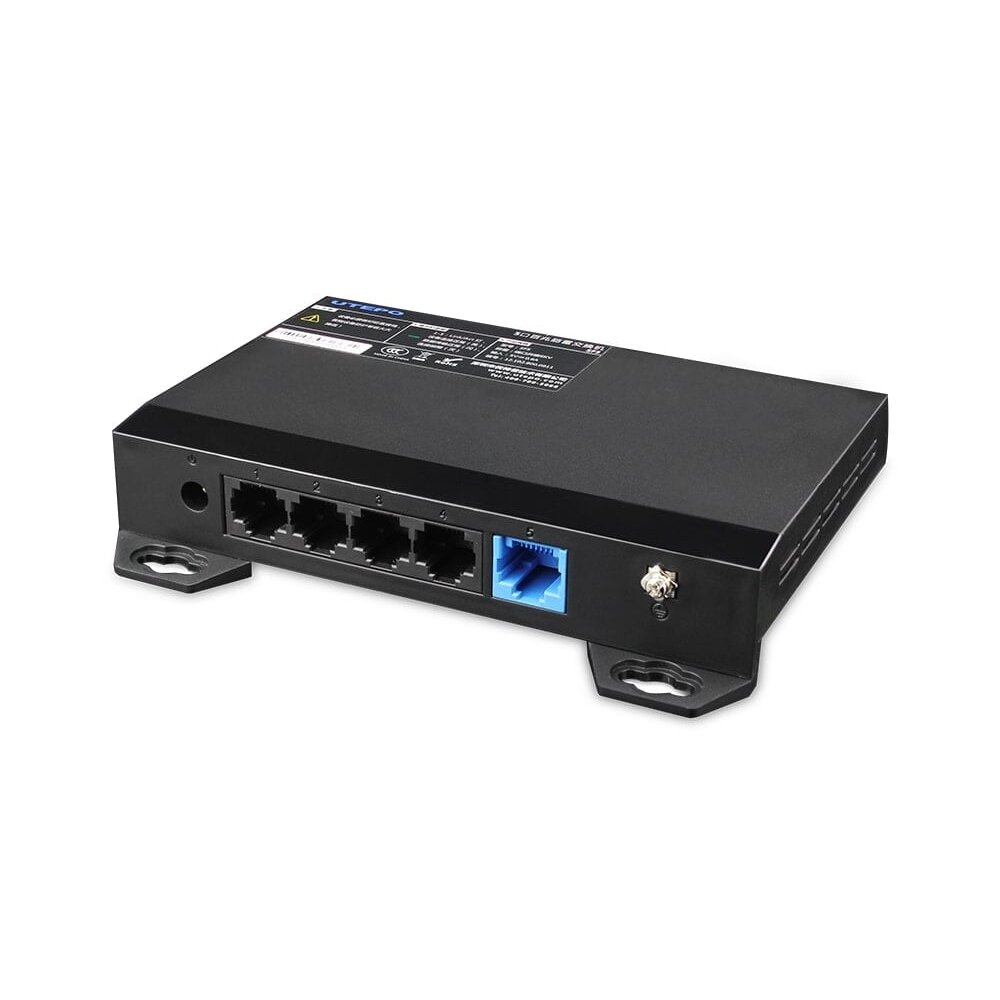

4 ports, 4 PoE ports switch UTEPO Soho SF5P-L
ManufacturerUtepo-
Model SF5P-L Downlink Port 4*10/100Base-TX Ethernet Ports (PoE) Uplink Port 1*10/100Base-T Ethernet Port Network Standard IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af/at Switch Fabric 1Gbps Packet Forwarding Rate 0.74Mpps Interface Buffer 448 Kbits MAC Address 1K Working Mode Mode 1: All port can be communicated freely.
Mode 2: Port 1-3 are isolated respectively, but can communicate with Port 4-5.
Mode 3: Port 1-4, 10M, with long transmission distance of 250 meters.
PoE Standard 802.3af/at(PSE) PoE Power PinAssignment 1/2(+), 3/6(-) PoE Power Output PoE power output for single port ≤30W (52V DC); Total PoE power budget ≤37W Surge Immunity Common Mode, 6KV, IEC61000-4-5 ESD Immunity Contact discharge 6KV, air discharge 8KV. IEC61000-4-2 Input Power DC 52V0.7ma Operating Temperature 0℃~40℃ Storage Temperature -40℃~85℃ Operating Humidity 5%-95% (Non-condensing) Dimension (L*W*H) 140*104*28mm (L*W*H) Certification CE, FCC, RoHS
