  •   4 port switch Wi-Tek WI-PCES206-O

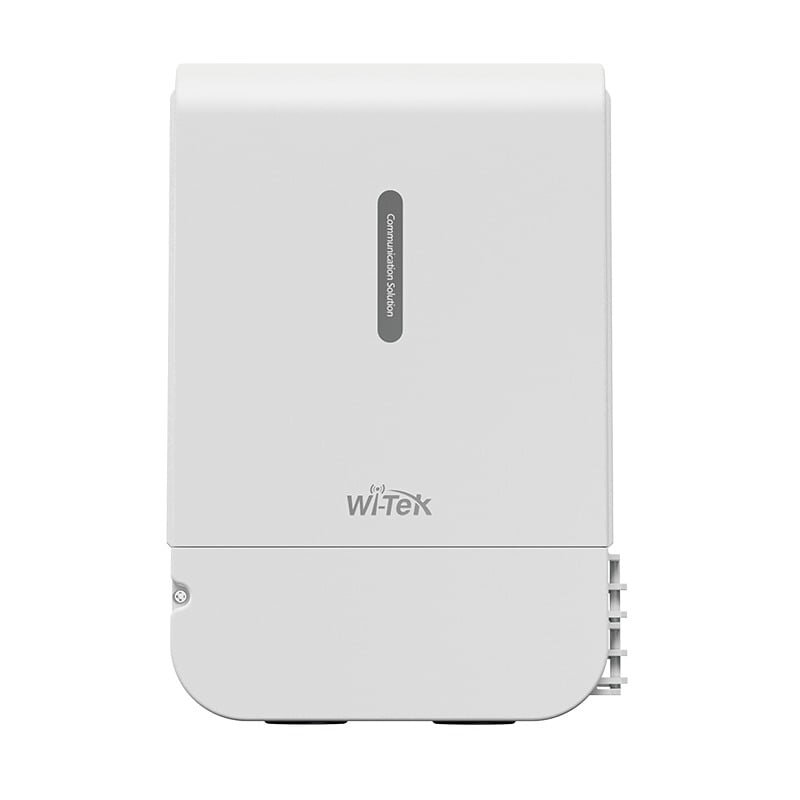

    4 port switch Wi-Tek WI-PCES206-O

    Inquire about this item
    Price 59.14 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    WI-TEK

    • General
    • ModelWI-PCES206-O
    • Hardware VersionV1
    • PoE Ports4 x 10/100Mbps RJ45 PoE Ports (Ports 1–4)
    • PoE StandardPort 1–2: Hi-PoE 45W, Port 3–4: 802.3af/at 30W
    • PoE Pin Assignment1/2(+), 3/6(-)
    • Uplink Ports2 x 10/100Mbps Ethernet Ports
    • PoE Power Budget60W
    • Standards and ProtocolsIEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
    • Forwarding ModeStore and Forward
    • Switching Capacity1.2Gbps
    • Packet Forwarding Rate0.89Mpps
    • MAC Address Table8k
    • Packet Buffer Memory4Mbit
    • Jumbo Frame9216 Byte
    • Input Power100~240V AC 50/60Hz
    • Power ConsumptionIdle: 2.7W, Full Load: 62.7W
    • LED IndicatorsPWR(Orange): On=Normal, Off=Power off/failure; PoE(Orange): On=Enabled, Off=Disabled; Link(Orange): On=Connected, Off=Disconnected, Blinking=Data Transmission
    • DIP Switch1. Extend (PoE up to 250m @10Mbps), 2. VLAN (PoE ports to Uplink only), 3. PD Alive (PoE watchdog for auto reboot)
    • Reset ButtonHold >5 sec. to restore factory defaults
    • Fan QuantityFanless
    • Dimensions314 × 210 × 89 mm
    • Package Dimensions405 × 253 × 97 mm
    • WeightNet: 1.06kg, Package: 1.77kg
    • InstallationWall-mounted, Pole-mounted
    • Surge ImmunityIEC 61000-4-5: Common mode 4kV, Differential mode 2kV
    • ESD ProtectionIEC 61000-4-2: Contact discharge 6kV, Air discharge 8kV
    • CertificationCE, FCC, RoHS, UKCA, RCM
    • Operating Environment-30℃ to 60℃ (-22℉ to 140℉); 10–90% RH non-condensing
    • Storage Environment-40℃ to 70℃ (-40℉ to 158℉); 5–90% RH non-condensing
    • Software FeaturesPort Statistics, Cable Diagnostics, Port Mirroring, Port Isolation, Jumbo Frame, MAC Search/List, Port Reboot, Storm Control, Bandwidth Control, VLAN (1–4094), PD Alive, Extend PoE
    • Cloud ManagementWi-Tek Cloud & APP management, Remote Access, Intelligent Network Monitoring, Automatic Device Discovery
    • Package ContentsSwitch x1, Power Cord x1, Rubber Plug x2, Wall Hanging Sticker x1, Metal Tie x2, Quick Installation Guide x1, Optional: M36 Waterproof Gland x2
