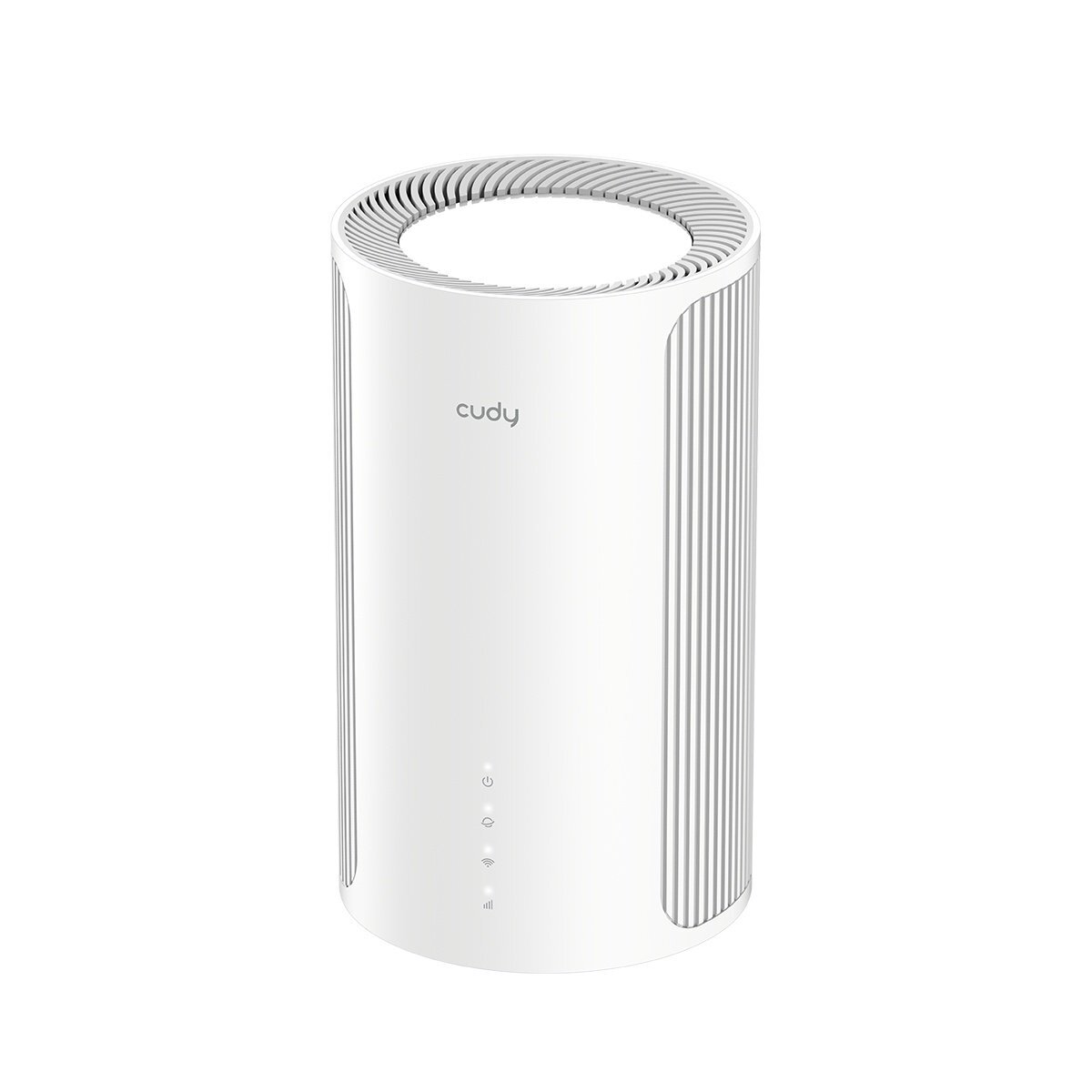

  •   3-port router Cudy P4 (AX3000, WiFi 6, NanoSIM)

    3-port router Cudy P4 (AX3000, WiFi 6, NanoSIM)

    Inquire about this item
    Price 274.84 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionP4 1.0
    • CPU Details1.0 GHz Dual-core, ARM Cortex-A53
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM512 MB (4 Gbit) DDR3
    • Cellular Standards5G Rel. 16, DL 4G Cat. 19 / UL 4G Cat. 18
    • Cellular Antennas6× Internal, 2× SMA Connectors for Customized Antennas
    • Detachable Cellular Antennas ConnectorSMA Female
    • SIM Options1× Nano SIM Slot, eSIM (optional)
    • Available VersionsEU
    • EU Version Cellular RegionEurope, Middle East, Africa, Asia-Pacific (Excl. JP, CN), Brazil
    • Max DL Speed3.4 Gbps (NSA), 2.4 Gbps (SA)
    • Max UL Speed550 Mbps (NSA), 900 Mbps (SA)
    • Advanced Cellular FeaturesDL/UL 4CA, DL 4×4, UL 2×2 MIMO
    • Cellular Bands5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78, LTE-FDD: B1/3/5/7/8/20/28/32/71, LTE-TDD: B38/40/41/42/43/71, WCDMA: B1/5/8
    • 5 GHz Wi-Fi Speed2402 Mbps
    • 2.4 GHz Wi-Fi Speed574 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi AntennasInternal
    • 5 GHz Antenna Gain Max6.78 dBi
    • 2.4 GHz Antenna Gain Max4.19 dBi
    • BeamformingTrue
    • FEM or PA/LNA5 GHz: 2× External, 2.4 GHz: 2× External
    • Range PerformanceMax: 170 m (558 ft) (Indoor WiFi range varies depending on layout and wall materials)
    • Wall PerformanceTwo wooden walls <10 cm (4''), One concrete wall <20 cm (7'')
    • Physical ButtonsWPS Button, Reset Button
    • Gigabit RJ45 Ports3
    • Ethernet Notes1× WAN/LAN configurable port, 2× LAN ports
    • LED IndicatorsPower, Internet, Wi-Fi, Cellular
    • Power InputDC Jack
    • Power MethodsDC
    • DC Power12V 2.5A
    • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 2.5A DC
    • Max Power Consumption21.7W
    • EMS ProtectionESD: Contact: 4kV; Air: 8kV
    • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • CertificationsFCC, CE
    • DimensionsΦ116×202 mm (Φ4.57×7.95 inches)
    • Product Weight656.0 g (23.14 oz.)
    • Installation TypeDesktop
    • Package ContentsP4, Power Adapter, Ethernet Cable, Installation Guide
