  •   28-port switch Hikvision DS-3E3728-H (managed L2, 4xSFP+)

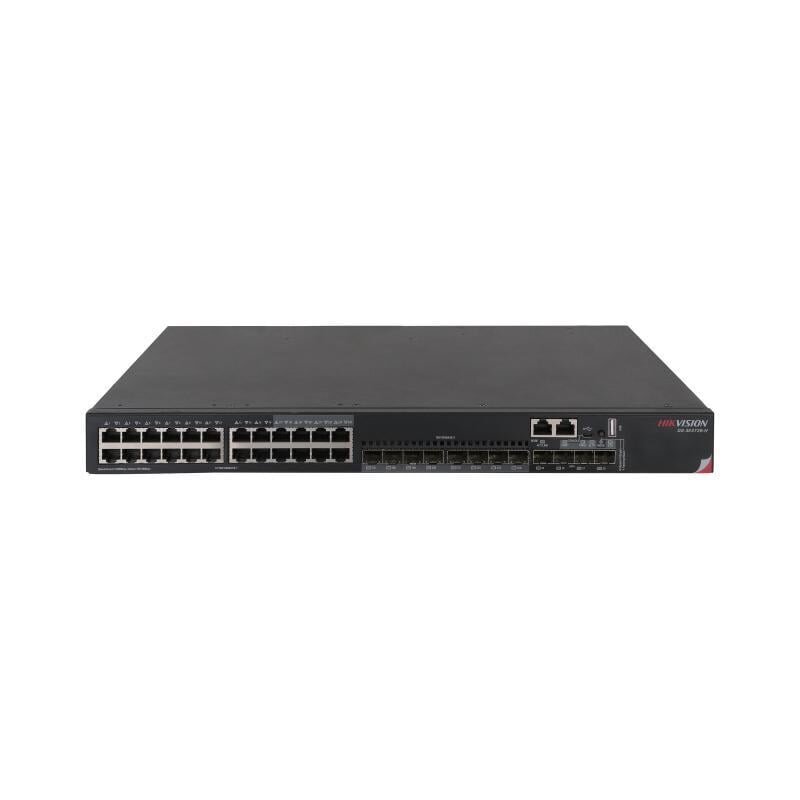

    28-port switch Hikvision DS-3E3728-H (managed L2, 4xSFP+)

    Inquire about this item
    Price 1428.74 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision
    • General
    • Dimensions (mm)440×360×43.6
    • Operating Humidity5% to 95% (no condensation)
    • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
    • Ports24×10/100/1000BASE-T ports (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ ports
    • Weight≤6.7 kg
    • Key Feature
    • ACLPacket filtering at L2～L4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses Time range-based ACL VLAN-based ACL Bidirectional ACL
    • Link aggregation1G/10G/40G port aggregation Static aggregation/Dynamic aggregation Cross-device aggregation
    • Management maintenanceConfiguration through CLI, Telnet, and console port Ping, Tracert Loading and upgrading through XModem/FTP/TFTP SNMPv1/v2/v3 and Web-based NMS Remote monitoring (RMON ) alarm, event, and history recording NTP
    • Ring network protocolSTP/RSTP/MSTP
    • SecurityHierarchical user management and password protection Guest VLAN 802.1X authentication, centralized MAC authentication RADIUS authentication MAC address learning limit Port isolation IP Source guard Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks IP/Port/MAC binding
    • VLANPort-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ
    • VxLANVXLAN Layer 2 switching VXLAN routing switching VXLAN gateway
    • Network Parameters
    • MulticastIGMP Snooping /MLD Snooping、Multicast VLAN
    • Packet Forwarding RateWhole-Device Performance: 444.91 Mpps Port Performance: 95.23 Mpps
    • QoS802.1p DSCP remarking Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR Committed access rate (CAR) Packet redirection Port rate limit (receiving and transmitting)
    • Switching CapacityWhole-Device Performance: 598 Gbps Port Performance: 128 Gbps
    • Power
    • Power ConsumptionSingle AC input: 87 W Dual AC inputs: 91 W Single DC input: 88 W Dual DC inputs: 95 W
    • Power InputAC：100V～240V AC，50/60Hz DC： -48V～-60V DC
    • Software Function
    • Port MirroringPort mirroring RSPAN Traffic mirroring
    • Routing FeatureStatic routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6
