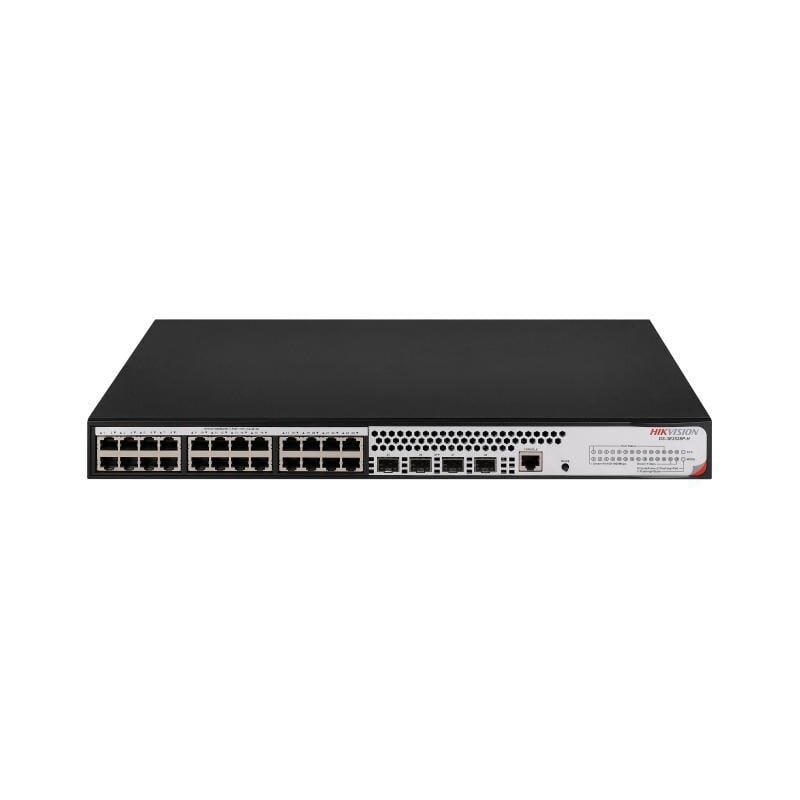

28-port, 24 PoE port switch Hikvision DS-3E2528P-H (managed L2, 4xSFP, 370W)
ManufacturerHikvision-
- General
- Dimensions (mm)440×260×44
- Operating Humidity10% to 95% (no condensation)
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Ports24×10/100/1000BASE-T ports (POE+), 4×1000Base-X SFP ports
- Weight4.5 Kg
- Key Feature
- ACLACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL
- DHCPDHCP Relay DHCP Client DHCP Snooping
- Management maintenanceCommand line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow NQA NTP clock System operating logs
- SecurityHierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression
- VLAN802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
- Network Parameters
- MulticastIGMP V1/V2/V3 snooping PIM Snooping Multicast VLAN IPv6 multicast setting
- Packet Forwarding RateWhole-Device Performance: 41.66 Mpps Port Performance: 41.66 Mpps
- QoSSP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
- Switching CapacityWhole-Device Performance: 56 Gbps Port Performance: 56 Gbps
- Power
- Power Consumption448W
- Power InputAC：100V～240V AC，50/60Hz
- Software Function
- IPv6IPv6 static routing and dual-stack DHCPv6 Client and DHCPv6 Snooping ND and PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
- ReliabilityEthernet OAM DLDP Smart Link Monitor Link
- Routing FeatureStatic routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6
