  •   26 ports, 24 PoE ports switch UTEPO UTP3226TS-PSB

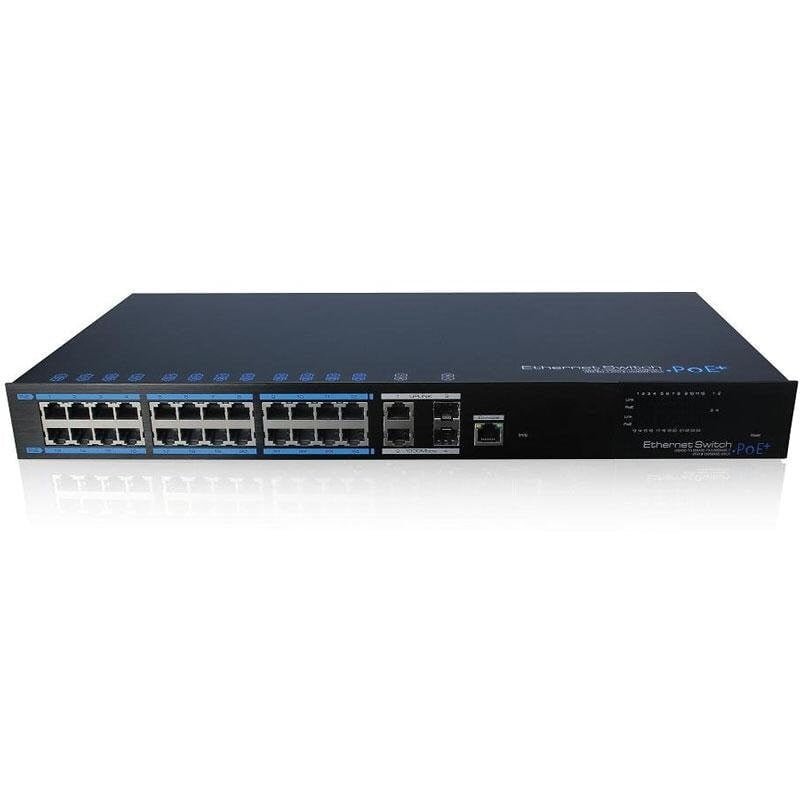

    26 ports, 24 PoE ports switch UTEPO UTP3226TS-PSB

    Inquire about this item
    Price 292.36 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • Sąsaja
    • Downlink Ports24*10/100 Base-TX PoE RJ-45(Auto-MDI/MDI-X)
    • Uplink Ports 2*10/100/1000 Base-T RJ-45, 1*1000 Base-X SFP (combo)
    • PoE management port1* RJ-45
    • Led Indicators1*PWR Indicator 24*Downlink Port Link Indicators 24*Downlink Port PoE Indicators 2*Uplink Port Link Indicators 1*CCTV Mode Indicator 10*PoE Status Indicators
    • Cable Cat5 or better
    • Dimensions (W*D*H)442mm*285mm*44mm
    • Svoris be įpakavimo4.1kg
    • Įeinanti įtampa 100~240V AC
    • Energijos sunaudojimas ≤420W (Full load including PoE)
    • MontavimasRack/desktop/wall mounted
    • MedžiagaMetal shell
    • Switch Property
    • Forwarding ModesStore and Forward
    • Perjungimo talpa8.8Gbps / non-blocking
    • Paketų persiuntimo greitis5.4Mpps
    • MAC Table4K
    • Packet Buffer2.75Mbit
    • PoE
    • PoE Power Supply TypeEnd-Span
    • PoE standartasIEEE 802.3af/at (PSE)
    • PoE Pin Assignment1/2(+), 3/6(-)
    • PoE Power išvestis46~55V DC
    • PoE Budget30W max for each port, 390W max
    • Standard Conformance
    • Standards ComplianceIEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet
    • EMCFCC 47 CFR Part 15 Class A EN55032 Class A IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV IEC61000-4-3, Level 2: 3V/m IEC61000-4-4, Level 2: 1kV IEC61000-4-5, line to earth: 6kV IEC61000-4-6, Level 2 (0.15MHz~80MHz)
    • LVDEN 62368-1:2014 EN 62328-A11:2017
    • OperatingTemperature: -10℃~50℃ Relative Humidity: 5%~95% (Non-condensation)
    • SaugyklaTemperature: -40℃~75℃ Relative Humidity: 5%~95% (Non-condensation)
    • Sertifikatai CE, FCC
    • PoE ManagementPoE Setting Total Power Status PoE Status and Control
