  •   26-port switch HP Aruba Instant ON 1600 JL806A

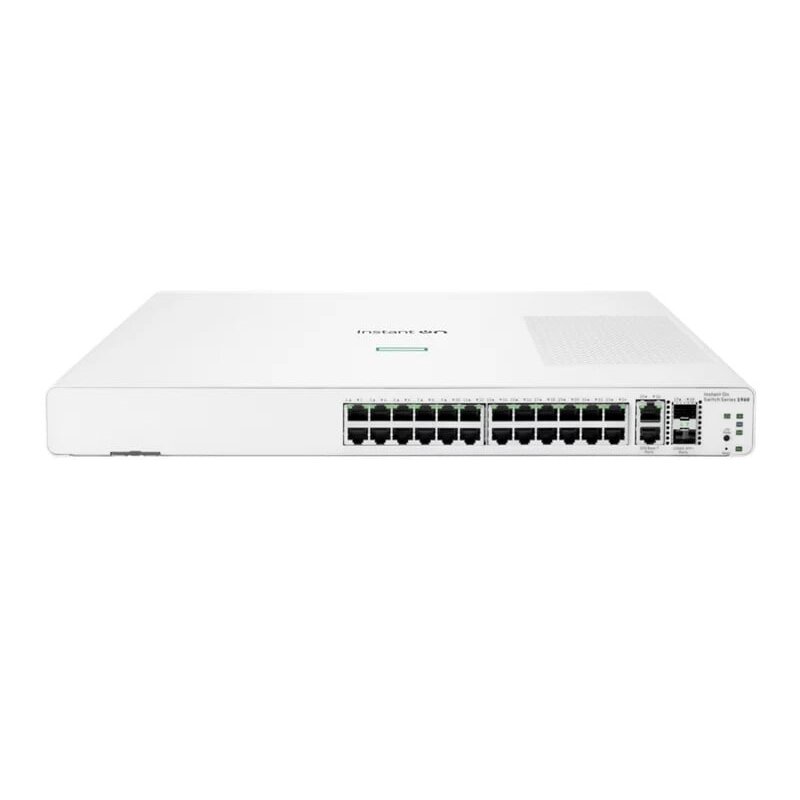

    26-port switch HP Aruba Instant ON 1600 JL806A

    Inquire about this item
    Price 741.86 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Product NumberJL806A
    • Differentiator24 x 1G ports, 2 x SFP+ 10 GbE, 2 x 10GBASE-T uplinks
    • Ports24 RJ-45 autosensing 10/100/1000BASE-T ports (IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.an 10GBASE-T)
    • Duplex support100BASE-TX: half/full; 1000BASE-T: full only; 10GBASE-T: full only
    • Uplink ports2 SFP+ 10 GbE, 2 RJ-45 autosensing 100/1000/10GBASE-T ports
    • Memory and processorSingle-Core ARM v7 Cortex-A9 @800 MHz, 1 GB DDR3 RAM, 512 MB NAND flash
    • Packet buffer size1.5 MB
    • Throughput95 Mpps
    • Switching capacity128 Gbps
    • Stacking capabilities4H height
    • Management featuresHPE Networking Instant On Cloud, Web browser, SNMP Manager
    • Input voltage range100–127VAC / 200–240VAC
    • Power consumption (max)100–127V: 60W, 200–220V: 80W
    • Power consumption (idle)100–127V: 30W, 200–220V: 40W
    • Operating temperature0–40°C
    • Operating altitude0–10,000 ft
    • Product dimensions35.05 x 44.25 x 4.4 cm
    • Weight3.9 kg
