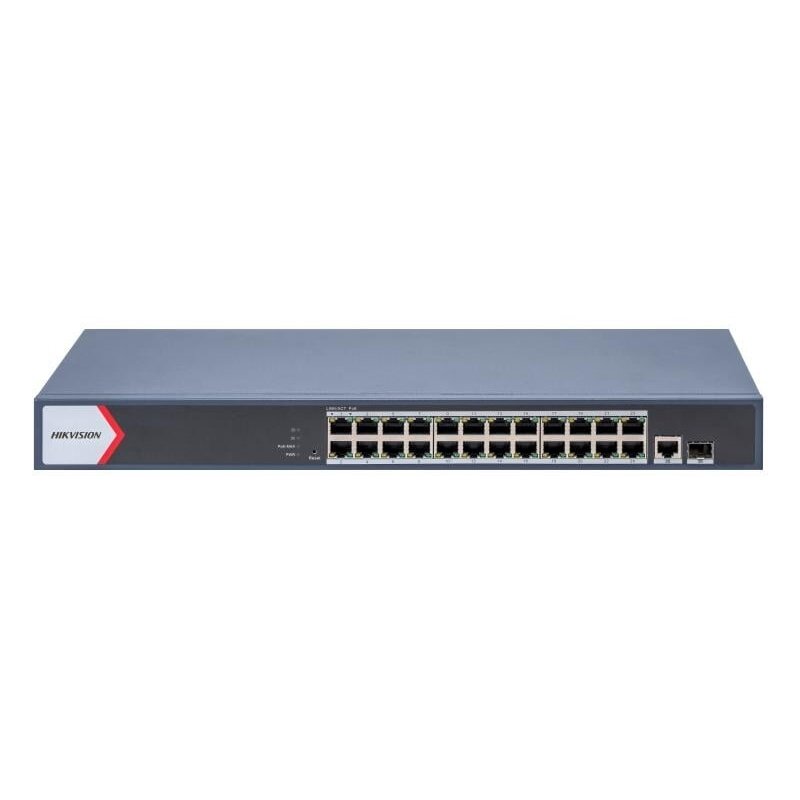

  •   26-port, 24 PoE port switch Hikvision DS-3E1526P-EI/M (managed, 1xSFP, 1xRJ45, 52Gbps, 230W)

    26-port, 24 PoE port switch Hikvision DS-3E1526P-EI/M (managed, 1xSFP, 1xRJ45, 52Gbps, 230W)

    Inquire about this item
    Price 315.44 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision
    • Approval
    • ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
    • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • General
    • Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
    • Gross Weight3.2 kg (7.05 lb)
    • Installation ModeRack (equipped with mounting ears)
    • Max. Power Consumption250 W
    • Net Weight2.96 kg (6.52 lb)
    • Operating Humidity5% to 95% (no condensation)
    • Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
    • Power Consumption in Idle30 W
    • Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
    • Relative Humidity5% to 95% (no condensation)
    • ShellMetal material
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Surge Protection6 KV
    • Network Parameters
    • Internal Cache4.1 Mbits
    • MAC Address Table8 K
    • Packet Forwarding Rate41.66 Mpps
    • Ports24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
    • Switching Capacity56 Gbps
    • PoE Power Supply
    • Max. Port Power30 W
    • PoE PortPoE: Ports 1 to 24
    • PoE Power Budget230 W
    • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE StandardIEEE 802.3af,IEEE 802.3at
    • Software Function
    • DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
    • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
    • Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
    • Long RangePorts 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
    • Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
    • PoE WatchdogPorts 1  to 24: auto detect and restart the cameras that do not respond.
    • Port IsolationPorts 1 to 26: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
    • QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes.
    • System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
    • VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
