  •   24 ports switch D-Link DGS-1024C

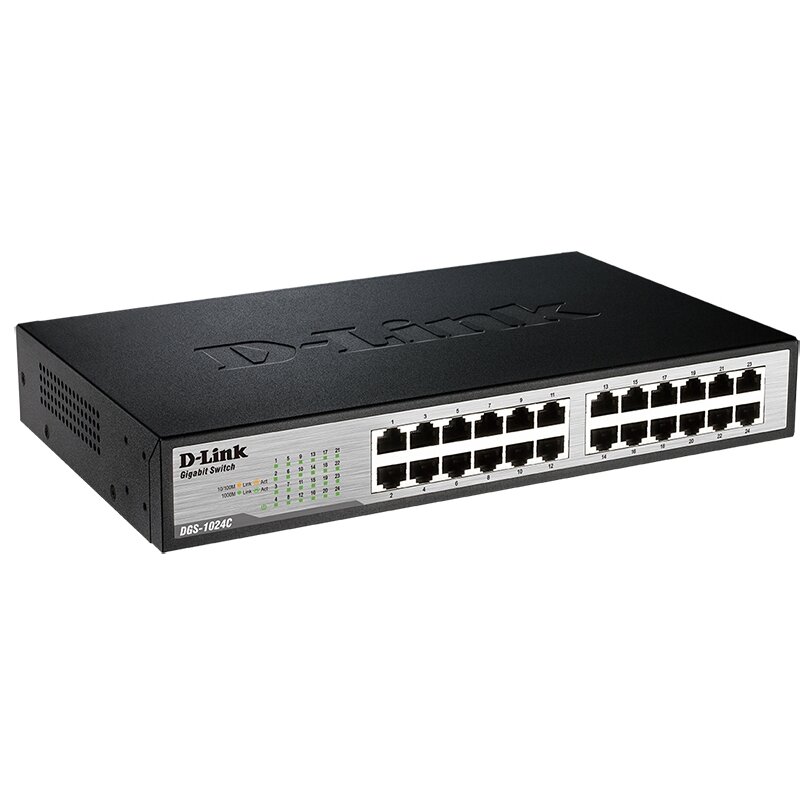

    24 ports switch D-Link DGS-1024C

    Inquire about this item
    Price 109.72 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    D-Link

  • Device Interfaces 24 10/100/1000 Mbps LAN ports
    Standards
    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x Flow Control
    IEEE 802.1p QoS
    IEEE 802.3az Energy-Efficient Ethernet (EEE)
    Switching Capacity48 Gbps switching fabric
    Advanced Features
    Auto MDI/MDIX crossover for all ports
    Secure store-and-forward switching scheme
    Full/half-duplex for Ethernet/Fast Ethernet speeds
    Supports 9 216 byte jumbo frames
    Back pressure at half-duplex operation
    Wire-speed reception and transmission
    Store and-Forward switching method
    Auto-negotiation for each port
    QoS (8 queues, strict mode)
    Data Transfer Rates
    Ethernet:
      • 10 Mbps (half duplex)
      • 20 Mbps (full duplex)
    Fast Ethernet:
      • 100 Mbps (half duplex)
      • 200 Mbps (full duplex)
    Gigabit Ethernet
      • 2000 Mbps (full duplex)
    Transmission Method Store-and-forward
    MAC Address Table Size 16 000
    Packet Filtering/Forwarding Rates
    Ethernet: 14 880 pps per port
    Fast Ethernet: 148 800 pps per port
    Gigabit Ethernet: 1 488 000 pps per port
    RAM Buffer512 KB per device
    Physical Parameters
    LED Indicators
    • Per port: Link/Activity/Speed
    • Per device: Power
    Media Interface Exchange
    Auto MDI/MDIX adjustment for all ports
    Dimensions 282.2 x 178.0 x 44.5 mm
    Weight1.14 kg
    Power
    100 to 240 V AC
    Power Consumption
    Power On (Standby): 6.5 watts
    Maximum: 13.5 watts
    Temperature
    Operating: 0° to 40°C
    Storage: -40° to 70°C
    Humidity
    Operating: 10% to 90% (Non-condensing)
    Storage: 5% to 95% (Non-condensing)
    MTBF 247 291 hours
    Maximum Heat Dissipation 46.04 BTU/h
    Certifications
    CE Class B
    CE (LVD 2006/95/EC)
