  •   24 ports switch D-Link DES-1024D

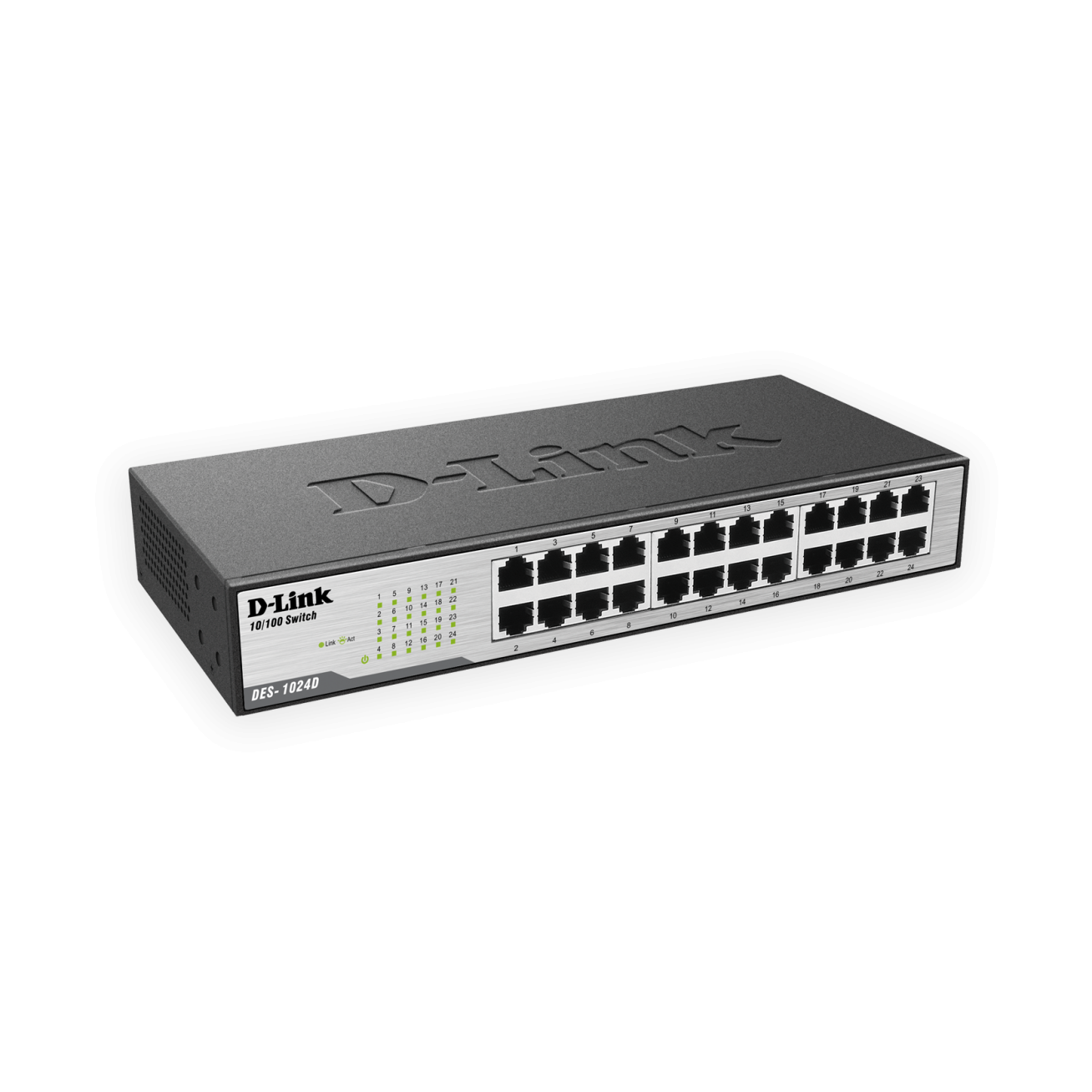

    24 ports switch D-Link DES-1024D

    Inquire about this item
    Price 50.93 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    D-Link

  • Key Features
    • Inexpensive Fast Ethernet solution for SOHO/SMB
    • Auto MDI/MDIX crossover for all ports
    • Store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow Control
    • Plug-and-play installation
    Switching Fabric
    • 4.8 Gbps
    Standards
    • IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 NWay Auto-Negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.3az EEE function
    Protocol
    • CSMA/CD
    Data Transfer Rates
    • Ethernet:
      • 10 Mbps (half duplex)
      • 20 Mbps (full duplex)
    • Fast Ethernet:
      • 100 Mbps (half duplex)
      • 200 Mbps (full duplex)
    Number of Ports
    • 24 10/100Mbps Fast Ethernet ports
    Topology
    • Star
    Network Cables
    • 10BASE-T:
      • UTP CAT 3/4/5/5e (100 m max.)
      • EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX
      • UTP CAT 5/5e (100 m max.)
      • EIA/TIA-568 100-ohm STP (100 m max.)
    Media Interface Exchange
    • Auto MDI/MDIX adjustment for all ports
    LED Indicators
    • Per port:
      • Link/Activity
    • Per device:
      • Power
    Transmission Method
    • Store-and-forward
    MAC Address Table
    • 8K entries per device
    MAC Address Learning
    • Automatic update
    Packet Filtering /Forwarding Rates (half duplex)
    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port
    RAM Buffer
    • 256 Bytes (2M bits)
    Power Input
    • 100~240 V AC 50/60 Hz internal universal power supply
    Power Consumption
    • Power On (Standby):
      • DC input: 1.18 Watts
      • AC input: 2.09 Watts
    • Max.:
      • DC input: 2.72 Watts
      • AC input: 4.14 Watts
    Operating Temperature
    • 0 ˚ to 40 ˚C (32 ˚ to 104 ˚F)
    Dimensions (W x D x H)
    • 280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)

    Certifications
    • FCC Class A
    • ICES-003 Class A
    • CE Class A
    • C-Tick Class A
    • VCCI Class A
    • cUL
    • LVD
