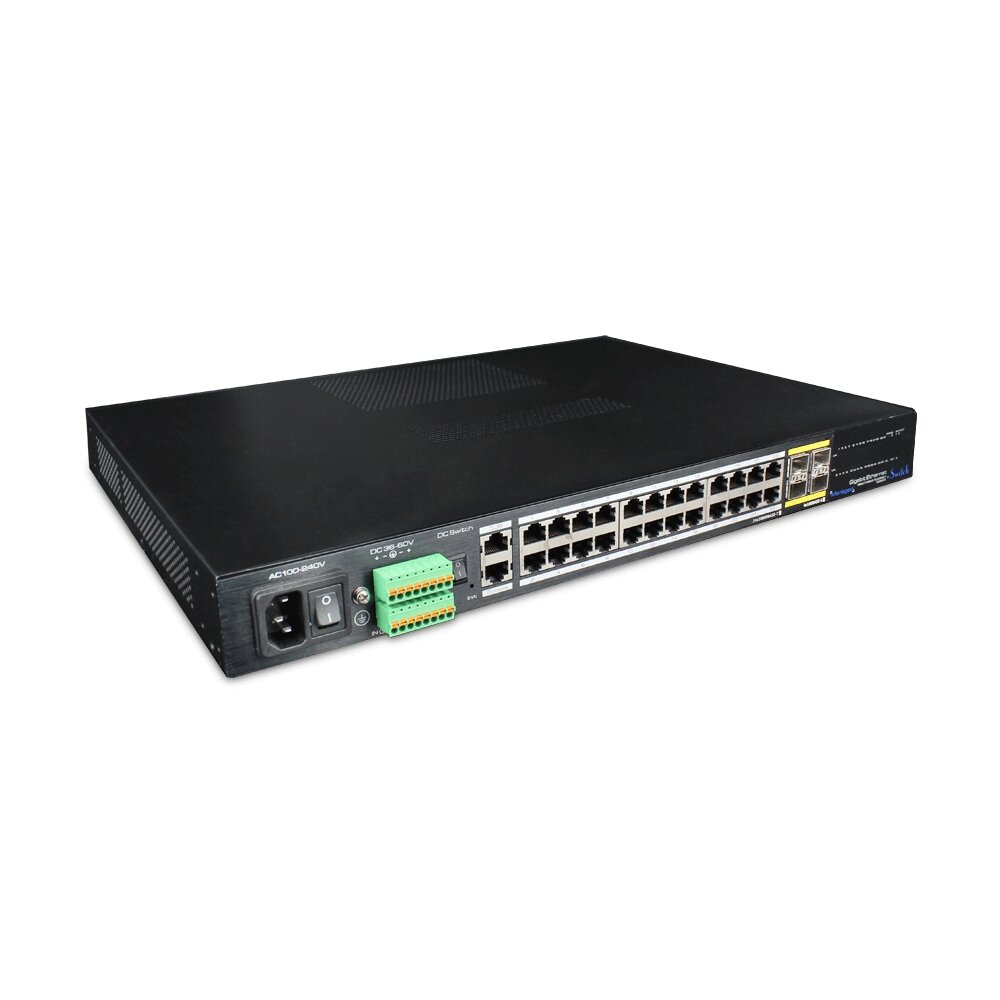

24 Ports Gigabit Layer 3 Switch UTEPO UTP7624GE-IE

Model

UTP7624GE-IE

Copper Ports

24*10/100/1000 Base-T RJ45

10G SFP+ Slots

4*1000/10G Base-X SFP+

Console Port

1*RJ45-R232 serial port(115200,8,N,1) only to CLI management

OOB Port

1*10/100Base-TX RJ45(only to web management)

Default IP:192.168.1.200 name:admin password:admin

Init Key

Short press restart

>5s press recovery to default

Power Supply-AC

1* AC 100～240V 50/60Hz

Power Supply-DC

2*DC DC36～60V

Power Consumption

30W

Digital Input and Output

2* digital input for exteral alarm

2*digital output for the switch power failure,cable link down&PoE link off;

signal type: normal-open or normal-closed from relay

Standard and Protocols

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Switching Capacity

128Gbps / non-blocking

Packet Forwarding Rate

95.2Mpps@64 bytes

Forwarding Modes

Store-and-Forward

Packet Buffer

4Mbit

MAC Address Table

16K

Jumbo Frame

9K bytes

EMI

FCC part 15,CISPR(EN55022) classA

EMS

Surge level-4 execute : IEC61000-4-5

ESD level-4 execute : IEC61000-4-2

RS level-4 execute : IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS level-3 execute : IEC61000-4-6

M/S level-5 execute : IEC61000-4-8

Operating Temperature

-40-75℃

Storage Temperature

-40-85℃

Humidity

5%-95%(non-condensing)

Dimension（L×W×H）

442mm×320mm×44mm

Weight

4.5kg

Certification

CE, FCC, ROHS

Software Parameter

Ports Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support Jumbo Frame

Support port name modification

VLAN

Support of 4K VLAN

Support 802.1Q VLAN protocol

Support QINQ

Support GVRP active VLAN register

Support VLAN based on port\protocol\MAC

Alarm

Digital input an digital output can be set in web management

QoS

Support COS classification base on 802.1p

support QoS base on DSCP

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority

Multi-brocast

Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

support MLD-snooping

Security

Supports IP, MAC, port, VLAN binding combinations

Support MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support STP \ RSTP \MSTP，Fast-Ring

Support 5 groups of link aggregation

Support LLDP, Smart-Link, DLDP

Support 802.1X

ACL

Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number

Support time-range management

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot

L3 Function

Support IPV4 static route setup

Support RIP V1/2 on IPV4

Support OSPF V1/V2

Support ISIS on IPV4

Support BGP on IPV4

Support static ARP Add,delete,burn-in time sutup/check

Support static NDAdd,delete,burn-in time sutup/check

Support VRRP V1/2/3 virtual redundant route protocol

Support group-brocasting PIM,IGMP V1/V2/V3,MLD(IPV4)

Support DHCP client,server

Support relay repeater,DHCP snooping

Support duplex transfer check mechanism
