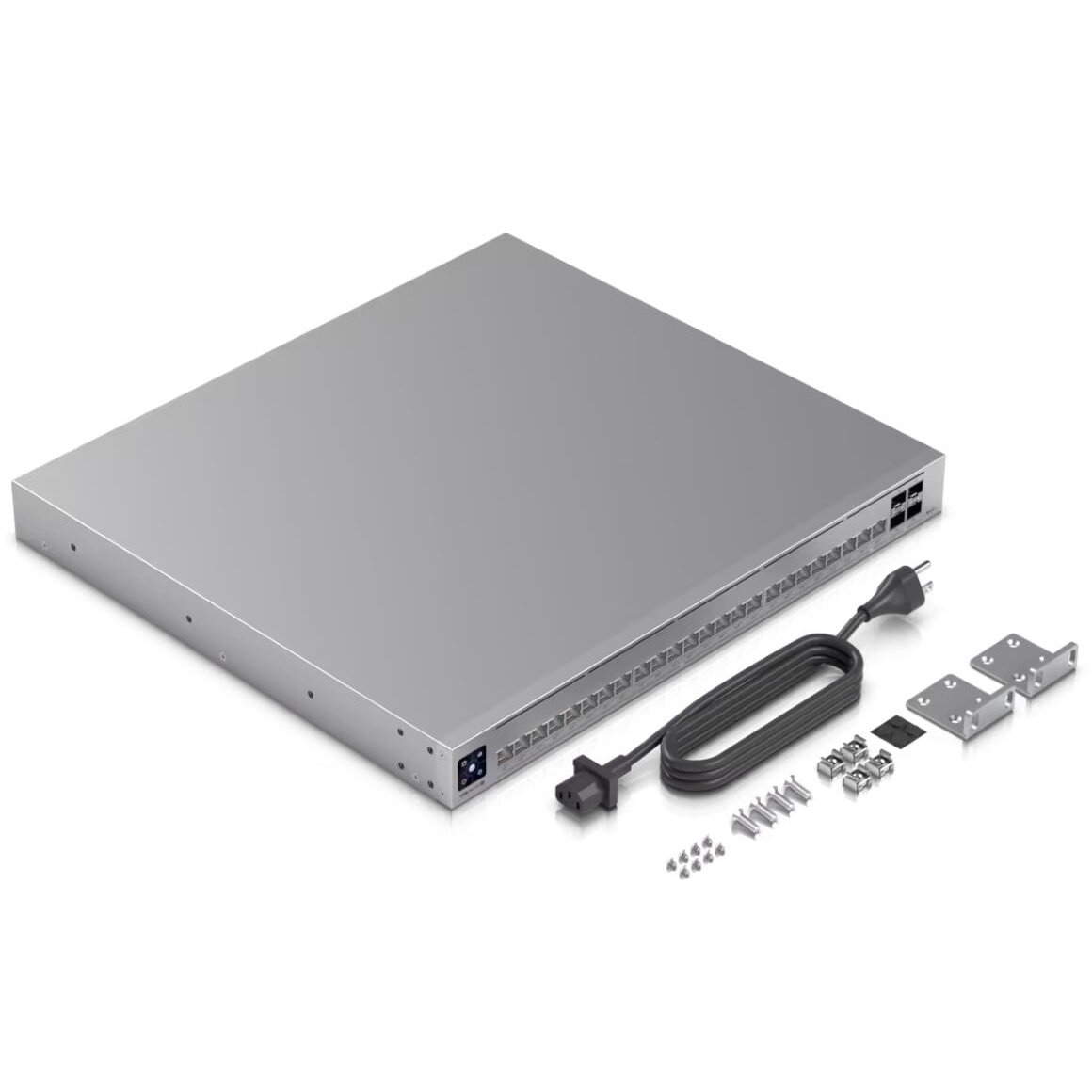

  •   24-port switch Ubiquiti Unifi USW-Pro-HD-24-PoE-EU

    24-port switch Ubiquiti Unifi USW-Pro-HD-24-PoE-EU

    Inquire about this item
    Price 1306.53 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs

    • General
    • Dimensions442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
    • Port Layout2.5 GbE RJ45: 22 (All PoE++), 10 GbE RJ45: 2 (All PoE++), 10G SFP+: 4, 25G SFP28: 2
    • Max. PoE OutputUp to PoE++
    • Total PoE Availability600W
    • RedundancyDC Power Backup
    • Layer 3Yes
    • Form FactorRack Mount (1U)
    • Etherlighting™Yes
    • Switching Capacity230 Gbps
    • Total Non-Blocking Throughput115 Gbps
    • Forwarding Rate171 Mpps
    • Supported VLANs1,000
    • MAC Address Table Size32,000
    • L3 Table SizeARP Entries: 12,000, IPv4 Routes: 12,000
    • Packet Buffer Size2 MB
    • Layer 3 FeaturesDHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
    • Layer 2 FeaturesLACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes, MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
    • PoE PortsPoE++: 24
    • Max. PoE Wattage per Port by PSEPoE: 15.4W, PoE+: 32W, PoE++: 64W
    • Max. Power Consumption60W (Excluding PoE Output), 660W (Including PoE Output)
    • Power Method(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
    • Power Input MethodAC input
    • Power SupplyAC/DC, internal, 660W
    • Supported Voltage Range100—240V AC
    • ManagementEthernet: AR
    • WeightWithout mounting brackets: 6.2 kg (13.7 lb), With mounting brackets: 6.3 kg (13.9 lb)
    • Enclosure MaterialSGCC steel
    • Supported Rack Depth600 - 1,200 mm (23.6-47.2")
    • LCM Display1.3" Touchscreen
    • Ambient Operating Temperature-5 to 40° C (23 to 104° F)
    • Ambient Operating Humidity10 to 90% noncondensing
    • CertificationsCE, FCC, IC
    • Etherlighting™Ethernet: Yes, SFP+: Yes, SFP28: Yes
