  •   24-port switch Cudy FS1026PS1 4.0

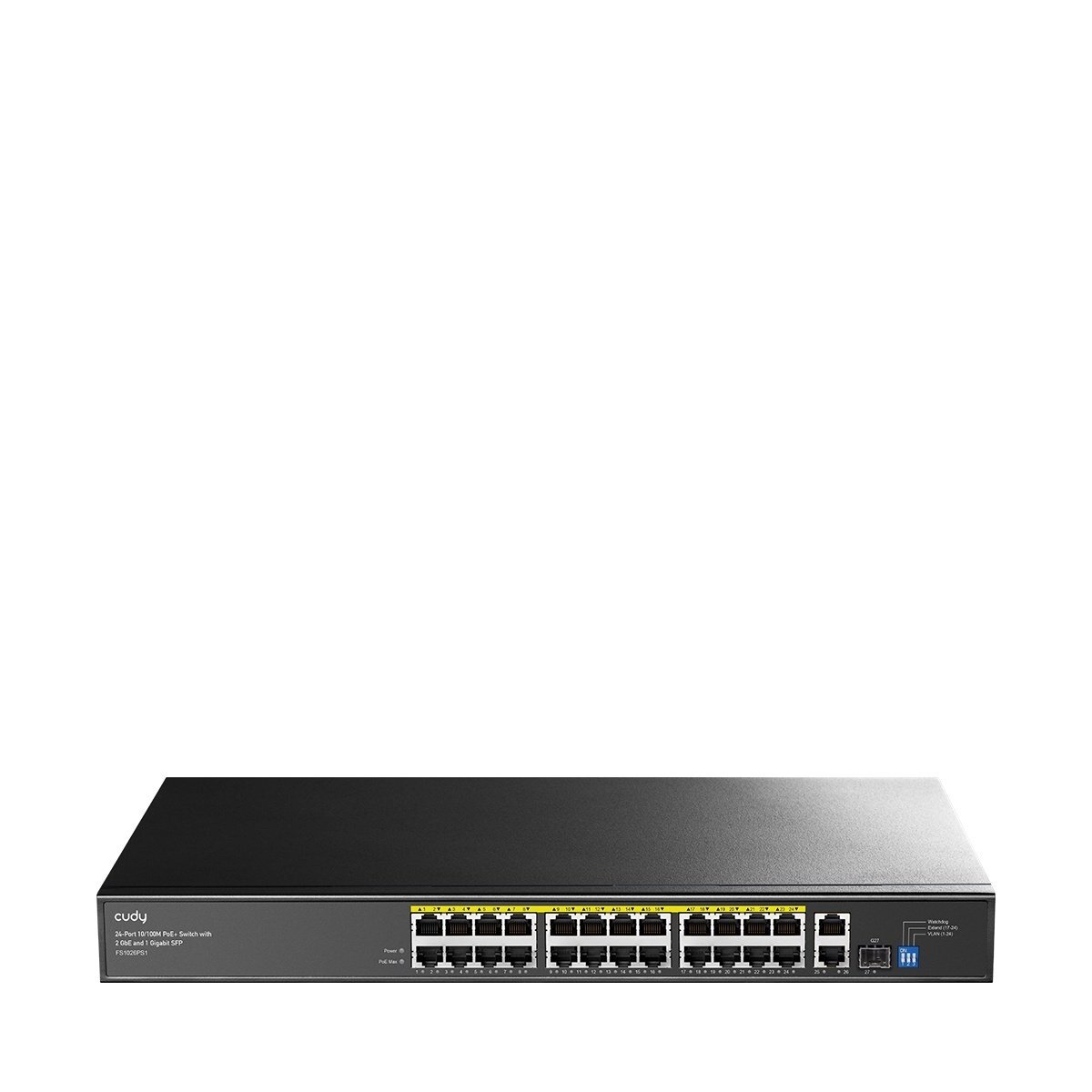

    24-port switch Cudy FS1026PS1 4.0

    Inquire about this item
    Price 146.61 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionFS1026PS1 4.0
    • 1.25G SFP Slots1
    • Gigabit RJ45 Ports2
    • 10/100 Mbps RJ45 Ports24
    • 10/100 Mbps RJ45 PoE Ports#1~#24
    • Max Power on a Single PoE Port30W
    • PoE Port NotesCompliant with IEEE 802.3at/af standards
    • Intelligent Power ManagementAutomatically disconnects the last powered device when power exceeds budget
    • Shielded RJ45 PortsTrue
    • Extend Mode Ports#17~#24
    • VLAN Mode Ports#1~#24
    • LED IndicatorsPower, Link/ACT for each port, PoE Max Status
    • Power InputAC Inlet
    • Physical ButtonsExtend On/Off, VLAN On/Off, PoE Watchdog On/Off
    • Watchdog NoteReboots inactive clients after 5 min; not recommended for auto-updating clients
    • Copper Speed and DistanceCat. 3+: 100m @10 Mbps; Cat. 5+: 100m @100 Mbps; Cat. 5e+: 100m @1 Gbps, 250m @10 Mbps (Extend Mode only)
    • Optical Spec and DistanceDepends on installed optical module
    • MAC Address Table2048
    • Max Switching Capacity10.8 Gbps
    • Max Forwarding Rate8 Mpps
    • Jumbo Frame Size2 KB
    • Packet Buffer2 Mbit
    • Power MethodsAC
    • AC Input100–240V~, 50/60Hz
    • Power Supply300W
    • Max Power Consumption (excluding PoE)7W
    • Supported ProtocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
    • PoE ManagementIntelligent Power Management
    • Cooling1× Smart Fan (auto speed adjustment based on power usage)
    • Grounding MethodsThree-prong plug, Grounding point
    • EMS ProtectionIEC/EN 61000-4-2: ESD (Contact: 6kV, Air: 8kV); IEC/EN 61000-4-5: Surge (Power: DM 2kV, CM 4kV; RJ45: CM 4kV)
    • Operating Temperature0 ~ 40°C (32 ~ 104°F)
    • Storage Temperature-40 ~ 70°C (-40 ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity10% ~ 95% non-condensing
    • Dimensions440 × 180 × 44 mm (17.32 × 7.09 × 1.73 inches)
    • Product Weight2208.9 g (77.92 oz.)
    • Casing MaterialMetal
    • Installation OptionsDesktop or rack-mounted via brackets
    • Package ContentsFS1026PS1, Power Cord, Mounting Kit, Installation Guide
