  •   24-port switch CUDY FS1024

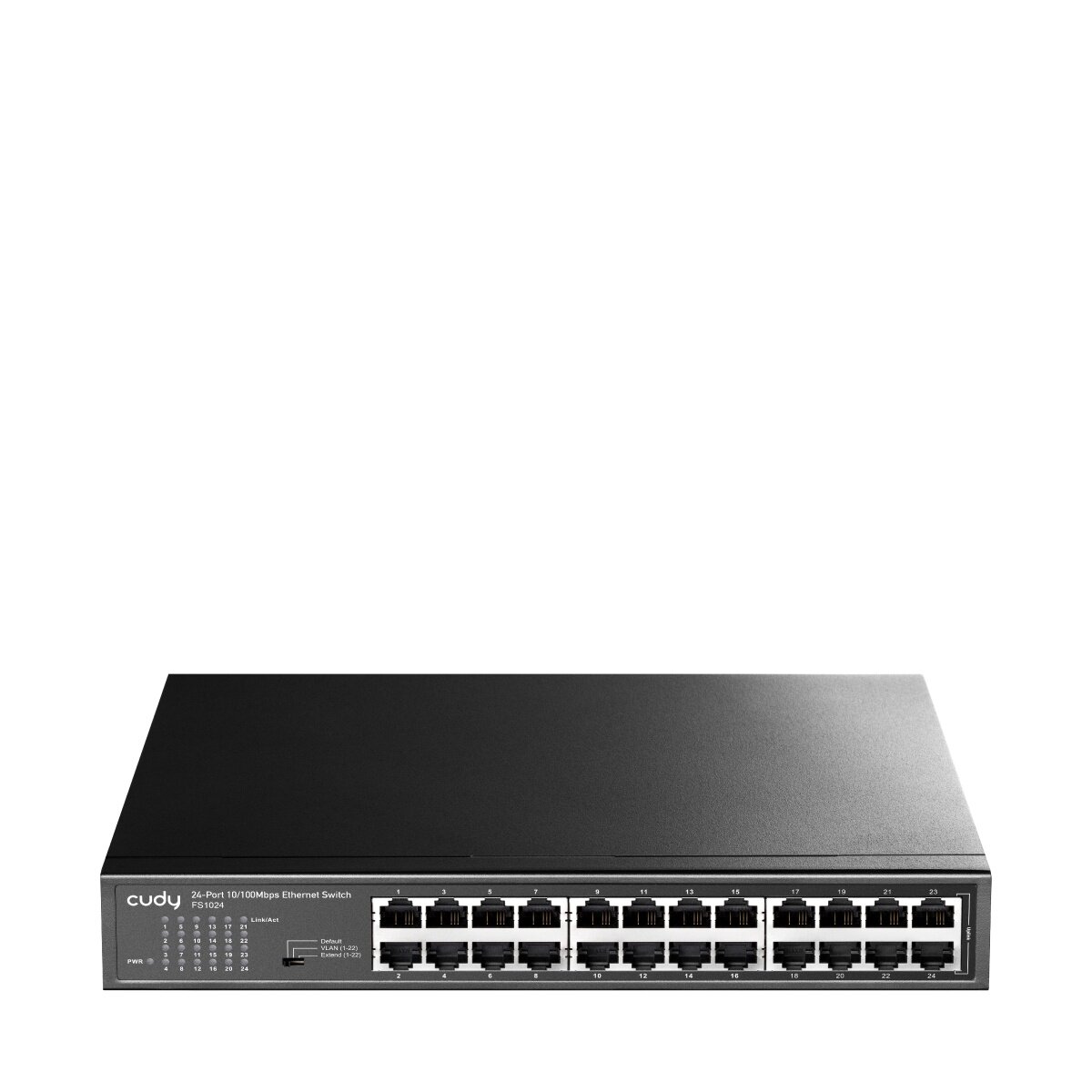

    24-port switch CUDY FS1024

    Inquire about this item
    Price 53.10 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • ModelGS1010PS2
    • Ethernet Ports8× Gigabit PoE Ethernet Ports, 2× Uplink Gigabit Ethernet Ports, 2× Uplink Gigabit SFP Slots
    • PoE StandardsIEEE802.3af (15.4W), IEEE802.3at (30W)
    • Bandwidth24 Gbps
    • Packet Forwarding Rate17.856 Mpps
    • Memory Cache448 Kbit
    • MAC Address Table2K
    • Jumbo Frame2048 bytes
    • Transfer ModeStore and forward
    • Supported Network ProtocolsIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control), IEEE802.3z (Gigabit Ethernet Fiber Standard)
    • Industry StandardsEMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
    • Network Medium10Base-T: Cat3/4/5 UTP (≤100m), 100/1000Base-TX: Cat5 or above UTP (≤100m)
    • Optical MediumMultimode: 50/125, 62.5/125, 100/140 µm; Single-mode: 8/125, 8.7/125, 9/125, 10/125 µm
    • Operating Temperature-10~50°C
    • Storage Temperature-40~70°C
    • Operating Humidity10%~90%, non-condensing
    • Storage Humidity5%~90%, non-condensing
    • LED IndicatorsPWR (Power), 1-12 Green Light (Link & Data): On = Link normal, Flashing = Data transmitting
    • DIP Switch – Extend ModeOff: <100m, adaptive speed, watchdog off; On: Ports 7-8 at 10 Mbps, up to 250m, watchdog active
    • Input VoltageAC 100–240V
    • Power Supply Output52V 2.3A (120W)
    • Product Size220×161×44.5 mm
    • Package Size315×215×85 mm
    • Package ContentsSwitch (1x), Power cord (1x), User manual (1x)
    • Special FeaturesUplink GbE & SFP slots, Extend mode up to 250m, PoE watchdog, PoE Port Priority, fanless metal design
