  •   24 port switch Cisco CBS220-24P-4G-EU (Managed, 24x1Gb PoE, 4xSFP, L2, 256Gbps)

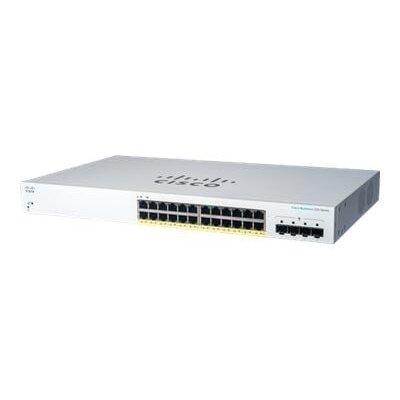

    24 port switch Cisco CBS220-24P-4G-EU (Managed, 24x1Gb PoE, 4xSFP, L2, 256Gbps)

    Inquire about this item
    Price 565.91 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cisco
    • General
    • Switch TypeManaged
    • Switch LayerL2
    • Web-based ManagementYes
    • Quality of Service (QoS)Yes
    • System Event LogYes
    • Authentication TypeIEEE 802.1X, RADIUS
    • Security AlgorithmsSSH, SSH-2, SSL/TLS
    • MAC Address FilteringYes
    • DHCP FeaturesDHCP client
    • Access Control List (ACL)Yes
    • IGMP SnoopingYes
    • Queue Scheduling AlgorithmsWeighted Round Robin (WRR)
    • SSH/SSL SupportYes
    • Loop ProtectionYes
    • BPDU Filter / ProtectionYes
    • Multicast SupportYes
    • MAC Address Table8192 entries
    • Power over Ethernet (PoE)Yes
    • RJ-45 Ethernet Ports24 x Gigabit Ethernet (10/100/1000)
    • SFP Ports4
    • Flash Memory64 MB
    • Internal Memory256 MB
    • Integrated ProcessorYes
    • Firmware UpgradeYes
    • 10G SupportYes
    • Ethernet LAN Data Rates10/100/1000 Mbps
    • Network StandardsIEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3u, 802.3x, 802.3z
    • Flow Control SupportYes
    • Port MirroringYes
    • IP RoutingYes
    • Broadcast Storm ControlYes
    • Head-of-Line (HOL) BlockingYes
    • Spanning Tree ProtocolYes
    • Link AggregationYes
    • Auto MDI/MDI-XYes
    • VLAN SupportYes
    • Number of VLANs256
    • Rack MountingYes
    • Product ColorWhite
    • StackableYes
    • Form Factor1U
    • LED IndicatorsYes
    • Fans1 fan
    • Reset ButtonYes
    • Operating Temperature0°C to 50°C
    • Storage Temperature-20°C to 70°C
    • Operating Humidity10% to 90%
    • Storage Humidity10% to 90%
    • Heat Dissipation833.59 BTU/h
    • Management ProtocolsSNMP v1/v2c/v3, Telnet, TFTP, HTTP/HTTPS, SNTP
    • GVRP SupportYes
    • Forwarding Rate41.66 Mpps
    • Switching Capacity56 Gbps
    • Address Table Size8192 entries
    • Queues8
    • Jumbo Frames SupportYes
    • Jumbo Frames9216 bytes
    • Packet Buffer Memory4.1 MB
    • Input Voltage100–240 V AC
    • Input Frequency50–60 Hz
    • Dimensions440 x 203 x 44 mm
    • Weight2750 g
    • Harmonized System (HS) Code85176990
