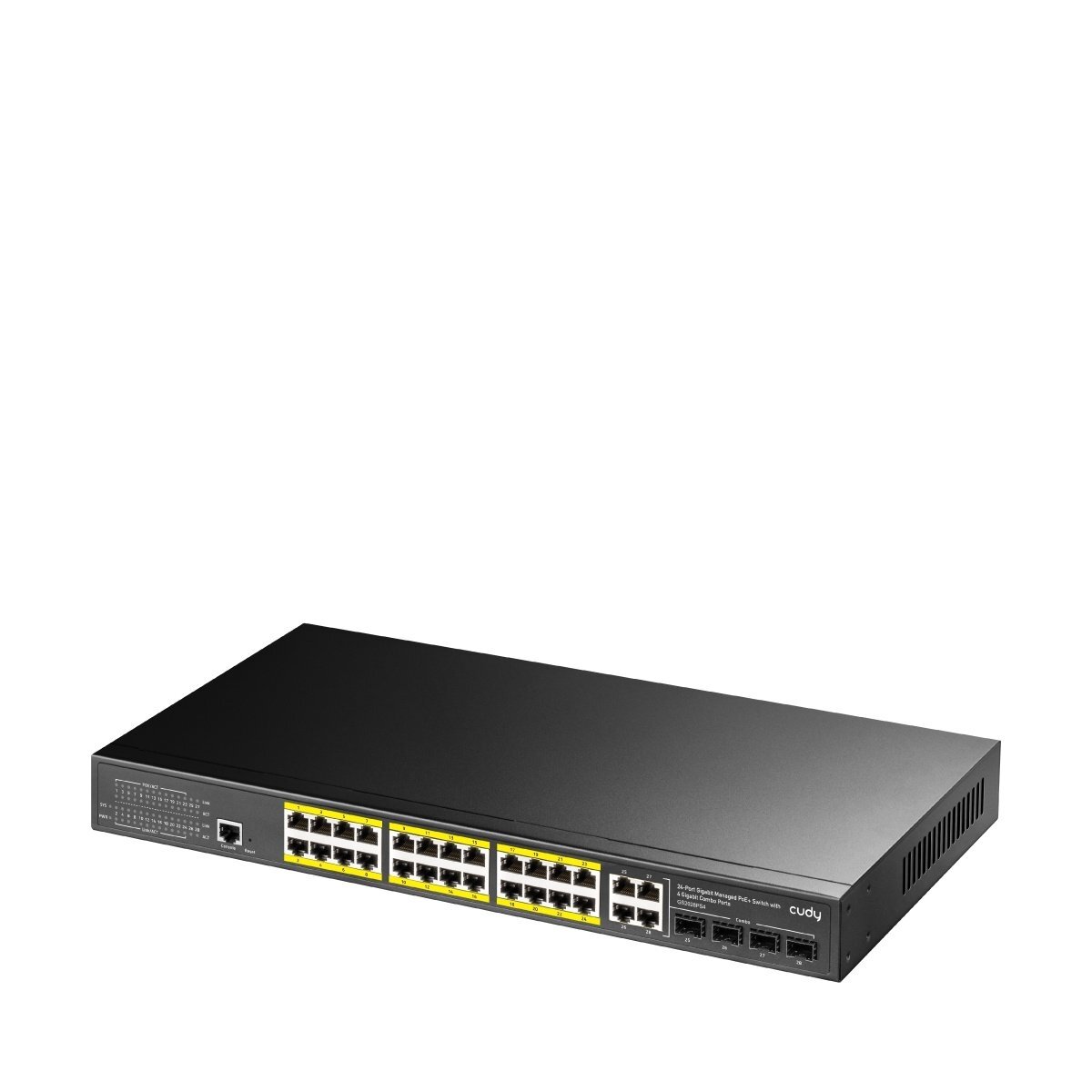

    24-port managed switch CUDY GS2028PS4-400W

    Inquire about this item
    Price 384.42 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • ModelGS2028PS4-400W
    • Ethernet Ports24× 10/100/1000 Mbps PoE+ ports, 4× Gigabit Combo SFP/TP ports, 1× Console port
    • PoE StandardsIEEE 802.3af (15.4W), IEEE 802.3at (30W)
    • PoE Output VoltageDC 48–55V
    • PoE Power Pins1/2 (+), 3/6 (–)
    • Total PoE Power Budget400W
    • Switching Capacity56 Gbps
    • Forwarding Rate41.66 Mpps
    • MAC Address Table8K
    • VLAN Support4096 VLANs
    • Jumbo Frame9.6 KB
    • Packet Buffer4 MB
    • Memory128 MB
    • Flash16 MB
    • Transfer ModeStore-and-forward
    • Power InputAC 110–240V
    • LED IndicatorsSYS, PWR, Link/ACT
    • Lightning/Surge ProtectionSurge: 6KV (common), 4KV (differential), ESD: 15KV
    • Operating Temperature-20°C ~ 55°C
    • Storage Temperature-40°C ~ 85°C
    • Operating Humidity10% ~ 95%, non-condensing
    • Altitude ToleranceUp to 3,000 meters
    • CasingFanless, 1U rackmount metal housing
    • Dimensions445×285×45 mm
    • Supported ProtocolsIEEE 802.3/3u/3ab/3ad/3az/3x/3af/3at, IEEE 802.1q, 802.1p, QoS, IGMP Snooping
    • L2 FeaturesPort management, port mirroring, port isolation, speed/duplex/MTU config, LACP, static aggregation, flow control, storm suppression
    • VLAN TypesPort-based, MAC-based, protocol-based, GVRP, Voice VLAN
    • Spanning TreeSTP (802.1D), RSTP (802.1w), MSTP (802.1s)
    • Multicast SupportIGMP Snooping v1/2/3, MLD Snooping
    • Security802.1X, AAA, TACACS+, ARP binding, DoS defense, port security
    • QoS802.1p (COS), DSCP, IP/port-based classification, SP/WRR scheduling, CAR (rate limiting)
    • DiagnosticsLLDP, VCT (cable test), ping, traceroute
    • ManagementWEB, CLI, SSH, Telnet, SNMP v1/v2/v3, RMON, DHCP Snooping, Option82
    • MTBF100,000 hours
