  •   24-port managed switch CUDY GS1024E

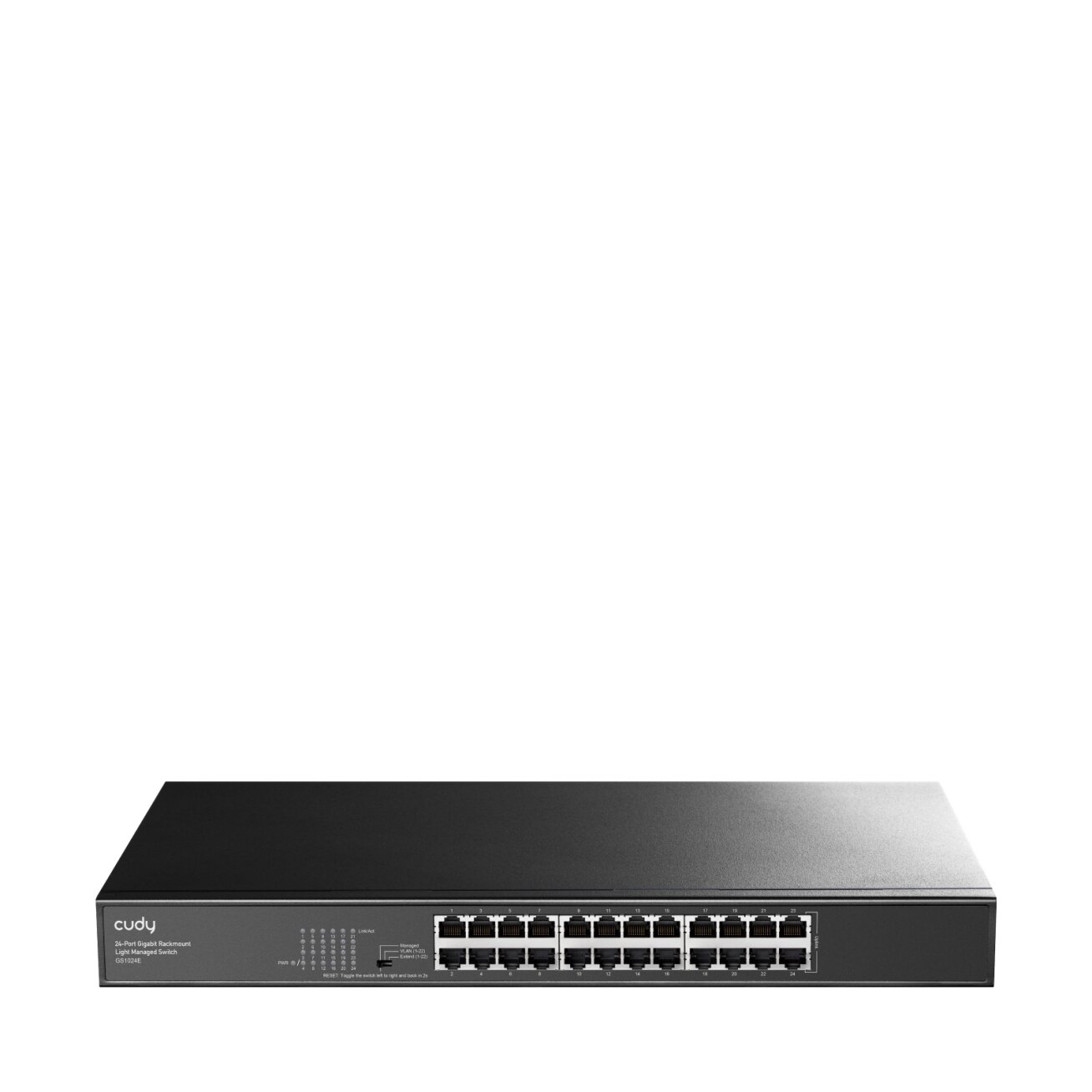

    24-port managed switch CUDY GS1024E

    Inquire about this item
    Price 91.22 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • ModelGS1024E
    • Ethernet Ports24× Gigabit RJ45 ports
    • DIP Switch ModesManaged, VLAN, Extend
    • MAC Address Table8192
    • Switching Capacity48 Gbps
    • Forwarding Rate35.712 Mpps
    • Jumbo Frame15 KB
    • Packet Buffer4 Mbit
    • Transfer ModeStore-and-forward
    • Flash/ROM8 MB (64 Mbit) NOR
    • Power InputAC 90–260V, 50/60Hz
    • Max Power Consumption11W
    • Idle Power Consumption6.8W
    • Power Saving ModeEEE (IEEE 802.3az)
    • Cable SupportCat 3+: 100m @ 10 Mbps, Cat 5+: 100m @ 100 Mbps, Cat 5e+: 100m @ Gigabit, Extend mode: 250m @ 10 Mbps, Cat 6: 150m @ Gigabit
    • Supported ProtocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    • QoS Features802.1p, DSCP, Port-Based QoS
    • VLAN Support802.1Q VLAN, MTU VLAN, Voice VLAN, Port-Based VLAN
    • L2 FeaturesIGMP Snooping, DHCP Snooping, Loop Prevention, STP (802.1d), RSTP (802.1w), LLDP, LLDP-MED
    • Port ManagementOn/Off, Speed Negotiation, Port Trunk (Static Aggregation), Port Mirror, Data Rate Limiting, Storm Control, Jumbo Frame Settings, Traffic Monitoring, MAC Address Management
    • Port TrunkingGroups: 4, Max Ports per Group: 8
    • DiagnosticsPing, Cable status/length diagnosis
    • Firmware UpgradeLocal upgrade, Backup and Restore
    • SNMP SupportVersion 1 and 2
    • Web Interface LanguagesEnglish, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional & Simplified Chinese
    • LED IndicatorsPower, Speed/Link/ACT per port
    • Grounding MethodThree-Prong Plug, Grounding Point
    • Surge ProtectionRJ45: 4KV, AC: CM 4KV / DM 2KV
    • ESD ProtectionContact: 6KV, Air: 8KV
    • Operating Temperature0°C ~ 40°C
    • Storage Temperature-40°C ~ 70°C
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • Dimensions440×180×44 mm (17.32×7.09×1.73 inches)
    • CasingMetal
    • Installation TypeDesktop, Rackmount (bracket-compatible)
