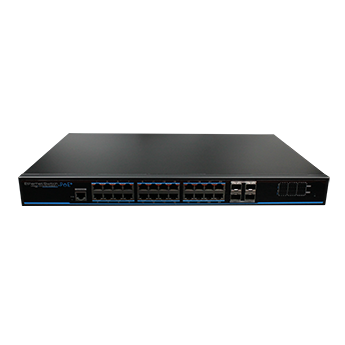

24 Gigabit PoE Ports Managed Ethernet Switch UTEPO UTP3-GSW2404S-MTP250

Model

UTP3-GSW2404S-MTP250

Copper Ports

24*10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP Ports

4*1000 Base-X SFP(Mini-GBIC)

Console Port

1*RJ45-R232 serial port(115200,8,N,1)

Init button

Short press:restart;

>5s Press: restore factory settings.

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Switching Capacity

56Gbps / non-blocking

Packet Forwarding Rate

41.7Mpps

Forwarding Modes

Store and Forward

Packet Buffer

12Mbit

MAC Address Table

16K MAC address table with auto learning function

Jumbo Frame

10K bytes

PoE Standard

IEEE802.3af 15.4W, IEEE802.3at 30W

PoE Power Method

End-span

PoE Line Pair

1/2(+)，3/6(-)

Input Voltage

Internal power adapter

AC 100-240V 50/60Hz

Power Consumption

<250W (PoE consumption)

PoE budget: 230W

Surge Immunity

6KV

Execute: IEC61000-4-5

ESD Immunity

6KV: Contact discharge

8KV: Air discharge

Execute: IEC61000-4-2

Operating Temperature

-10-50℃

Storage temperature

-40-85℃

Humidity

5%-95%(Non-condensing)

Dimension（L×W×H）

442mm×286mm×44mm

Weight

3.859kg

Certification

CE, FCC, ROHS

Software Parameter

Interface Management

Logic Interface

Support port isolation

Support port rate settings

Support port storm suppression

Support IEEE802.3x flow control

Support port traffic statistics

Support port adaptation

Loopback detection

VLAN

VLAN Partition

VLAN based on port, VLAN based on MAC

Private VLAN, multicast VLAN

VLAN Communication

VLAN intercommunication

VLAN isolation

VLAN Port Type

Access, Trunk, GVRP, QinQ

MAC

Static MAC

MAC Black hole

Dynamic MAC

MAC address aging configuration

MAC address learning limit

Multicast MAC

Static Multicast MAC address

Loopback Protection

STP/RSTP, ERPS v1，v2（G.8032）, y.1731 CCM

IP Features

IP address : Classful IP address, classless IP address

ARP

IPv6 address configuration

DHCP

Host DHCP service

DHCP pool

DHCP relay

DHCP snooping option 82

IGMP Features

IGMP snooping

GMRP

QoS

Support 802.1p CoS/DSCP priority

Support 8-Level priority management for switching

Support WRR, PQ, DRR, WFQ, ACL based on ports and queues

PoE Management

Support total power consumption control

Support PoE ON/OFF

Support single port 30W max. Power change and port output priority

Security

802.1x

IEEE 802.1X Port/MAC based authentication, Radius

Support MAC address auto-learning, aging& filter

Support port isolation, port speed-limited

ACL

Basic ACL, advanced ACL

System Log

Local system log management

Remote System Log Management

Mirroring

Port mirroring

System Management& Maintenance

Support WEB management, configuration through Telnet, SSH, Tracert v4

SNMPv1/v2/v3 management

NTP

Link layer discovery protocol (LLDP)

IPv6

Dual IPv4/IPv6 stack

Ping IPv6, WEB IPv6

DHCPv6 snooping, DHCPv6 client

IPv6 ACL, IPv6 SSH

IPv6 neighbor discovery (ND)
