  •   2-port router CUDY TR1200

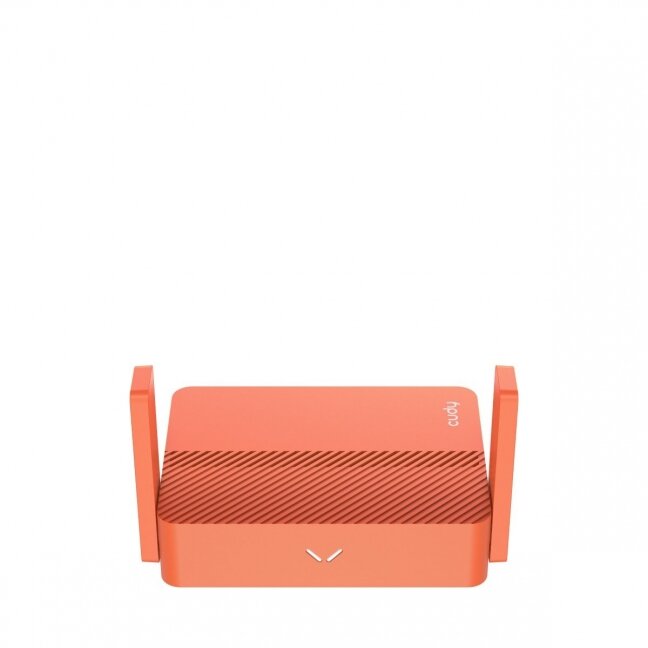

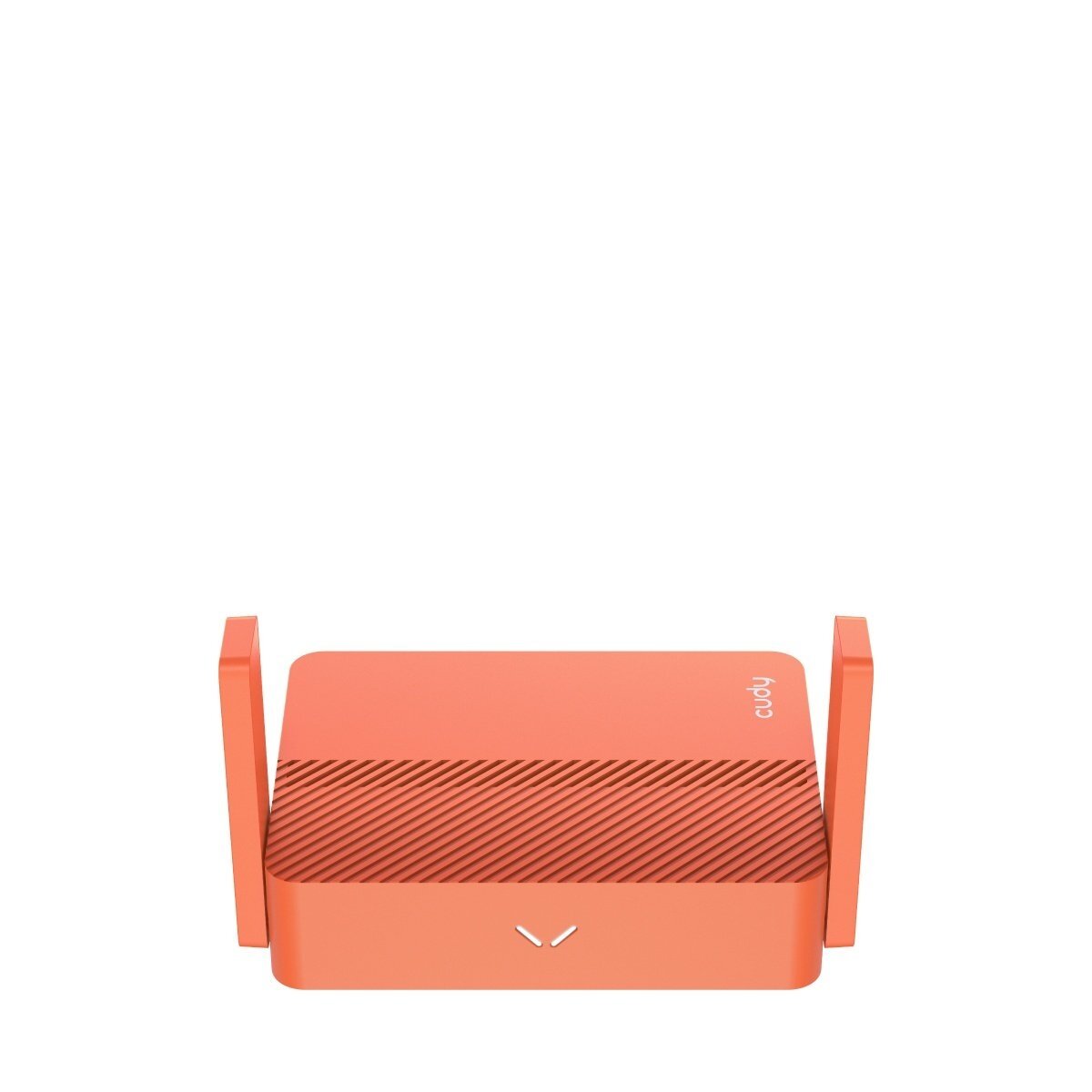

    2-port router CUDY TR1200

    Inquire about this item
    Price 41.00 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionTR1200 1.0
    • CPU ChipsetMT7628
    • CPU Details580 MHz Single-Core, MIPS24KEC
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM128 MB (1 Gbit) DDR3
    • 5 GHz Wi-Fi Speed867 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Fixed
    • 5 GHz Antenna Gain Max3.81 dBi
    • 2.4 GHz Antenna Gain Max3.97 dBi
    • BeamformingTrue
    • Range PerformanceMax: 150 m (492 ft)
    • Wall PerformanceTwo wooden walls < 10 cm (4"), One concrete wall < 20 cm (7")
    • 10/100 Mbps RJ45 Ports2
    • Ethernet Notes1× WAN port, 1× LAN port
    • USB-A 2.0 Ports1
    • LED IndicatorsSystem
    • Physical ButtonsReset Button, Configurable DIP Switch
    • Power InputUSB-C Port
    • Power MethodsDC / PD
    • DC Input5V 2A, PD
    • Max Power Consumption8W
    • Idle Power Consumption3W
    • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation OptionsDesktop
    • Dimensions118×80×27.5 mm (4.65×3.15×1.08 inches)
    • Product Weight99 g (3.49 oz.)
    • Package ContentTR1200, USB Charging Cable, Ethernet Cable, Installation Guide
