  •   18 ports, 16 PoE ports switch UTEPO UTP3218TS-PSB

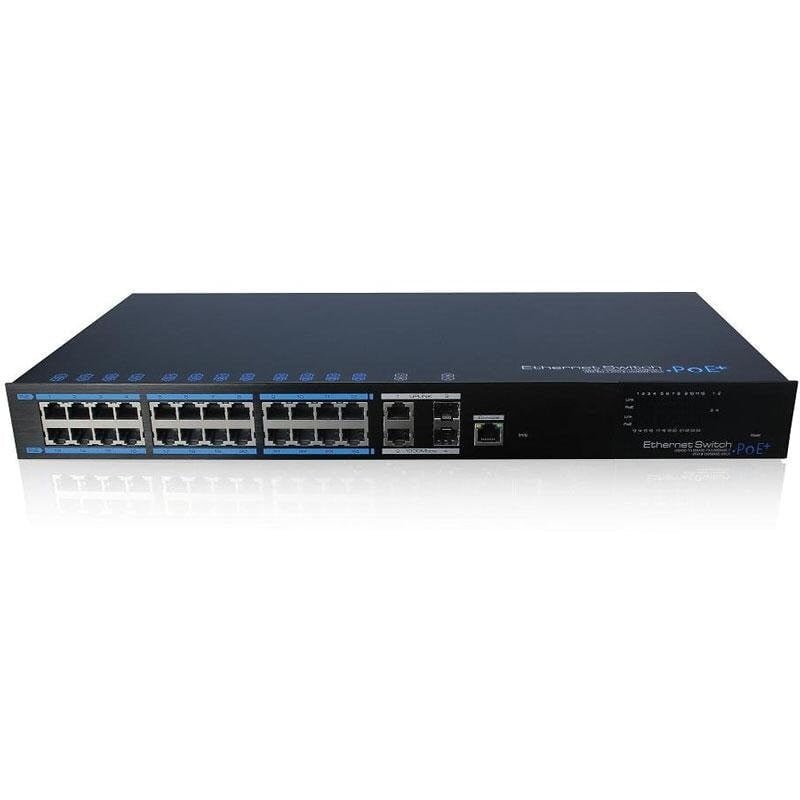

    18 ports, 16 PoE ports switch UTEPO UTP3218TS-PSB

    Inquire about this item
    Price 254.14 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • Interface
    • Downlink Ports16*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X)
    • Uplink Ports 2*10/100/1000 Base-T RJ-45, 1*1000 Base-X SFP (combo)
    • PoE management port1* RJ-45
    • Led Indicators1*PWR Indicator 24*Downlink Port Link Indicators 24*Downlink Port PoE Indicators 2*Uplink Port Link Indicators 1*CCTV Mode Indicator 10*PoE Status Indicators
    • Cable Cat5 or better
    • Dimensions (W*D*H)442mm*285mm*44mm
    • Weight3.8kg
    • Incoming voltage 100~240V AC
    • Energy consumption ≤300W (Full load including PoE)
    • MountingRack/desktop/wall mounted
    • MaterialMetal shell
    • Switch Property
    • Forwarding ModesStore and Forward
    • Switching capacity7.2Gbps / non-blocking
    • Packet forwarding speed5.4Mpps
    • MAC Table4K
    • Packet Buffer2.75Mbit
    • PoE
    • PoE Power Supply TypeEnd-Span
    • PoE standartasIEEE 802.3af/at (PSE)
    • PoE Pin Assignment1/2(+), 3/6(-)
    • PoE Power išvestis46~55V DC
    • PoE Budget30W max for each port, 270W max
    • Standard Conformance
    • Standards ComplianceIEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet
    • EMCFCC 47 CFR Part 15 Class A EN55032 Class A IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV IEC61000-4-3, Level 2: 3V/m IEC61000-4-4, Level 2: 1kV IEC61000-4-5, line to earth: 6kV IEC61000-4-6, Level 2 (0.15MHz~80MHz)
    • LVDEN 62368-1:2014 EN 62328-A11:2017
    • OperatingTemperature: -10℃~50℃ Relative Humidity: 5%~95% (Non-condensation)
    • StorageTemperature: -40℃~75℃ Relative Humidity: 5%~95% (Non-condensation)
    • Certifications CE, FCC
    • PoE ManagementPoE Setting Total Power Status PoE Status and Control
