  •   18 port 16 PoE port switch UTEPO UTP1218-PSB150

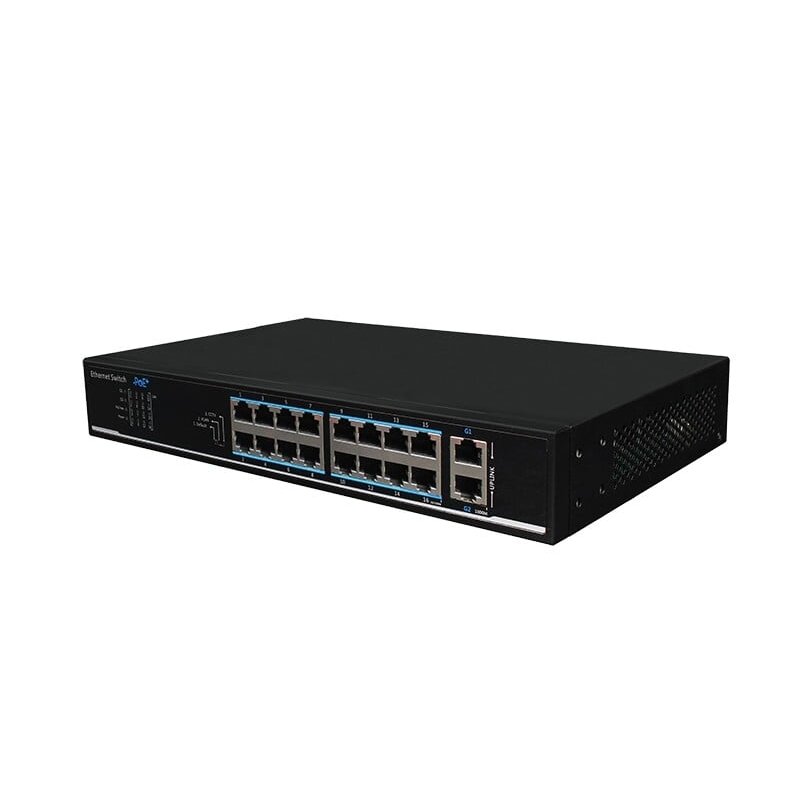

    18 port 16 PoE port switch UTEPO UTP1218-PSB150

    Inquire about this item
    Price 106.49 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • Hardware Specifications
    • Downlink Ports16*10/100Base-TX PoE+ RJ-45 (Auto-MDI/MDI-X)
    • Uplink Ports2*10/100/1000Base-T RJ-45 (Auto-MDI/MDI-X)
    • LED Indicators1* power supply indicator, 1* PoE max indicator16* downlink port indicators, 2*uplink port indicators
    • CableCat5 or better
    • Dimensions (W*D*H)294mm*180mm*44mm
    • Net Weight1.6kg
    • Input Voltage100~240V AC
    • Power Consumption≤15W (Not include PoE)
    • InstallationRack-mounted/wall-mounted
    • MaterialMetal shell
    • Switch Property
    • Object Temperature RangeStore and Forward
    • Switching Capacity7.2Gbps / non-blocking
    • Packet Forwarding Rate5.4Mpps
    • MAC Table8k, supported auto learning
    • Packet Buffer4Mbit
    • PoE
    • PoE deviceEndpoint PSE (Power Sourcing Equipment)
    • PoE StandardIEEE 802.3af/at
    • PoE Pin Assignment1/2(+), 3/6(-)
    • PoE Power Output52V DC
    • PoE Budget30W max for each port, 135W max for whole switch
  • Standard Conformance
  • Standards Compliance IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Flow ControlIEEE 802.3af Power Over EthernetIEEE 802.3at Power Over Ethernet
  • EMC
  • EMC FCC 47 CFR Part 15 Class AEN55032 Class AIEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kVIEC61000-4-3, Level 2: 3V/mIEC61000-4-4, Level 2: 1kVIEC61000-4-5, line to earth: 6kVIEC61000-4-6, Level 2, (0.15MHz~80MHz)
  • LVD
  • LVD EN 62368-1:2014EN 62328-A11:2017
  • Environments
  • OperatingTemperature: -5℃~45℃Relative Humidity: 5%~95% (Non-condensation)
  • Storage Temperature: -40℃~75℃Relative Humidity: 5%~95% (Non-condensation)
  • Certifications
  • CertificationsCE, FCC
