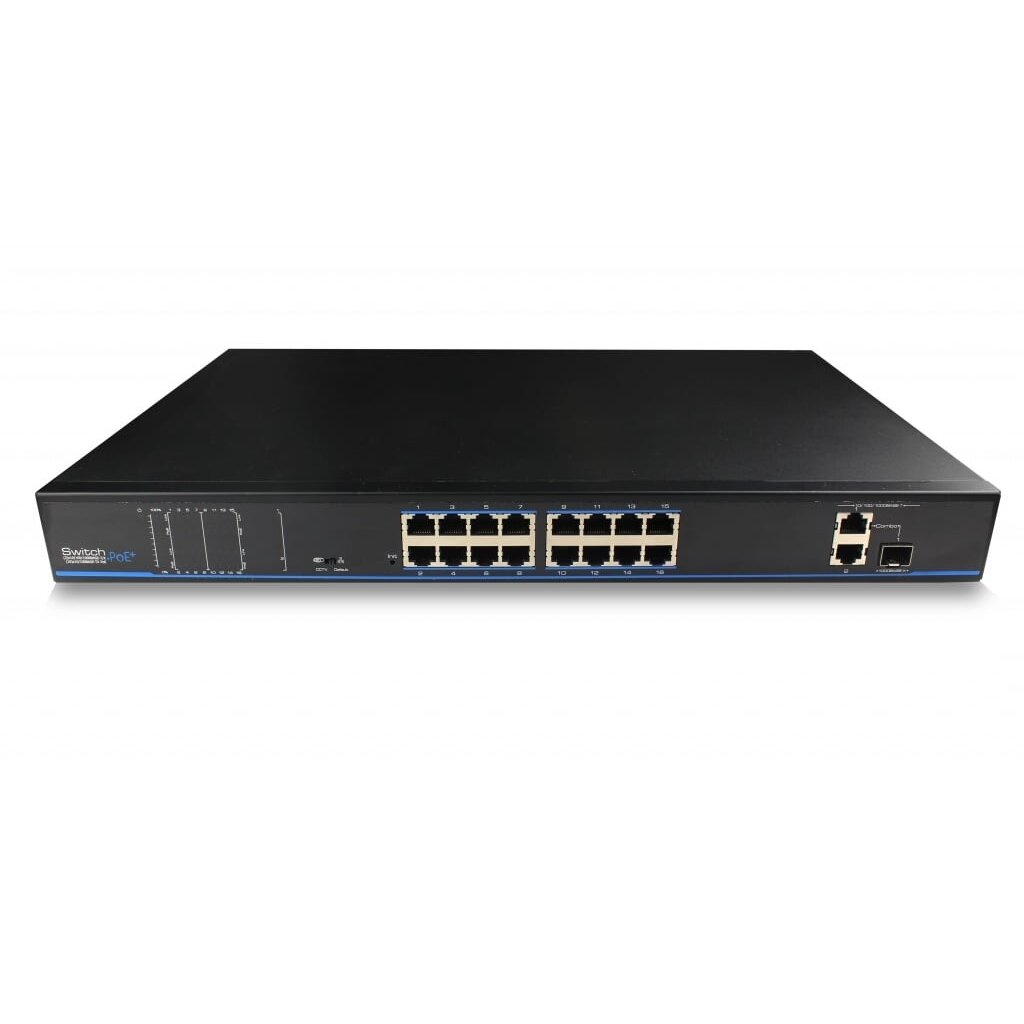

16 ports UTEPO UTP1-SW1602TS-POE
ManufacturerUtepo-
Downstream Ports 16* 10/100Base-TX( PoE) Uplink Ports 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo) Network Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X Switch Capacity 7.2Gbps Throughput 5.36Mpps Switch Processing Scheme Store and Forward Memory Buffer 2.75M MAC Table 4K PoE Standard 802.3af/at(PSE) PsE Type End-span Power Pin Assignment 1/2(+), 3/6(-) PoE Power Output 54V DC , 30 watts max PoE Budge 180 watts max Lightning protection 6KV Execute: IEC61000-4-5 ESD 6KV Contact discharge 8KV Air discharge Execute: IEC61000-4-2 Power Supply 100~240V AC; 50/60Hz Power Dissipation ＜200W(Including PoE) Work temperature -10℃~50℃ Humidity(Non-condensin) 5%-95% Dimension 442mm×207mm×44.5mm Weight 2.69kg Regulator CE, FCC, ROHS
