  •   16 ports, 16 PoE switch UTEPO UTP3-GSW1604TS-P200

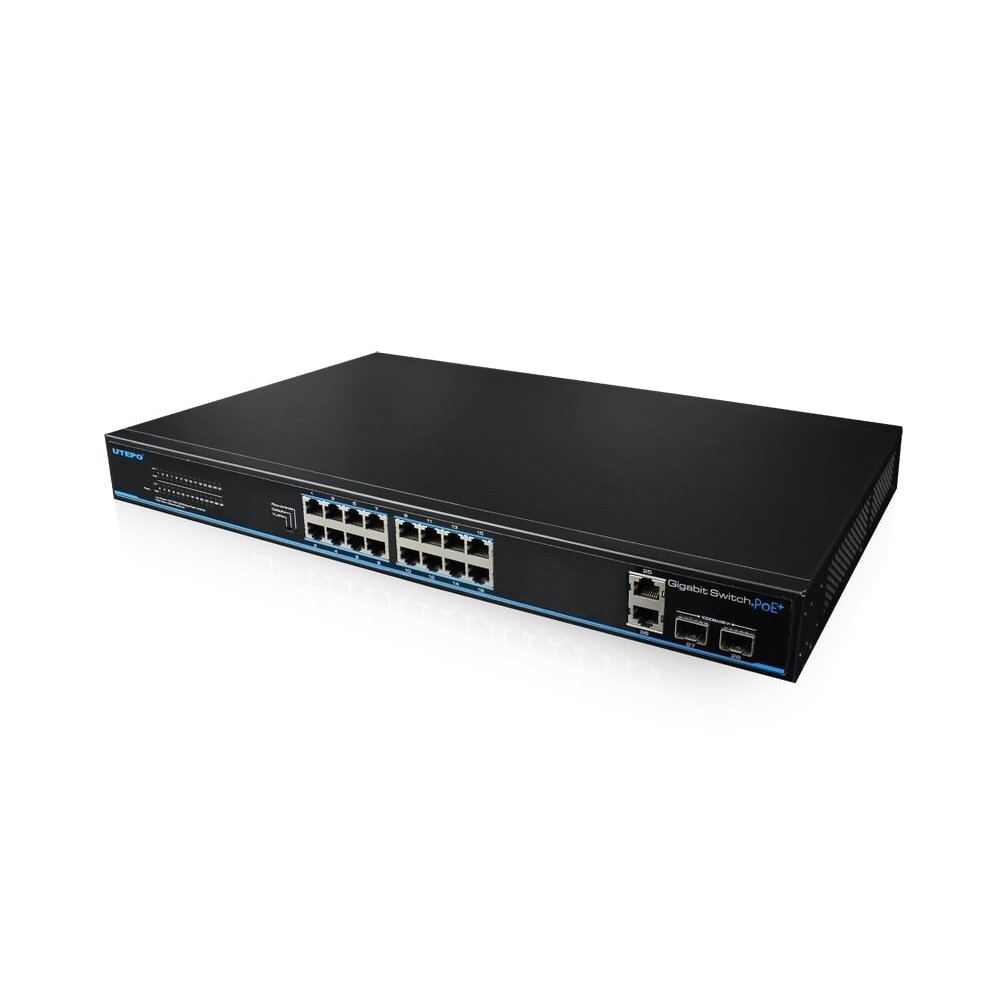

    16 ports, 16 PoE switch UTEPO UTP3-GSW1604TS-P200

    Inquire about this item
    Price 241.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
  • ModelUTP3-GSW1604TS-P200
    Downstream Ports16* 10/100/1000Base-T(24 Ports PoE)
    Uplink Ports2*10/100/1000Base-T and 2*1000Base-X(SFP)
    Network StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
    Switch Capacity40/56/56Gbps
    Throughput28/42/42Mpps
    Switch Processing SchemeStore and Forward
    Memory Buffer4M
    MAC Table8K
    PoE Standard802.3af/at(PSE)
    PsE TypeEnd-span
    Power Pin Assignment1/2(+)，3/6(-)
    PoE Power Output54V DC, 30 watts max
    PoE Budge170 watts max
    Operating modeDefault:All ports can communicate with each other
    VLAN: 1. Downlink ports only communicate with uplink ports;
    2. Restrain network storm under 2Mbps
    Flow control:Switch flow control function is turned off, this mode is suitable for video surveillance transmission
    Lightning protection6KV Execute：IEC61000-4-5
    ESD6KV Contact discharge
    8KV Air discharge
    Execute: IEC61000-4-2
    Power Supply100~240V AC?50/60Hz
    Power Dissipation＜200W(Including PoE)
    Work temperature0℃~40℃
    Humidity(Non-condensin)5%-95%
    Dimension442mm×285mm×44.5mm
    Weight3kg
    RegulatorCE, FCC, ROHS
