  •   16-port switch Cudy GS1016ES2 (managed)

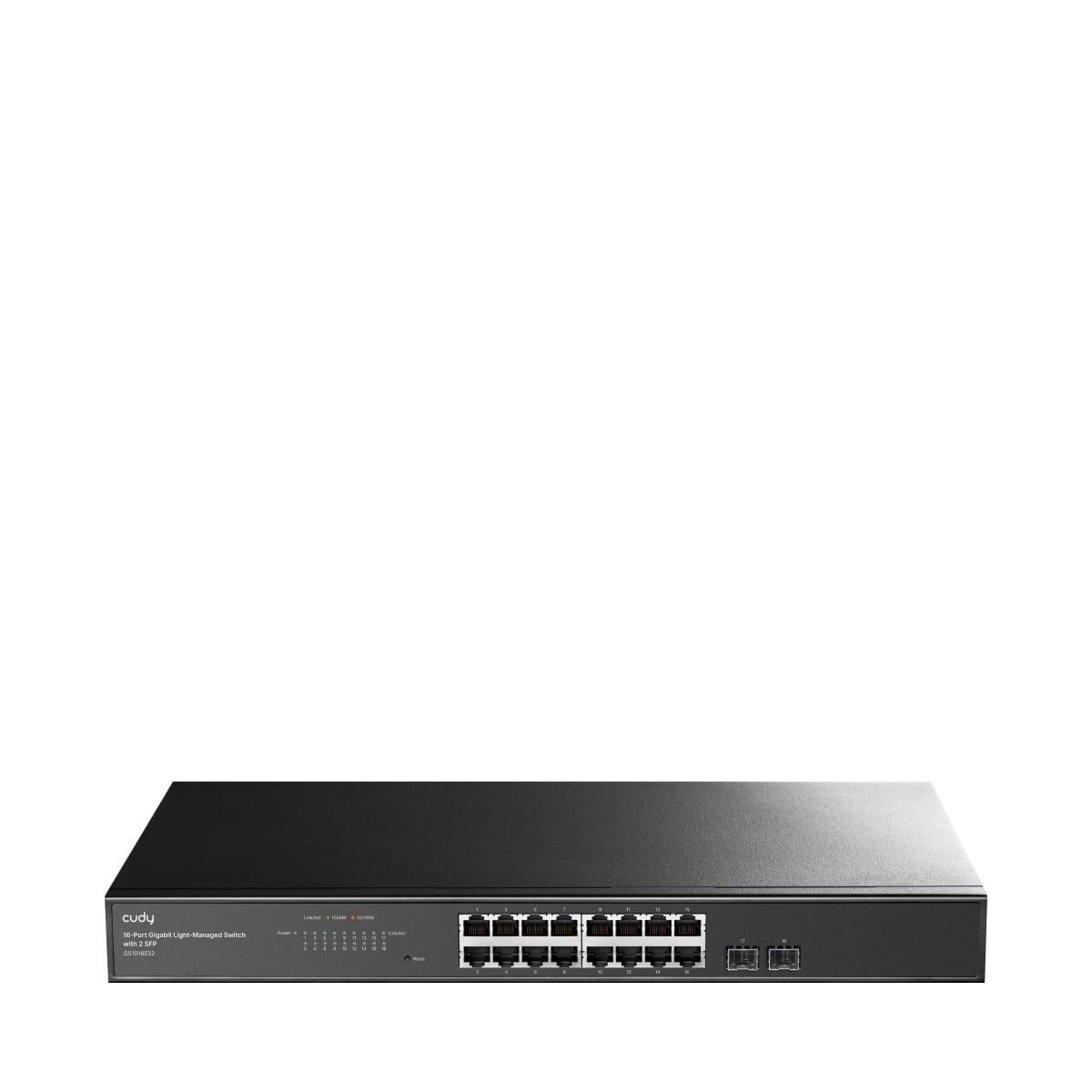

    16-port switch Cudy GS1016ES2 (managed)

    Inquire about this item
    Price 86.93 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionGS1016ES2 1.0
    • Flash/ROM16 MB (128 Mbit) NOR
    • 1.25G SFP Slots2
    • Gigabit RJ45 Ports16
    • Extend Mode PortsConfigurable
    • VLAN Mode PortsConfigurable
    • LEDPower, Speed/Link/Activity of each Ethernet port
    • Physical ButtonsReset Button
    • Max Copper Speed and DistanceCat. 3 or higher: 100 m at 10 Mbps, Cat. 5 or higher: 100 m at 100 Mbps, Cat. 5e or higher: 100 m at 1 Gbps, Cat. 5e or higher: 250 m at 10 Mbps
    • Copper Speed and Distance Note250 m transmission available when port speed is set to 10 Mbps in software
    • Optical Specification and DistanceDepends on installed optical module
    • MAC Address Table8192 entries
    • VLANs4096
    • Max Switching Capacity36 Gbps
    • Max Forwarding Rate26.78 Mpps
    • Jumbo Frame15 KB
    • Packet Buffer4 Mbit
    • Power Input TypeAC Inlet
    • Basic Power SavingYes
    • Power MethodsAC
    • Power Input100–240V AC, 50/60Hz
    • Max Power Consumption7.8 W
    • Idle Power Consumption4.5 W
    • 802.3 Protocols802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3az Energy Efficient Ethernet
    • 802.1 Protocols802.1p QoS/CoS, 802.1q VLAN Bridge Operation, 802.1ab LLDP/LLDP-MED
    • Port ManagementPort On/Off, Port Negotiation Speed, Static Link Aggregation, Port Mirroring, Data Rate Limiting, Jumbo Frame Settings, Storm Control, Traffic Monitoring, MAC Address Management, EEE (802.3az)
    • Port Mirror Sessions4
    • Port Trunk Groups4
    • Max Ports per Trunk Group8
    • L2 FeaturesIGMP Snooping, Loop Prevention, Loop Detection, DHCP Snooping, LLDP Configuration and Neighbors, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS
    • Grounding MethodsThree-Prong Plug, Grounding Point
    • EMSIEC/EN 61000-4-2 Level 3 ESD: Contact 6 kV, Air 8 kV; IEC/EN 61000-4-5 Surge: Power DM 4 kV, CM 4 kV; RJ45 CM 6 kV
    • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
    • Storage Temperature−40 °C to 70 °C (−40 °F to 158 °F)
    • Operating Humidity10% to 90% non-condensing
    • Storage Humidity10% to 95% non-condensing
    • Control MethodsWeb Configuration Interface, SNMP v1/v2, Cudy App
    • Firmware UpgradeLocal Upgrade
    • Reliability FeaturesBackup and Restore
    • Diagnostic ToolsCable Status/Length Diagnosis, Ping
    • LanguagesEnglish, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
    • Dimensions440 × 180 × 44 mm (17.32 × 7.09 × 1.73 in)
    • Product Weight1691.5 g (59.67 oz)
    • Casing MaterialMetal
    • InstallationDesktop, Rackmount via Brackets
    • Package ContentGS1016ES2, Power Cord, Mounting Kit, Installation Guide
