  •   12 ports, 8 PoE ports switch UTEPO UTP6312S-PSB

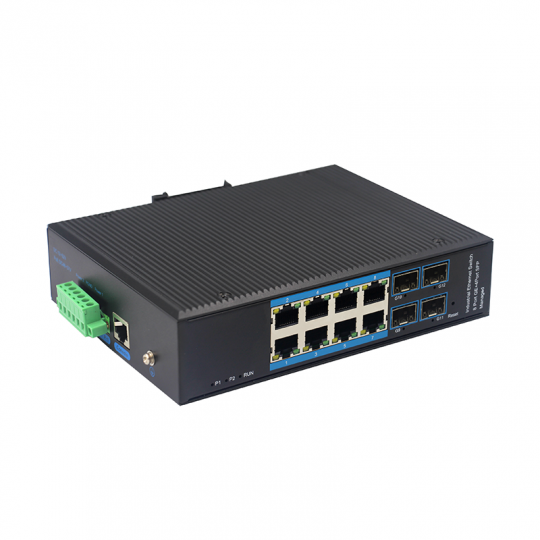

    12 ports, 8 PoE ports switch UTEPO UTP6312S-PSB

    Inquire about this item
    Price 304.01 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • Interface
    • Downlink Ports 8*10/100/1000Base-T PoE+ RJ-45
    • Uplink Ports 4*100/1000Base-X SFP
    • Console Port 1*RJ-45 console port
    • Init Button Short press to restart the switch long press ＞5s to initialize the system
    • Led Indicators 2*power indicators 1*system indicator
    • Cable Cat5 or better
    • Dimensions (W*D*H) 176mm*136mm*46.5mm
    • Net Weight 0.9kg
    • Input Voltage Power 1 (Main): 48~57V DC Power 2 (Backup): 48~57V DC
    • Power Consumption ≤10W (Full load, not including PoE)
    • InstallationDIN-rail
    • MaterialMetal shell
    • Switch Property
    • Forwarding ModesStore and Forward
    • Switching Capacity24Gbps / non-blocking
    • Packet Forwarding Rate17.9Mpps
    • MAC Table 8k, supported auto learning
    • Packet Buffer4Mbit
    • Jumbo frame9kB
    • PoE
    • PoE device Endpoint PSE (Power Sourcing Equipment)
    • PoE StandardIEEE 802.3af/at (PSE)
    • PoE Pin Assignment1/2(+), 3/6(-)
    • PoE Power Output 46~55V DC
    • PoE Budget 30W max for each port 240W max for whole switch
    • Standard Conformance
    • Standards Compliance IEEE 802.1p Priority Queuing IEEE 802.1Q VLAN tagging IEEE 802.1D Spanning Tree Algorithm IEEE 802.1w Rapid Spanning Tree IEEE 802.1x Authentication IEEE 802.3ad Link Aggregation IEEE 802.3x Flow Control IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet
    • EMC FCC 47 CFR Part 15 Class A EN55032 Class A IEC61000-4-2，Level 3: Contact Discharge: ±8kV, Air Discharge: ±12kV IEC61000-4-3，Level 3: 10V/m IEC61000-4-4，Level 2: Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5，Power Port: Line to Line ±2kV, Line to Earth ±4kV; Data Port: ±2kV IEC61000-4-6，3V (10kHz-150kHz); 10V (150kHz-80MHz)
    • LVD EN 62368-1:2014 EN 62328-A11:2017
    • Operating Temperature: -40℃~75℃ Relative Humidity: 5%~95% (Non-condensation)
    • Storage Temperature: -40℃~85℃ Relative Humidity: 5%~95% (Non-condensation)
    • Certifications CE, FCC
